ABB EasyLine EL3000 Manual

EL3000 CONTINUOUS GAS ANALYZERS | CI/EL3000-EN REV. C 87

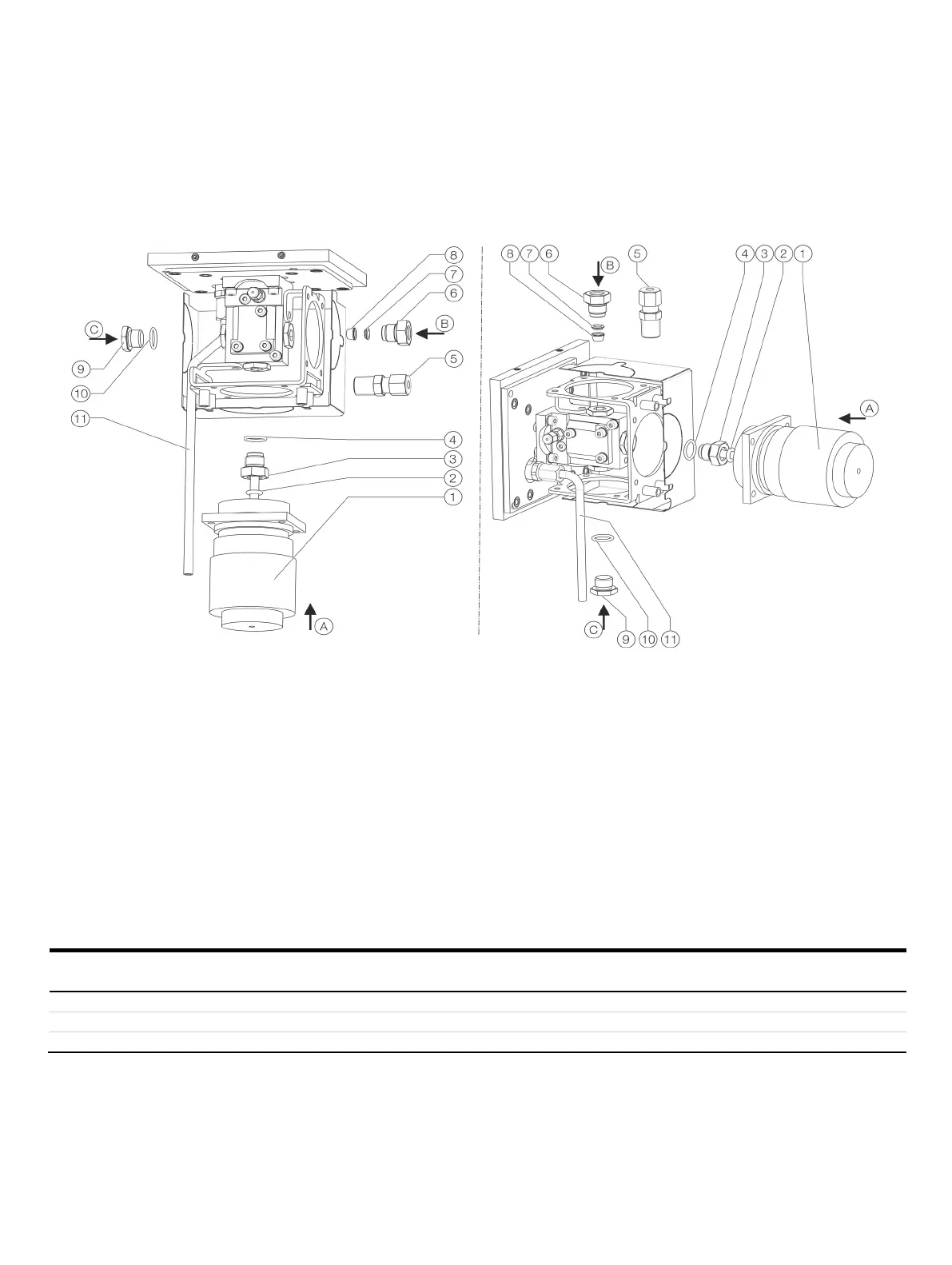

Connection of the sample gas line to the heated sample gas connection
Wall-mount housing (view from bottom right) 19” housing (view from top left)
1
Heated sample gas line
(tube with inside/outside diameter 4 / 6 mm)
2
O-ring 6.02 × 2.62
3
Socket
4
O-ring 12.42 × 1.78
Connection of an additional sample gas line
(tube with outside diameter 6
mm) either with:
5
Screw-in connector G¼”
Alternatively, with:
6
Socket
7
Wedge ring
8
Clamping ring
Closure:
9
Screw plug
j
O-ring 12.42 × 1.78
k
Waste gas tube
Figure 36: Connecting the sample gas line
Sample gas inlets
Sample gas line connection
on 19” housing
on wall-mount housing
A
from the rear
from below
B
from above
from the right
C
from below
Not possible
– the sample gas inlet must always be closed
