EL3000 CONTINUOUS GAS ANALYZERS | CI/EL3000-EN REV. C 89

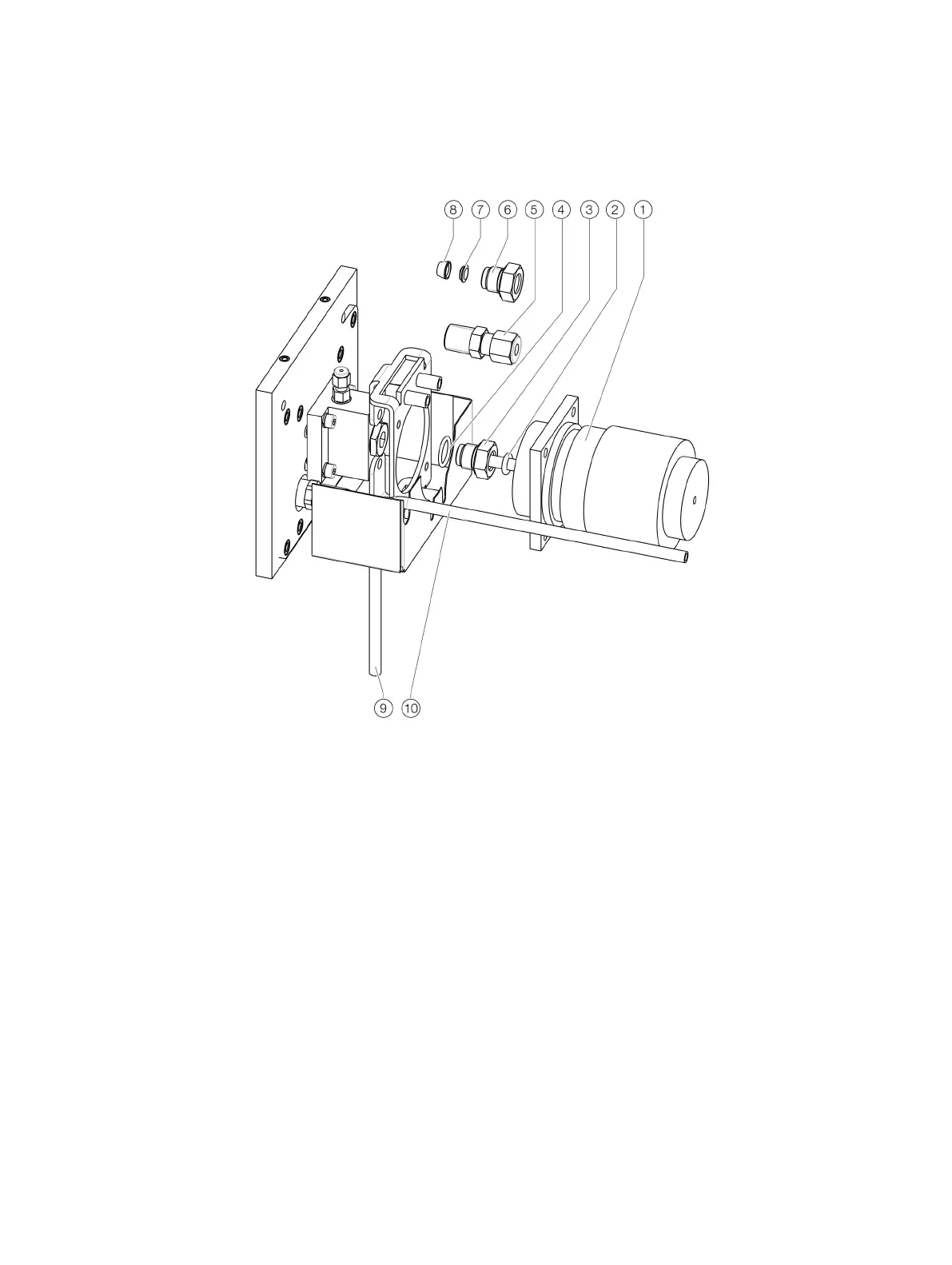

Connection of the sample gas line to the unheated sample gas connection
1
Sample gas line (heated or unheated, PTFE or stainless steel tubing with
a 4/6 mm inside/outer diameter)
Connection either with:
2
O-ring 6.02 × 2.62
3
Socket
4
O-ring 12.42 × 1.78
Alternatively, with:
5
Screw-in connector G¼”
Alternativel
y, with:
6
Socket
7
Wedge ring
8
Clamping ring
9
Exhaust gas tube for 19” housing
j
Exhaust gas tube for wall-mount housing
Figure 37: Connection of the sample gas line to the 19″ housing (view from top left)
