92 EL3000 CONTINUOUS GAS ANALYZERS | CI/EL3000-EN REV. C
… 5 Electrical connections
… Model EL3040

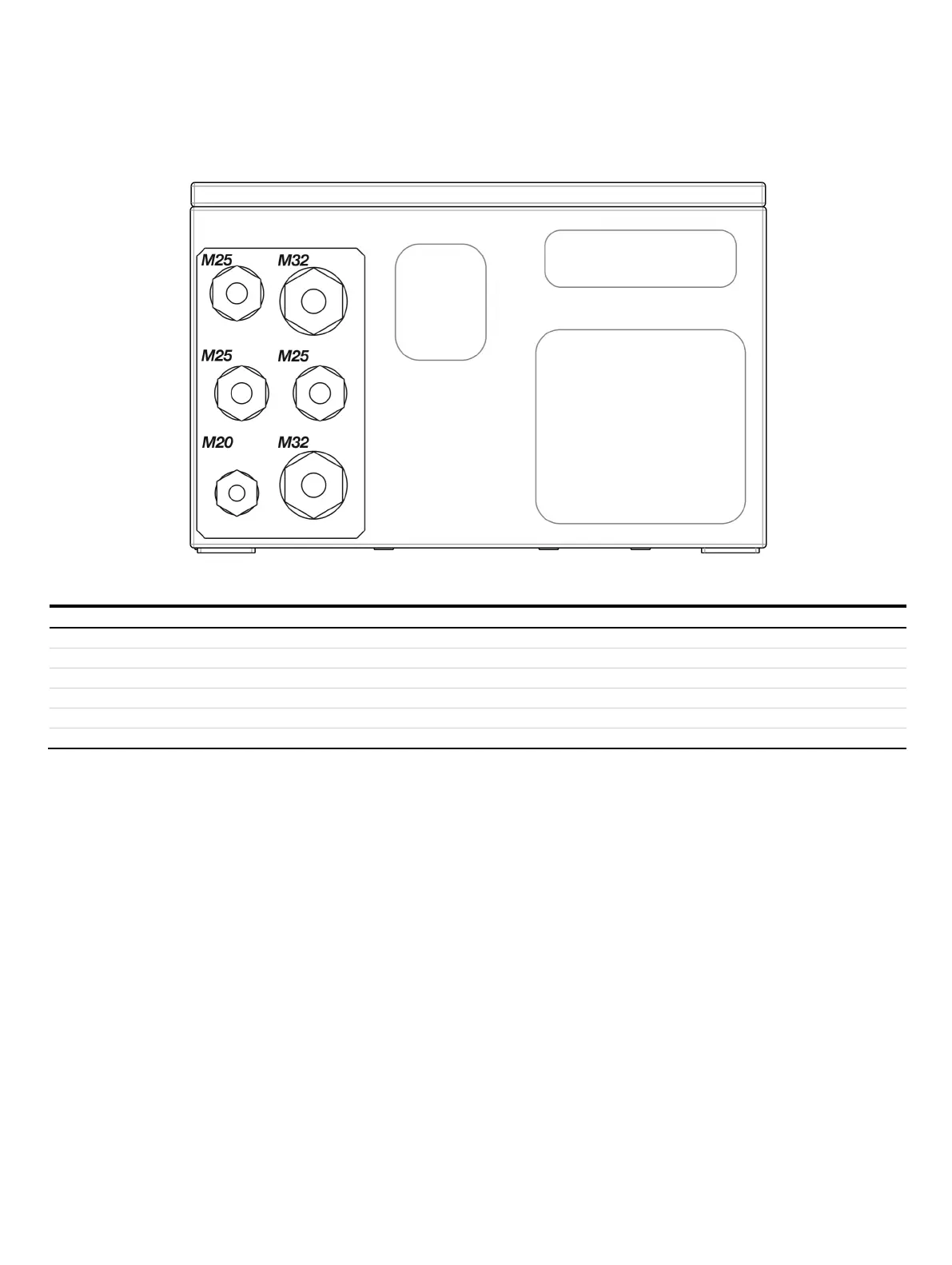

Figure 40: Cable glands model EL3040
Type
Application (recommended)
Permissible cable diameter
M20
Power supply
5
to 13 mm
M25
Modbus / Profibus
8 to 17 mm (insert 5 × 4 mm)
M25
Network
8
to 17 mm
M25
3 × analog outputs
8 to 17 mm (insert 3 × 7 mm)
M32
Digital inputs/outputs
12
to 21 mm
M32
Digital inputs/outputs
12 to 21 mm
