66 EL3060 CONTINUOUS GAS ANALYZERS | OI/EL3060-EN REV. A

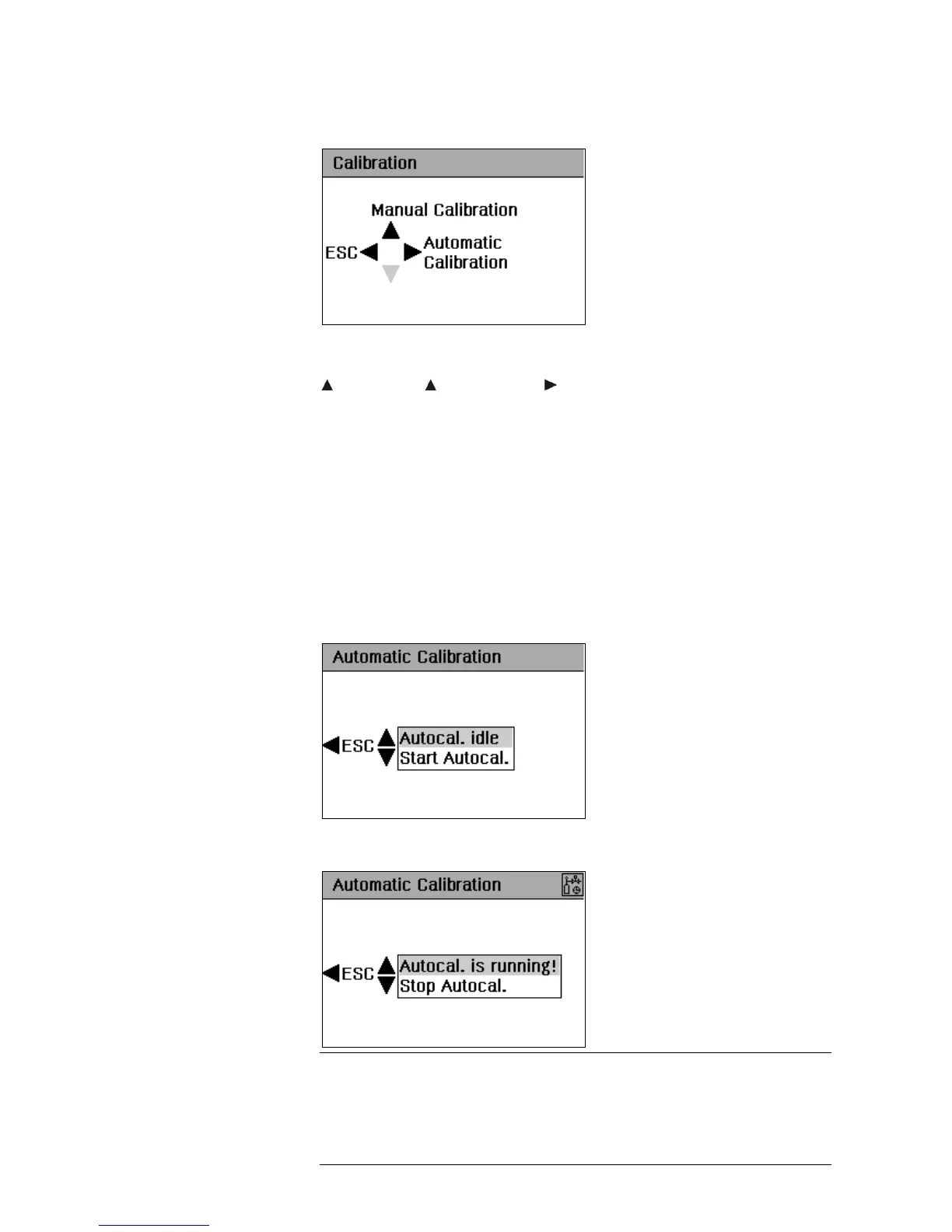

Automatic calibration: Manual start
Menu path
Operation Calibration Automatic Calibration
Wait until the warm-up phase has ended
The gas analyzer may not be calibrated until the warm-up phase has been
concluded.
Duration of the warm-up phase:
Uras26: approx. ½ hour without, approx. 2.5 hours with thermostat
Magnos206: approx. 2 hours
Magnos28: approx. 2 to 4 hours
Caldos27: approx. ½ hour
Caldos25: 1 to 4 hours, depending on the measuring range
Start automatic calibration manually
Abort automatic calibration manually
NOTE
If the automatic calibration is aborted, the analyzer is in an undefined state
(with respect to the calibration). For example, the zero-point calibration may
have been completed and calculated, but the end-point calibration has not
yet been carried out. As a result, the automatic calibration must be restarted
after it has been aborted and allowed to run through to the end.
