42 EL3060 CONTINUOUS GAS ANALYZERS | OI/EL3060-EN REV. A

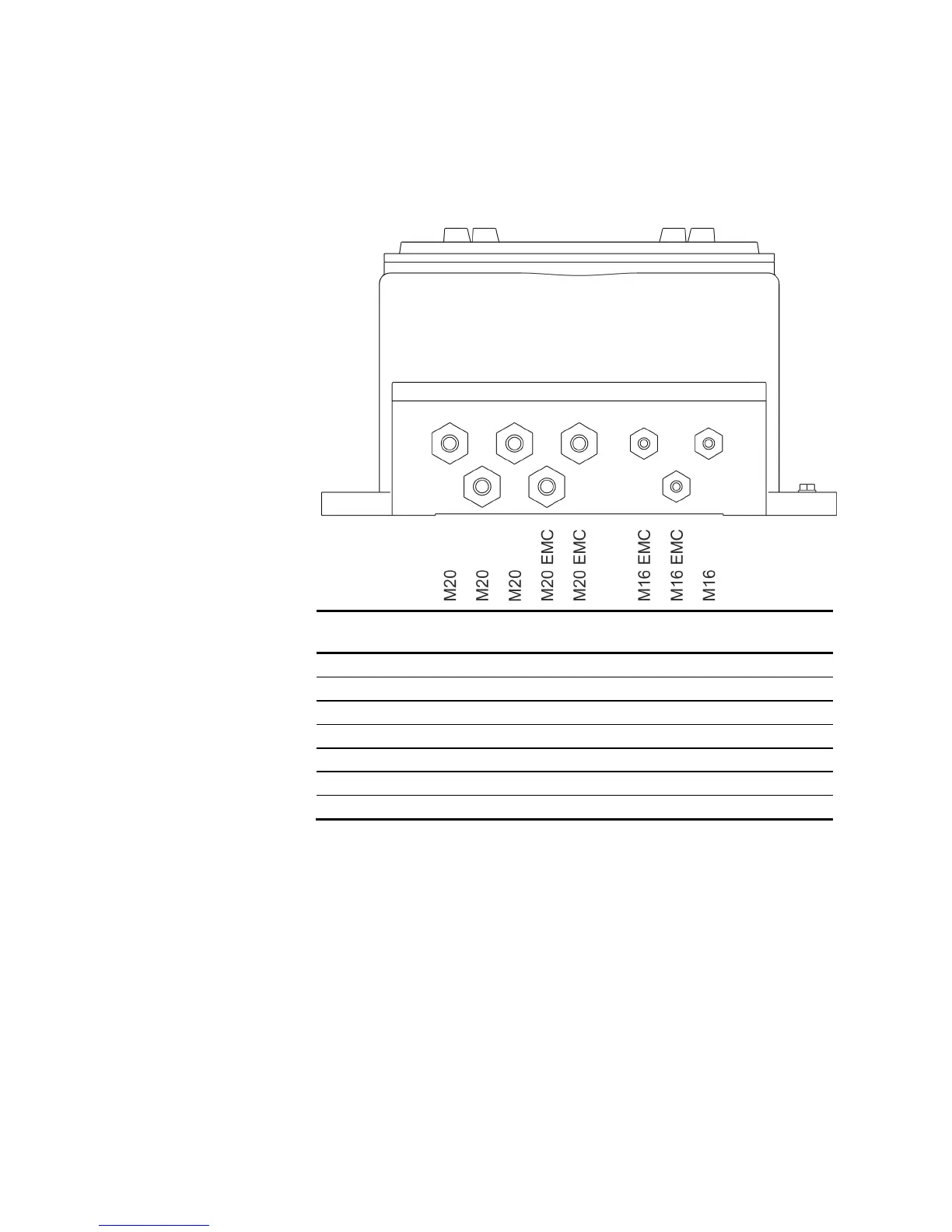

Assignment of the connecting cables to the screwed cable glands
The shielded connection cables for Modbus, Profibus and Ethernet as well as
for the data transmission and the power supply of the analyzer unit
EL3060-Uras26 must be fed into the terminal housing through the EMC cable
glands with clamping insert for the braided shield (M16 EMC and M20 EMC,
see the following overview).
Connecting cable Screwed cable
gland
Permissible external
diameter of cable
Digital inputs/outputs M20 6 to 12 mm
Analog outputs M20 6 to 12 mm
EL3060-Uras26 data transmission M20 EMC 7 to 12 mm
EL3060-Uras26 power supply M20 EMC 7 to 12 mm
Modbus, Profibus M16 EMC 3 to 7 mm
Ethernet M16 EMC 3 to 7 mm
Gas analyzer power supply M16 4 to 8 mm
