56 EL3060 CONTINUOUS GAS ANALYZERS | OI/EL3060-EN REV. A
Set the IP address in the computer
Start – Control Panel – Network and Sharing Center – Change adapter set-
tings – Right click on "Local Area Connection" – Properties: Select "Internet

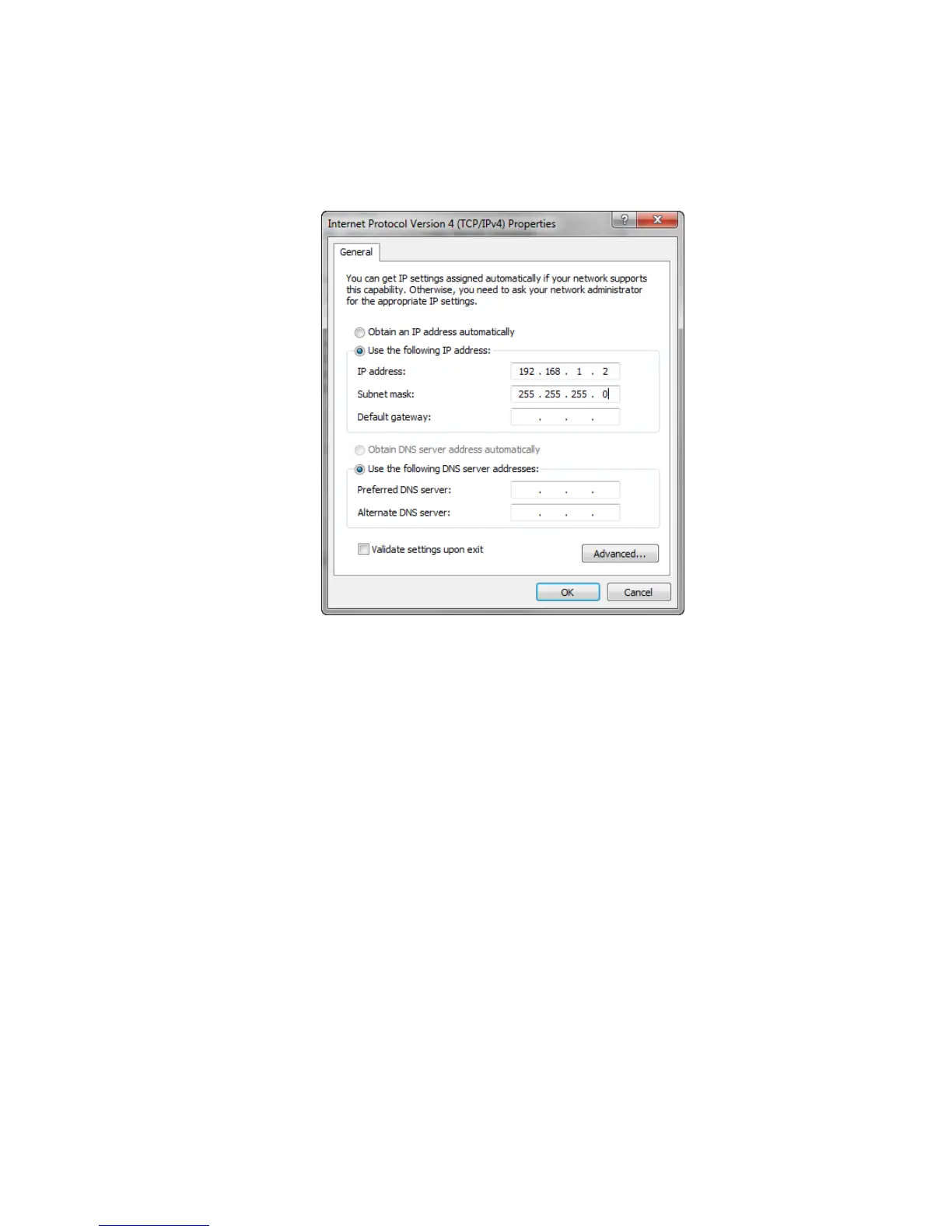

Protocol Version 4 (TCP/IPv4)" – Properties – "General" tab: Use the follow-
ing IP address: – Enter IP address (see the following example).
Establish and test the Ethernet connection
Cable
Point-to-point connection: Twisted-pair cable with RJ45 connectors, termi-
nal layout: 1–3, 3–1, 2–6, 6–2
Connection via an Ethernet network: twisted-pair cable with RJ45 connect-
ors
The cables are standard Ethernet cables and are not part of the scope of
supply and delivery of the gas analyzer.
Test the Ethernet connection
To test the Ethernet connection, enter the following in the computer in
"Start – Execute…": "ping
IP address
" (with
IP address
= IP address of the
gas analyzer). If the connection is OK, the gas analyzer reports "Answer from
IP address
: Bytes=32 Time<10ms TTL=255" (the numbers are de-
vice-specific). In the case of the message "Request timed-out", the connec-
tion is not OK.
The network name can also be entered instead of the IP address.
