ABB Endura AZ20 series Maintenance Guide

Combustion Oxygen Monitor
Endura AZ20 Series Probe 8 Illustrated Parts List – Transmitter
IM/AZ20M–EN Rev. B 45
8 Illustrated Parts List – Transmitter
8.1 Cartridge 8.2 AZ20 Integral (Type 3) Probe Backplane
8.3 AZ20 Remote (Type 4) Probe Backplane
Item Description Kit Components Replacement Procedure
1 Cartridge Table 8.1 Refer to Section 6.1, page 36
2 Integral (Type 3) probe backplane Table 8.2 Refer to Section 6.2, page 38
3 Remote (Type 4) probe backplane Table 8.3 Refer to Section 6.3, page 39

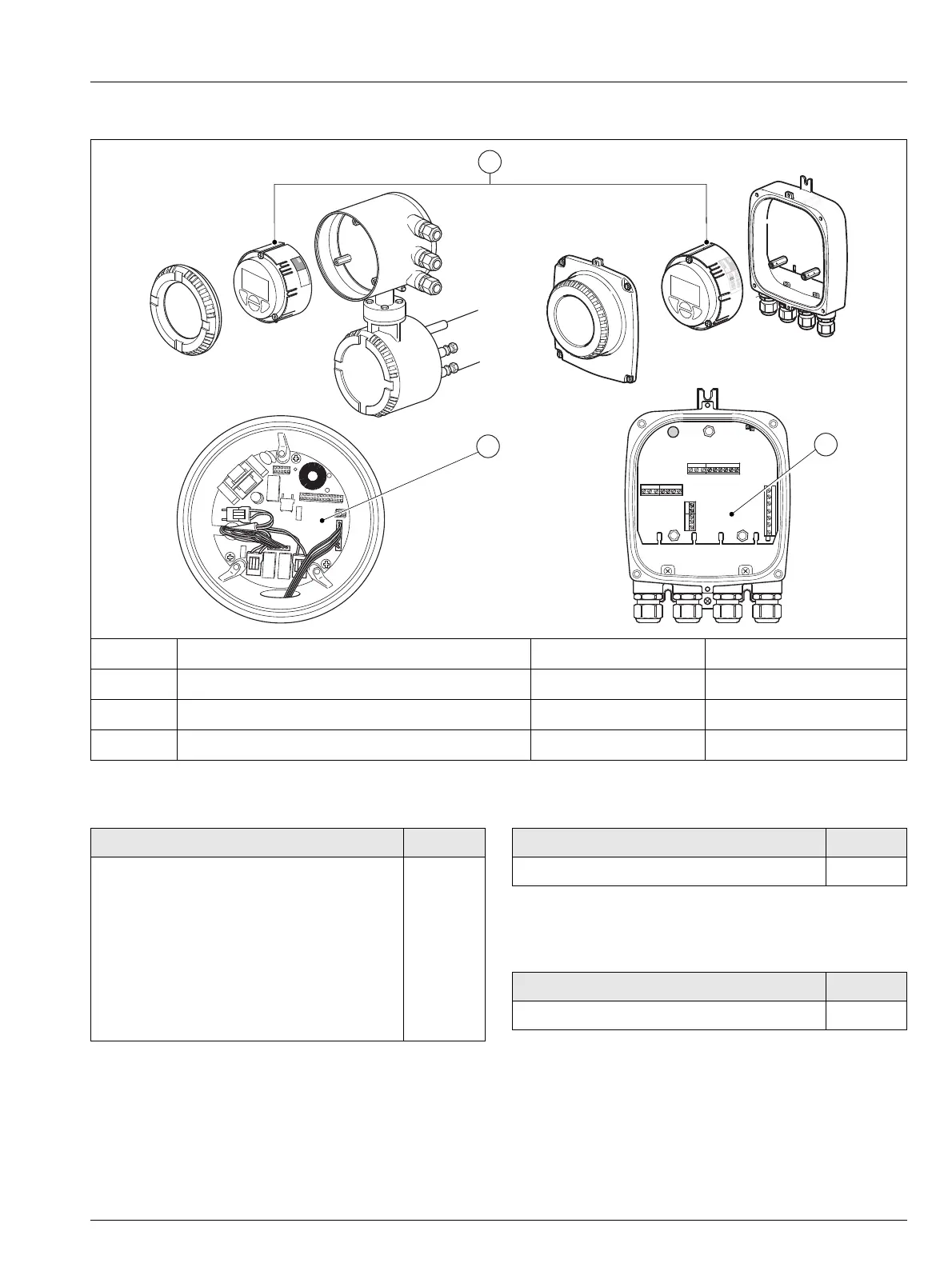

Fig. 8.1 AZ20 Transmitter Replacement Kits
3
2
1
Item Quantity
Replacement cartridge.
Replacement cartridge options comprise:
Standard cartridge
(kit part no. AZ200 750)
Standard cartridge, plus analog outputs
(kit part no. AZ200 751)
Standard cartridge, plus digital input / output
(kit part no. AZ200 752)
1
Table 8.1 Cartridge Replacement Kit
Item Quantity
AZ20 integral (Type 3) probe backplane 1
Table 8.2 AZ20 Integral (Type 3) Probe Backplane
Replacement Kit – Part No. AZ200 757
Item Quantity
AZ20 remote (Type 4) probe backplane 1
Table 8.3 AZ20 Remote (Type 4) Probe Backplane
Replacement Kit – Part No. AZ200 758
