1.4 Layout and function of the turbocharger

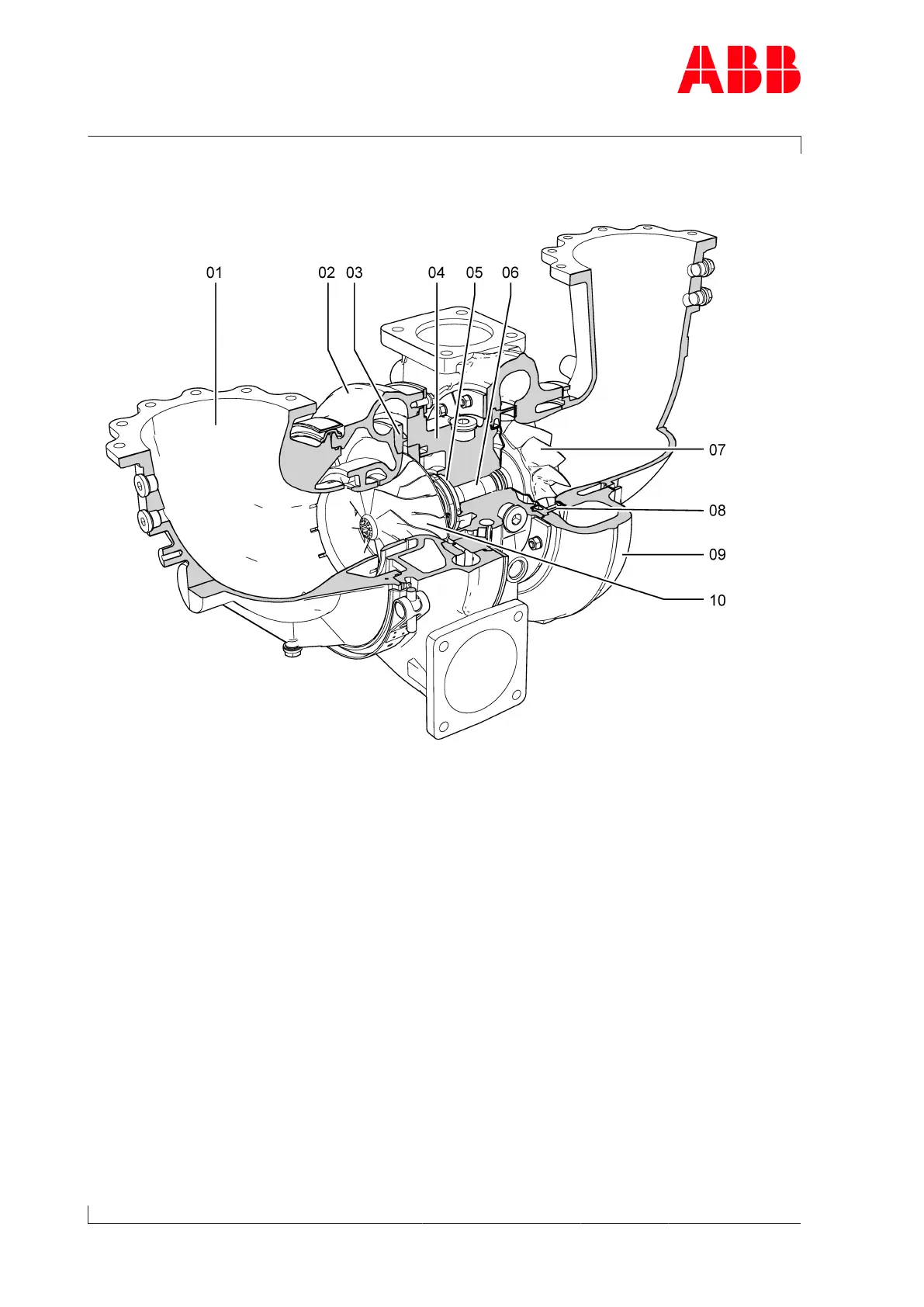

Fig.1: Layout and function of the turbocharger
01 Air suction branch / filter silencer 06 Plain bearing bush
02 Compressor casing 07 Turbine
03 Diffuser 08 Nozzle ring
04 Bearing casing 09 Turbine casing
05 Axial thrust bearing 10 Compressor wheel
