9.7 Removing nozzle ring

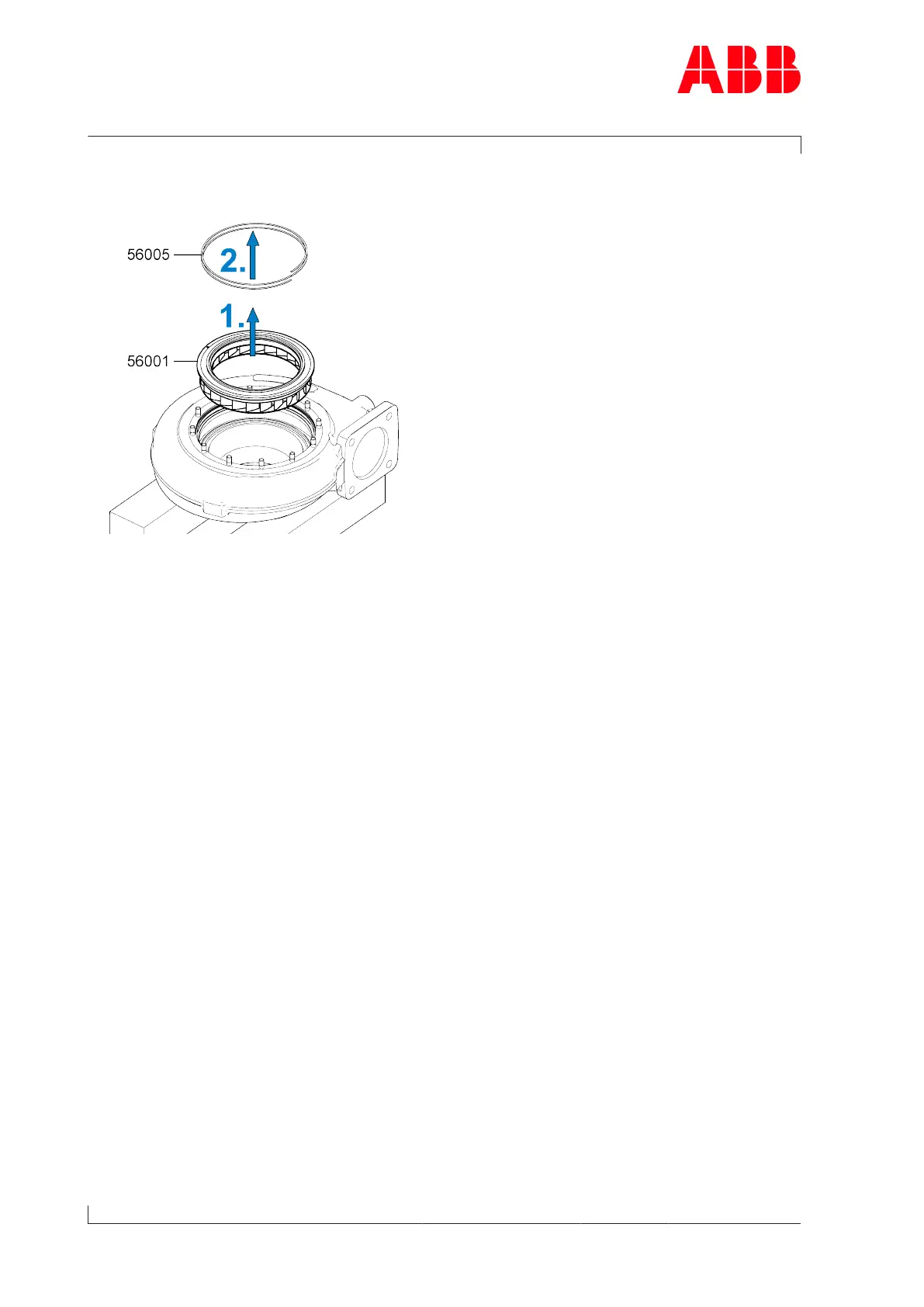

Fig.26: Removing the nozzle ring
1. Remove the nozzle ring(56001) vertically.
2. Remove the lamellar sealing ring (56005).
