9.17 Installing air inlets

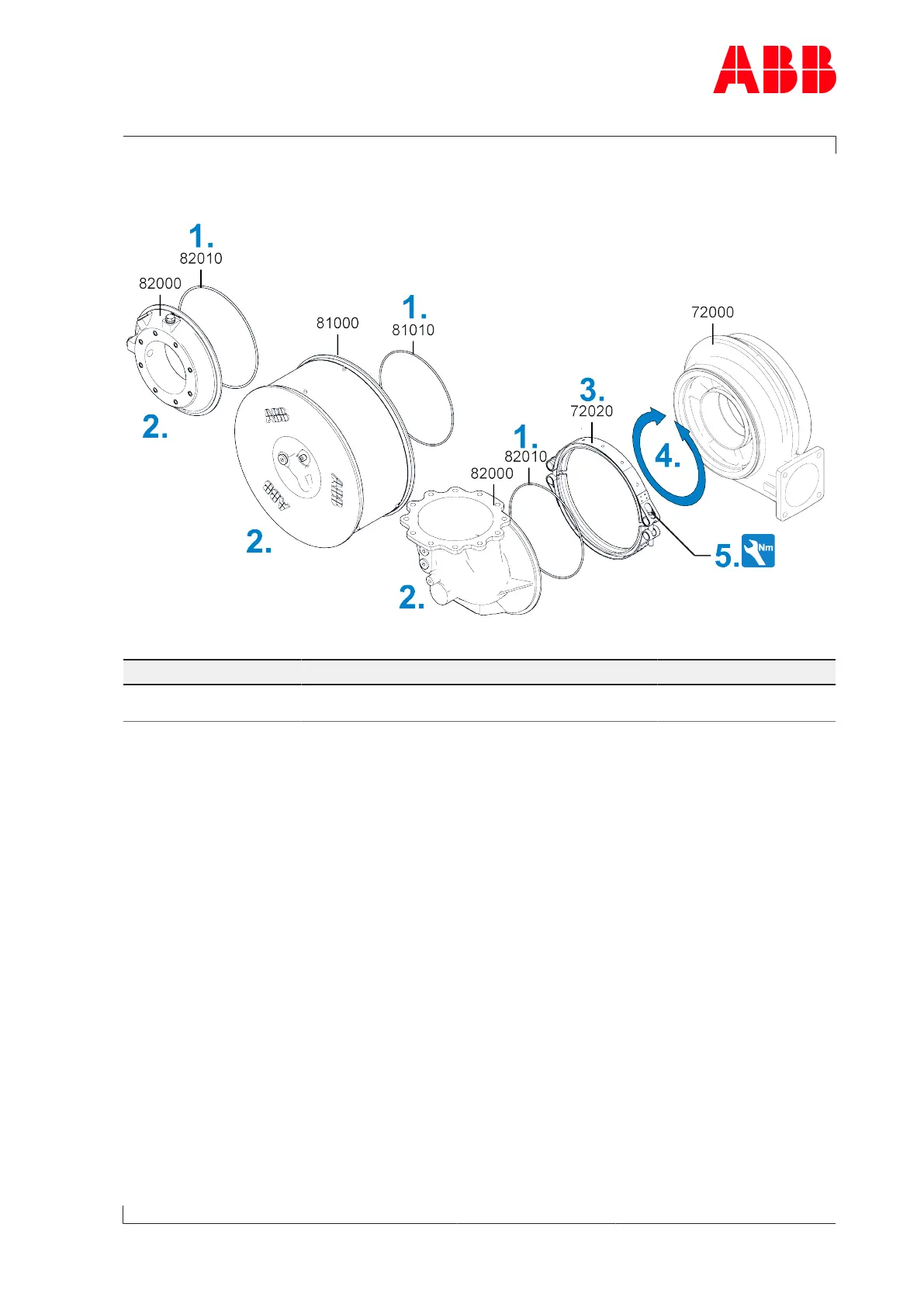

Fig.37: Installing the air inlets
Part number TPS44 TPS48 TPS52
72020 M10
30Nm
M10
30Nm
M10
30Nm
Table40: Tightening torque (72020)
1. Fit the new O-ring(81010/ 82010) to the filter silencer(81000) or the air suction
branch(82000).
2. Manually position the filter silencer(81000) or the air suction branch(82000) on the com-
pressor casing(72000).
3. Fit the V-clamp(72020).
4. Align the casing position of the filter silencer(81000) or the air suction branch(82000) to
the marking.
5. Tighten the V-clamp(72020).
