2.3.2 Fitting threaded rods

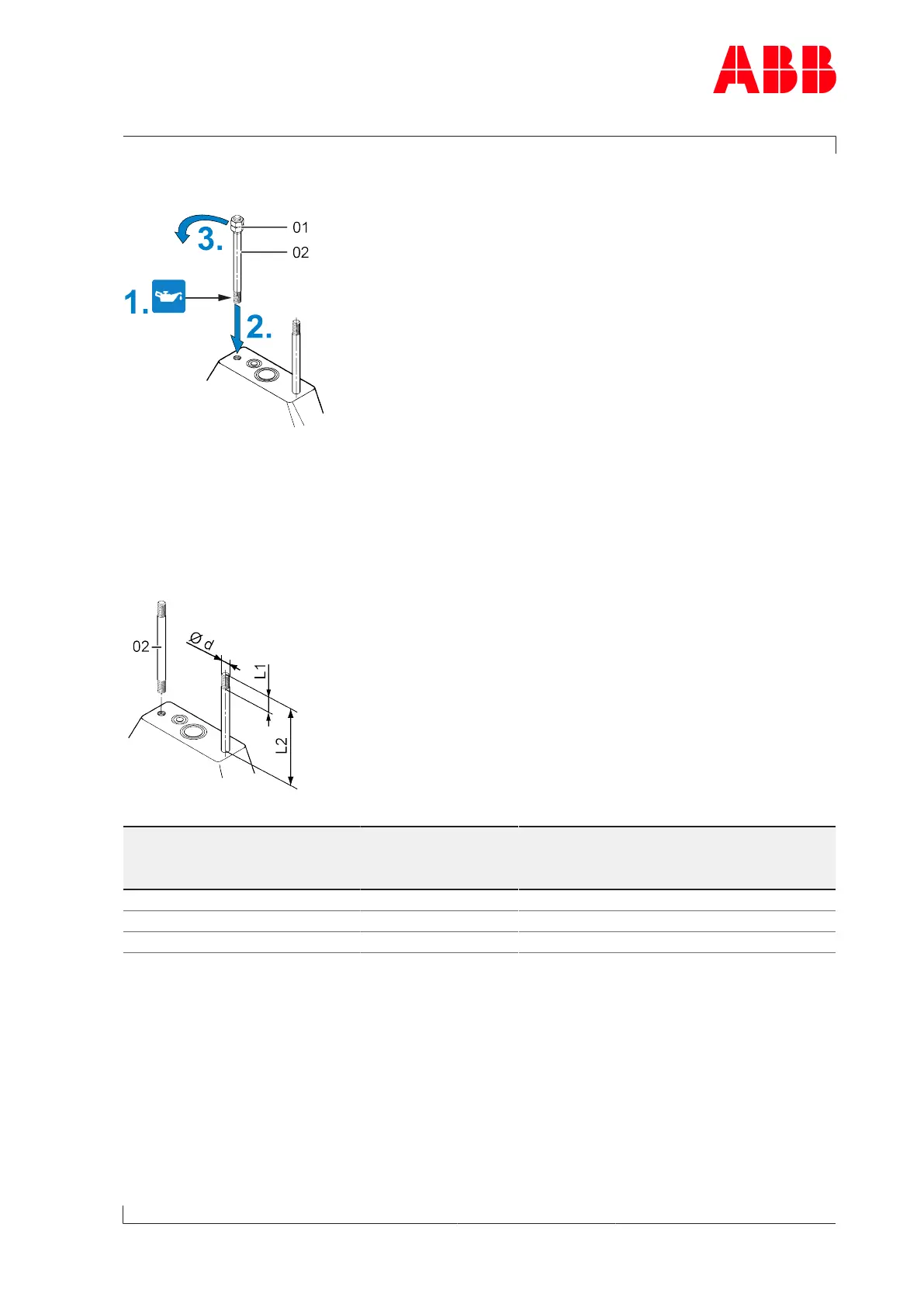

Fig.7: Inserting threaded rods into the bracket
1. Lightly oil the surfaces of the threaded rods (02) to be screwed in.
2. Screw the threaded rods into the bracket with the aid of locknuts (01).
3. Remove nuts(01) again.
Requirements for the threaded rods (02)
Fig.8: Requirements for threaded rods
Product Diameter
Threaded rod
[mm]
Material
DIN / ISO 898
(Part 1)
Thread length
L1[mm]
Length of threaded
rod
L2 [mm]
TPS44 Ø 16 / M16 10.9 / 12.9 ≥ 30 150
TPS48 Ø 16 / M16 10.9 / 12.9 ≥ 30 170
TPS52 Ø 20 / M20 10.9 / 12.9 ≥ 30 195
Table4: Requirements for threaded rods
Fastening material scope of delivery
The threaded rods and nuts for fastening the turbocharger on the bracket are not included
in the ABB Turbo Systems scope of delivery. These parts depend on the version of the en-
gine-side bracket.
