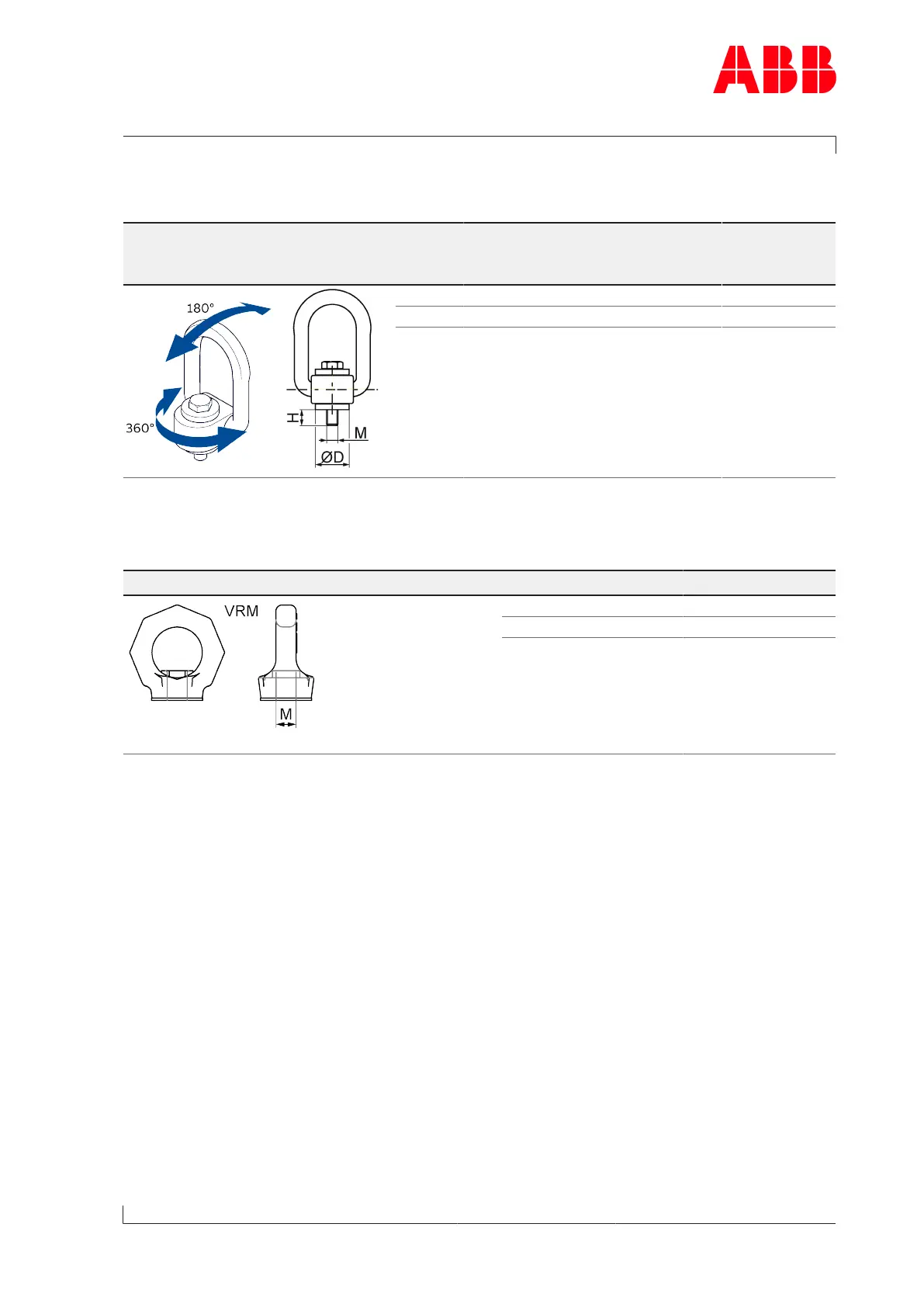

One swivel lifting eye (S) is required to safely lift this turbocharger. This is not included in
the ABB Turbo Systems scope of delivery.
Swivel lifting eye (S) to be used Product Thread Length
H[mm]
Diameter
D[mm]
Minimum load
limit
[kg]
TPS44 M8 ≤12 ≤25 300
TPS48 M8 ≤12 ≤25 300
TPS52 M10 ≤15 ≤25 400
Table30: Swivel lifting eye (S) to be used
Two ring nuts are required for safer lifting of the cartridge group, which are not included in
the ABB Turbo Systems scope of delivery.
Ring nuts to be used (VRM) Product Thread
Starpoint ring nut VRM
TPS44 M16
TPS48 M16
TPS52 M20
Table31: Ring nuts to be used
