9.13 Fitting the turbine casing
Fitting the turbine casing

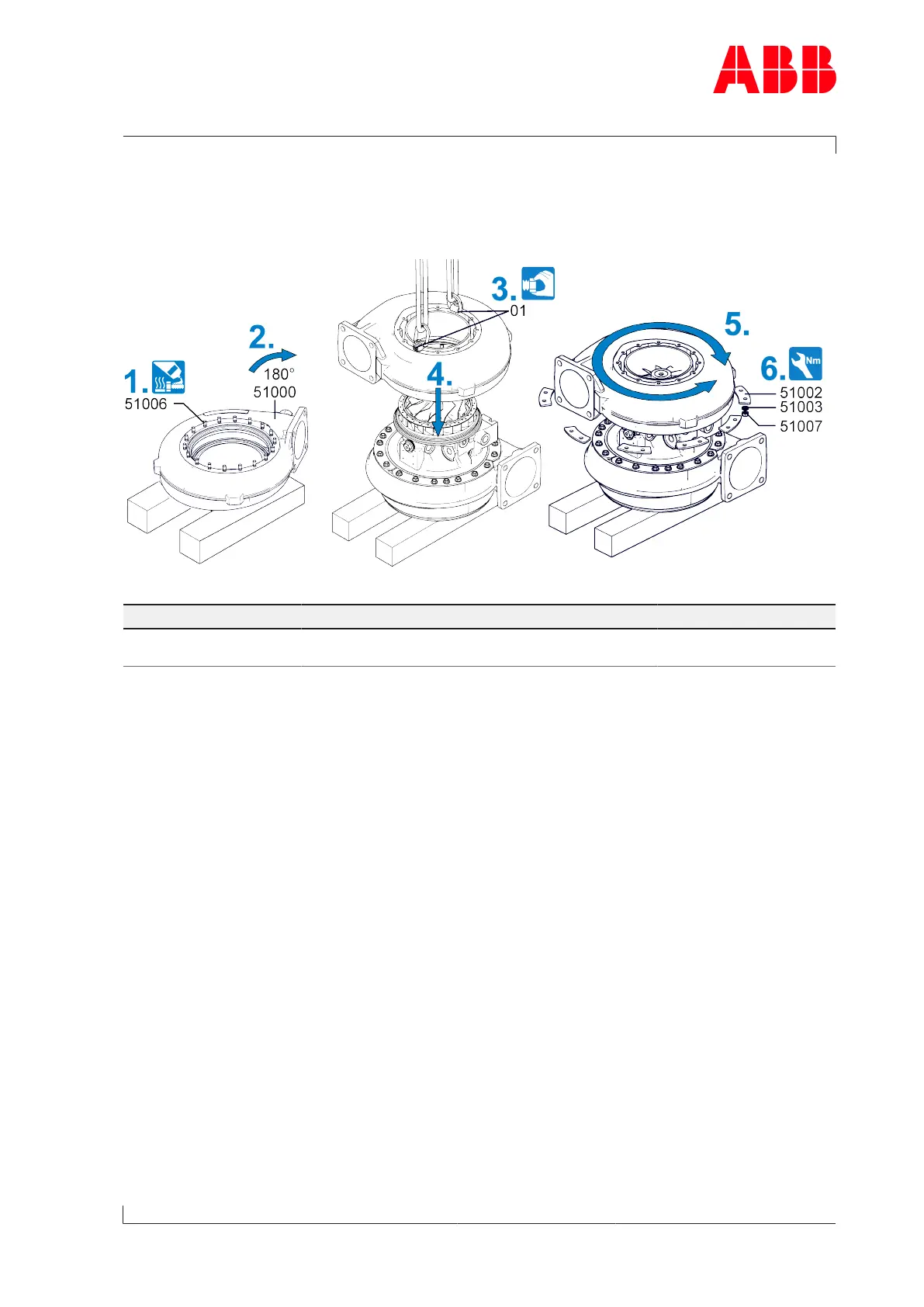

Fig.33: Fitting the turbine casing
Part number TPS44 TPS48 TPS52
51007 M8
30Nm
M8
30Nm
M10
60Nm
Table37: Tightening torque (51007)
1. Coat the threads of the studs(51006) with high-temperature grease.
2. Turn the turbine casing (51000) by 180°.
3. Fit two swivel lifting eyes (01) on the turbine casing. Secure lifting gear to the swivel lift-
ing eyes.
4. Place the turbine casing onto the cartridge group.
5. Align turbine casing to the marking.
6. Install the fastening strips(51002) with Verbus Ripp® washers(51003) and hexagon
nuts(51007). Observe the tightening torque.
