Operation Manual / 4 Product description / TPS44-H.. - TPS52-H..
9 Dismantling and fitting / 9.14 Rotating the turbocharger
© Copyright 2017 ABB. All rights reserved. HZTL4037_EN Revision E July 2017
9.14 Rotating the turbocharger
Rotating the turbocharger

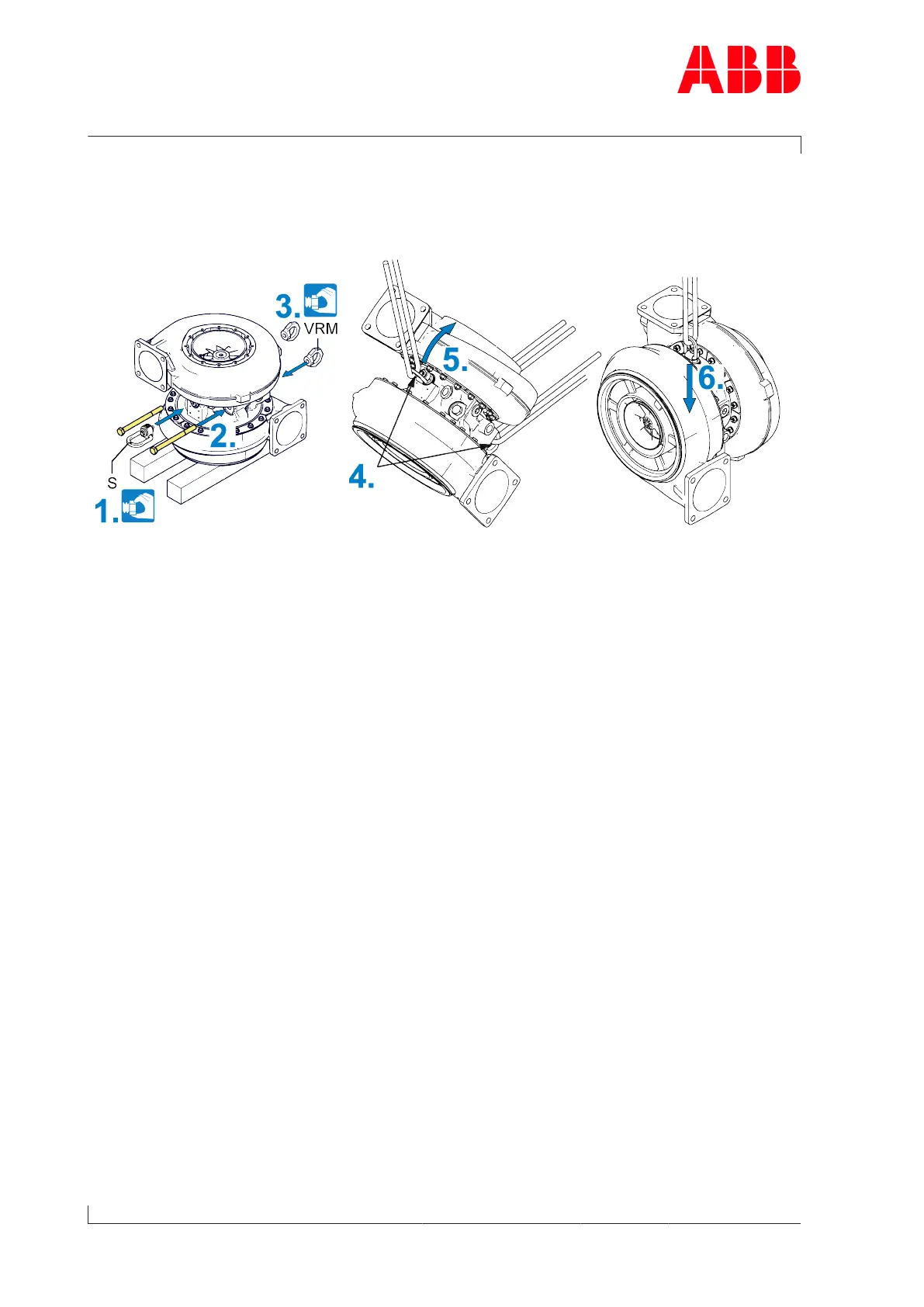

Fig.34: Rotating the turbocharger
1. Fit swivel lifting eye (S).
2. Insert screws from the service support.
3. Fit ring nuts(VRM).
4. Attach lifting gear.
5. Elevate and rotate the turbocharger.
6. Place the turbocharger on a soft underlay.
u Measure: Radial clearances N and R →67.
Page 66 / 77
