u Mark the casing position for assembly.

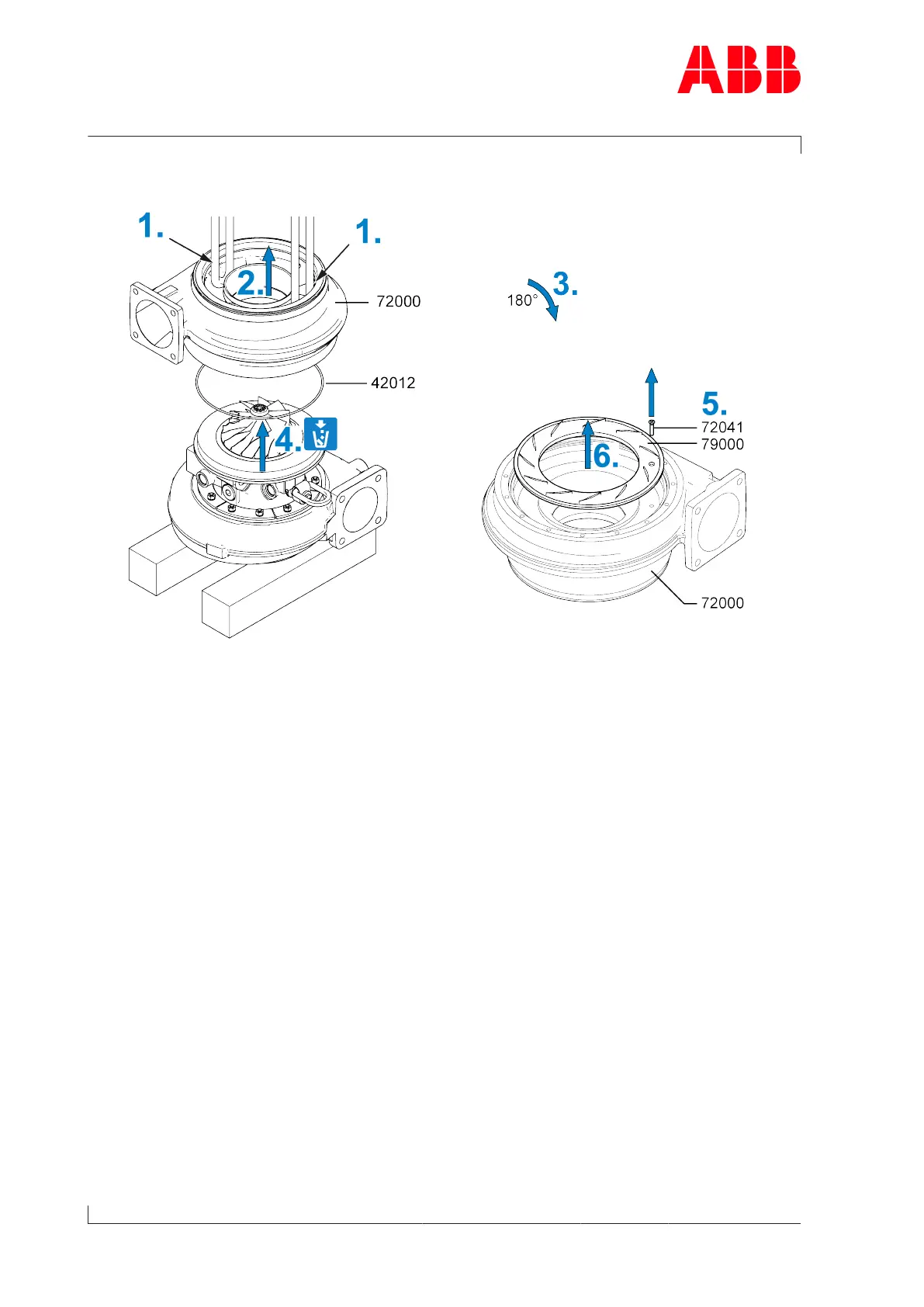

Fig.21: Removing the compressor casing (2/2)
1. Secure lifting gear to compressor casing (72000).
2. Remove the compressor casing(72000) vertically.
3. Rotate the compressor casing(72000) through 180° and put it in place.
4. Remove and dispose of O-ring(42012) (refer to chapter Disposing of turbocharger com-
ponents →74).
5. Remove screw(72041).
6. Remove the diffuser(79000) vertically from the compressor casing.
