Fitting the cartridge group

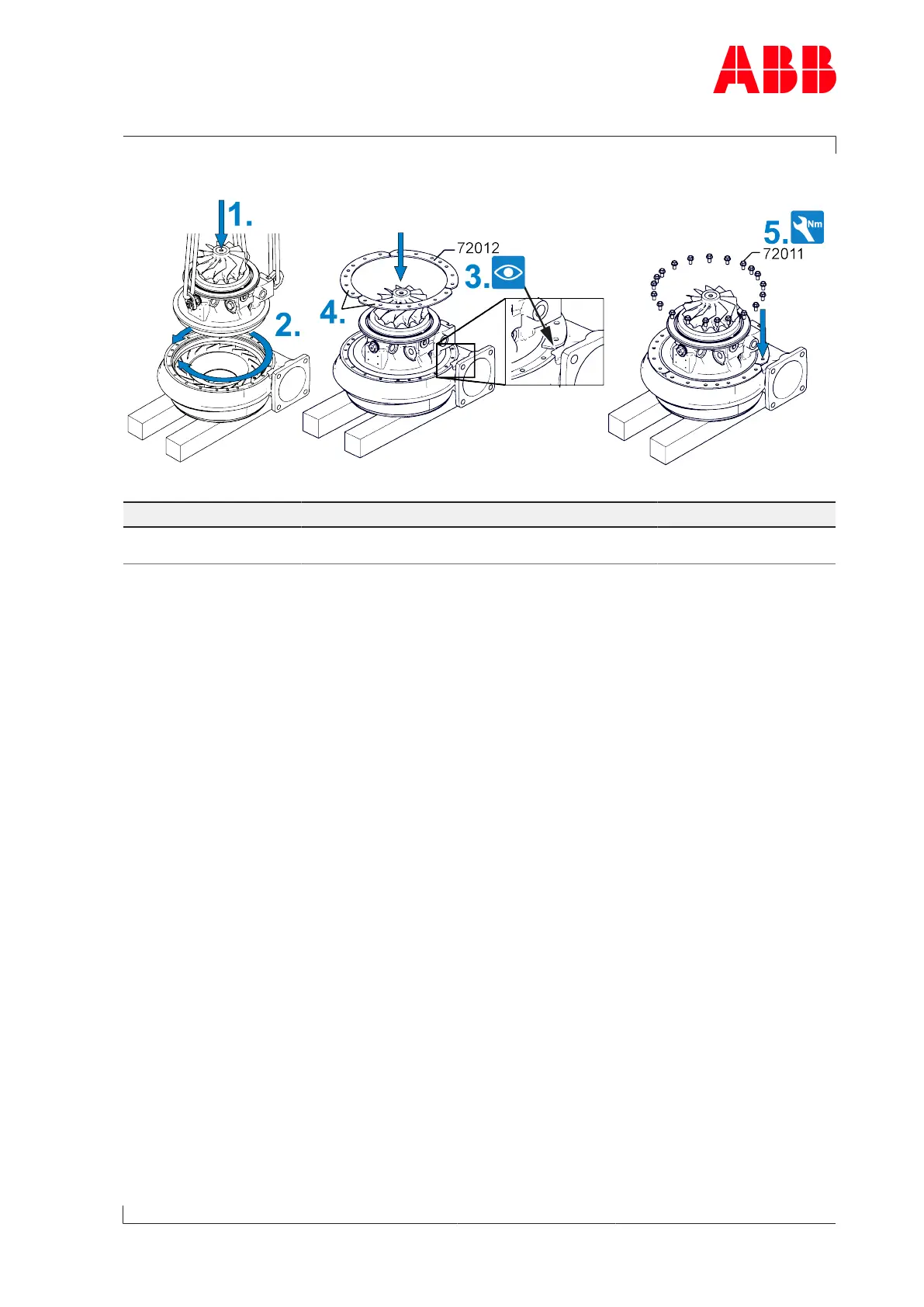

Fig.31: Fitting the cartridge group
Part number TPS44 TPS48 TPS52
72011 M8
40Nm
M8
40Nm
M10
80Nm
Table36: Tightening torque (72011)
1. Lower cartridge group carefully into the compressor casing.
2. Align cartridge group to the marking.
3. Place first fastening strip (72012) according to illustration.
4. Place remaining fastening strips (72012).
5. Fit and tighten hexalobular-head screws(72011).
