2.3 Installing the turbocharger
2.3.1 Inserting gaskets
CAUTION
Inserting the gaskets
Gaskets that are forgotten, damaged or improperly inserted will lead to oil
leaks.
u Always use new gaskets and insert them carefully into the slot.
The oil is supplied(02) and drained(03) through the bracket (01).
The necessary sealing is provided by O-rings. The O-rings are not included in the ABB Turbo
Systems scope of delivery.

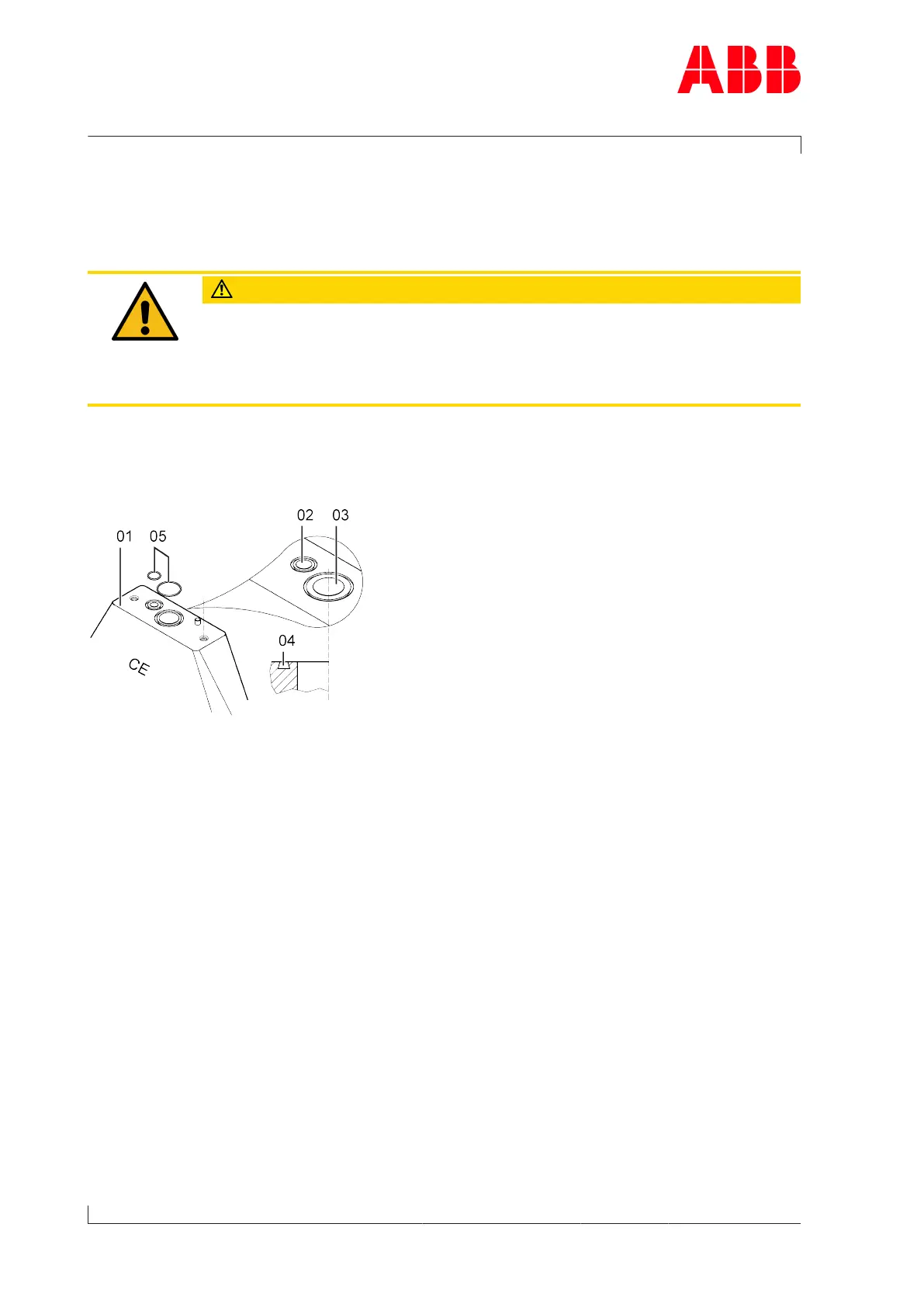

Fig.6: Inserting O-rings into bracket
01 Bracket
02 Oil supply
03 Oil drain
04 Slot for O-ring
05 O-rings
CE Compressor end
