9.16 Installing the gas outlet casing

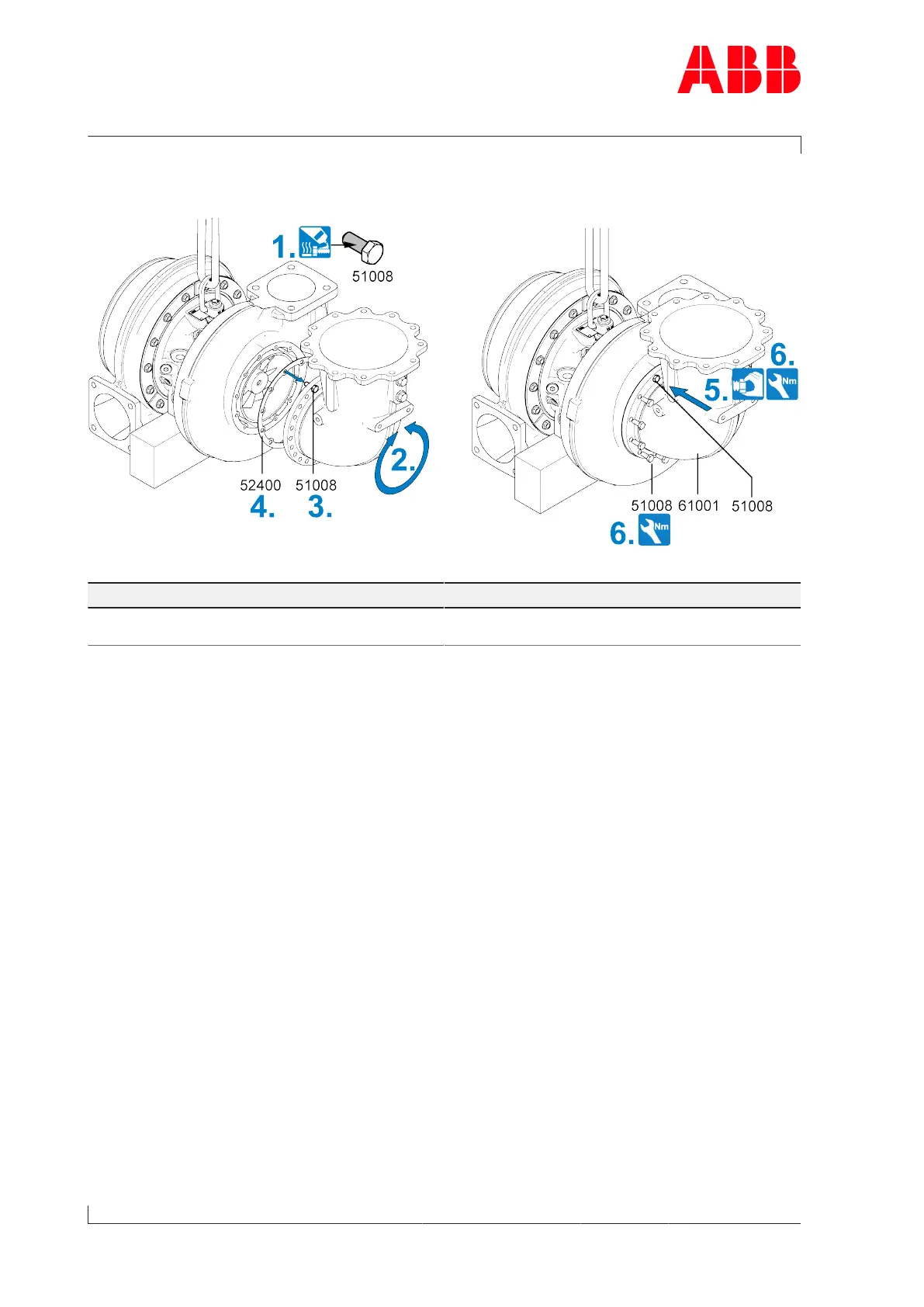

Fig.36: Fitting the gas outlet casing
Part number TPS44 TPS48 TPS52
51008 M8
25Nm
M8
25Nm
M10
50Nm
Table39: Tightening torque (51101)
1. Coat the threads of the hexagon-head screws or studs(51008) with high-temperature
grease.
2. Align the casing position of the gas outlet casing(61001) to the marking.
3. Fit two hexagon-head screws(51008) in the upper area of the gas outlet casing.
4. Position the gasket(52400) on the threads of the hexagon-head screws(51008).
5. Install the gas outlet casing(61001) on the turbine casing with the two screws.
6. Fit the remaining screws(51008), then tighten all the screws.
