2 Removing and Installing
2.1 Turbocharger weight and transportation
Lifting gear with a sufficient load limit must be used for removing and installing the tur-
bocharger. The following weight specification applies to the heaviest variant possible. De-
pending on the specification, the weight specified on the rating plate may be lower than the
standard value specified here.
Product Weights [kg]
TPS44 120
TPS48 180
TPS52 250
Table2: Weight of the turbocharger
One swivel lifting eye (S) is required to safely lift this turbocharger. This is not included in
the ABB Turbo Systems scope of delivery.
Swivel lifting eye (S) to be used Product Thread Length
H[mm]
Diameter
D[mm]
Minimum load
limit
[kg]
TPS44 M8 ≤12 ≤25 300
TPS48 M8 ≤12 ≤25 300
TPS52 M10 ≤15 ≤25 400
Table3: Swivel lifting eye (S) to be used

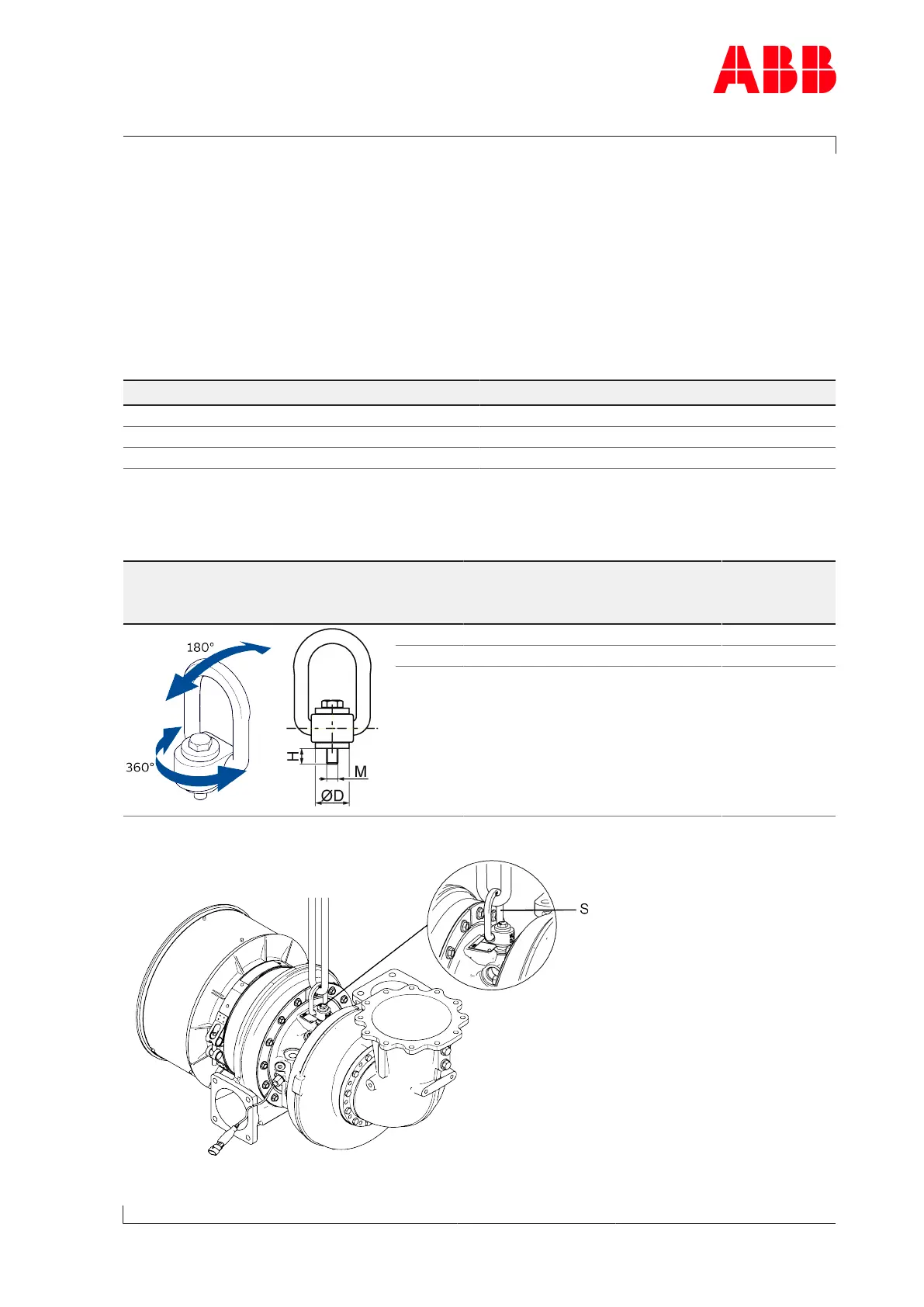

Fig.4: Turbocharger transport
