Operation Manual / 4 Product description / TPS44-H.. - TPS52-H..
9 Dismantling and fitting / 9.3 Removing the gas outlet casing
© Copyright 2017 ABB. All rights reserved. HZTL4037_EN Revision E July 2017
9.3 Removing the gas outlet casing
u Mark the casing position for assembly.
Note: Gas outlet casings which are not from ABB may also be secured with studs and nuts.

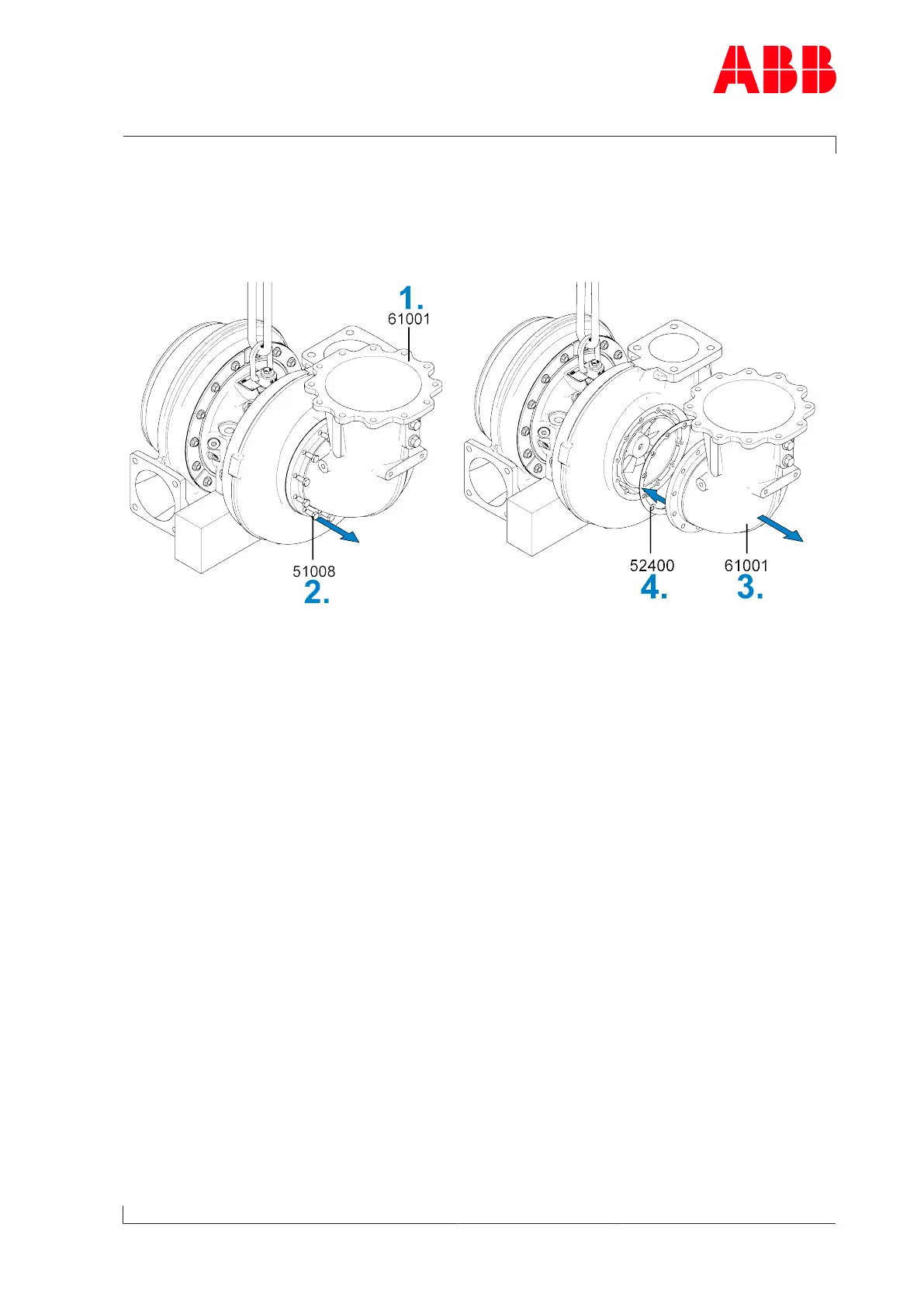

Fig.18: Removing the gas outlet casing
1. Manually secure the gas outlet casing(61001).
2. Loosen and remove screws(51008).
3. Remove the gas outlet casing(61001).
4. Remove the gasket(52400).
