9.9 Nozzle ring compression PD
For the nozzle ring(56001) to be fixed during operation, it must be clamped between the
bearing casing(42001) and the turbine casing(51000).

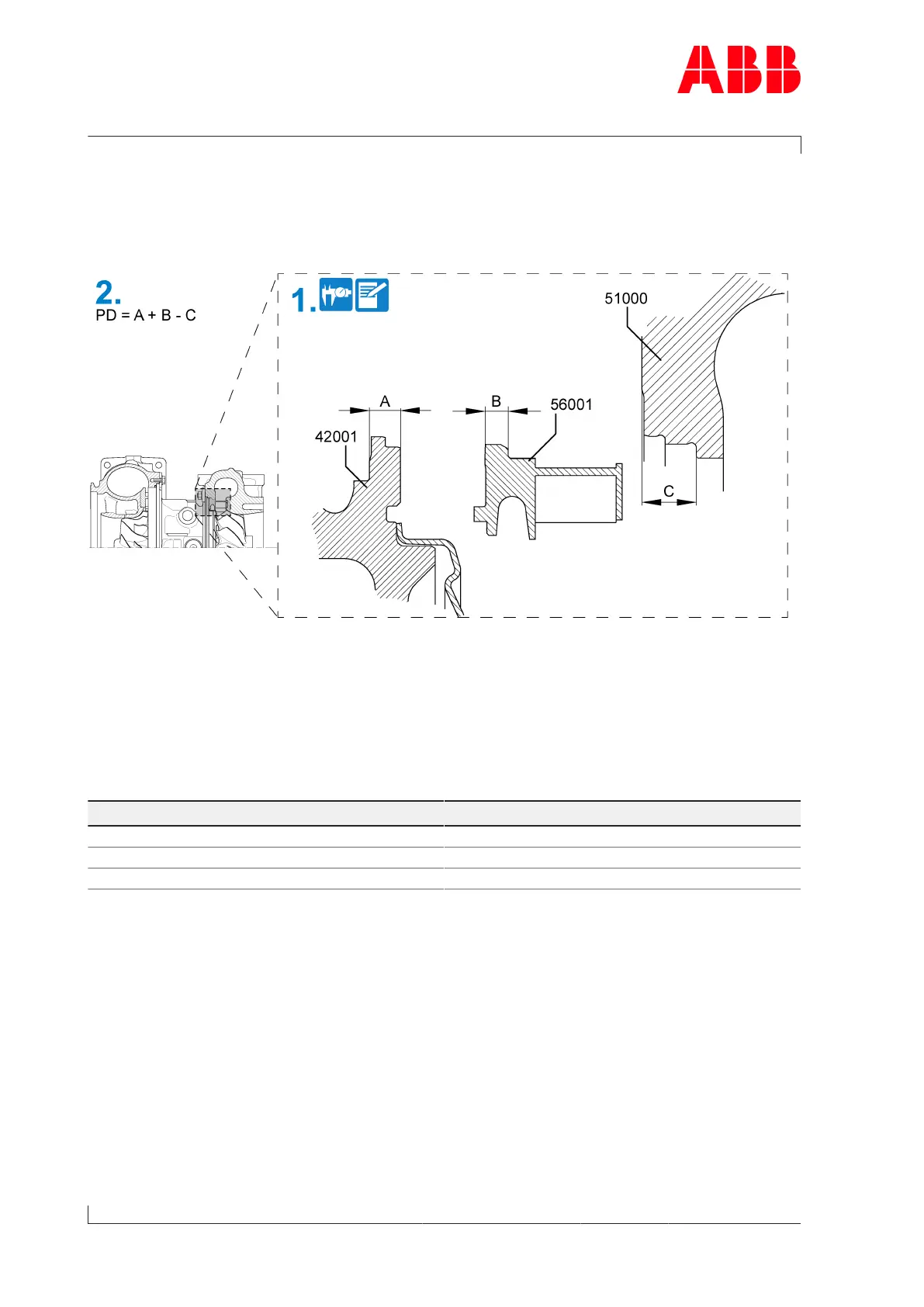

Fig.28: Measuring nozzle ring compression
42001 Bearing casing
51000 Turbine casing
56001 Nozzle ring
1. Measure dimensions A, B, and C on cleaned surfaces.
2. Calculate the compression (PD) and compare it with the permissible values in the follow-
ing table.
Product Compression PD [mm]
TPS44 -0.23 ... 0.23
TPS48 -0.23 ... 0.23
TPS52 -0.24 ... 0.24
Table34: Permitted nozzle ring compression PD
u If the calculated value (PD) lies outside the specified range, contact an ABB Turbochar-
ging Service Station.
