7.2 Mounting
7.2.1 Installation consideration
The 1/2 gang, 2/4 gang, 3/6 gang, 4/8 gang, Room Temperature Controller, Room
Temperature Controller with 2/4gang control elements are surface mounted device (AP)
with an integrated bus coupler. The control element with RTC function operates with
additional supply voltage. It can be installed on flush-mounted sockets (UP) (China, and
BS).
Selection of a suitable installation location for the controller and suitable parameter
settings are essential for good temperature and proximity detection.

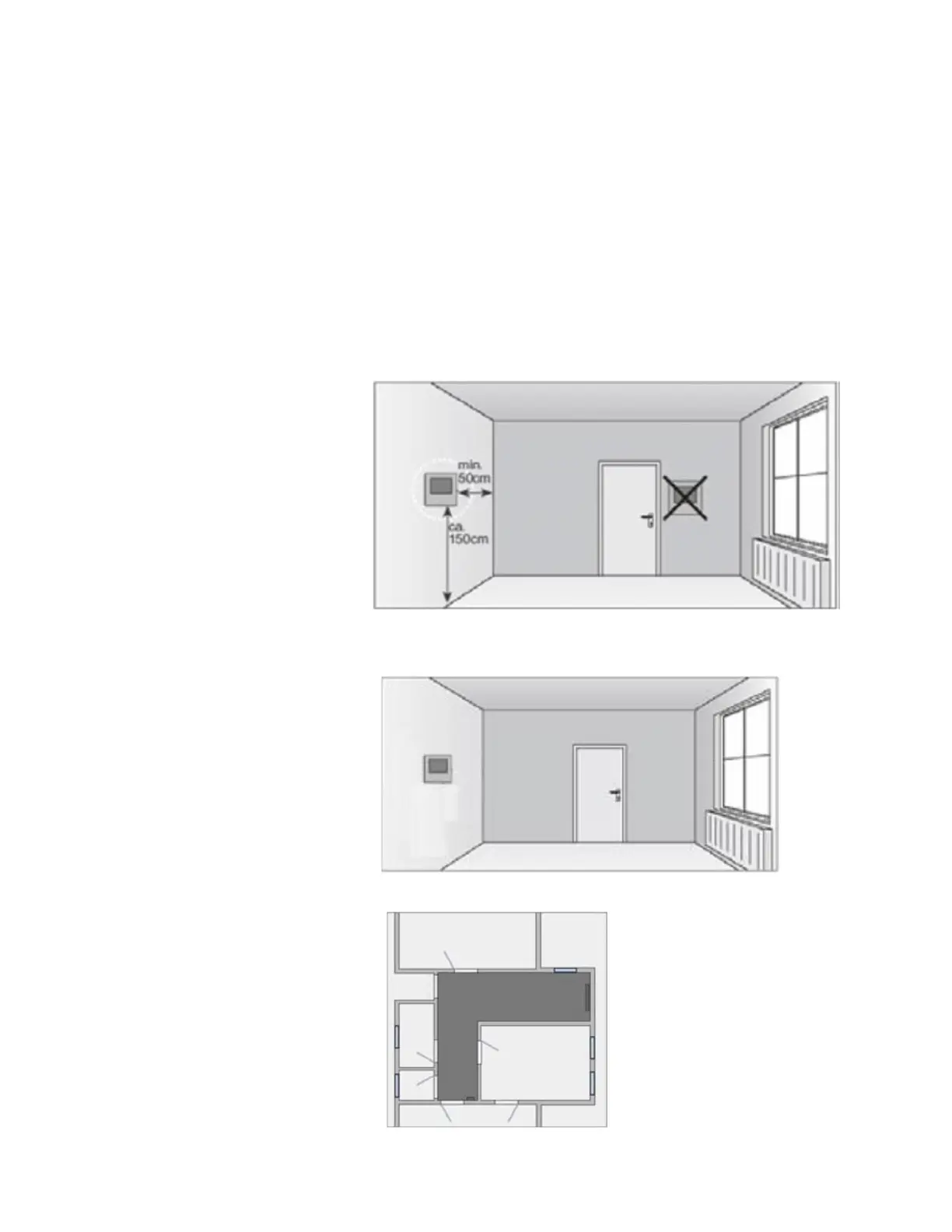

- The room temperature
controller should be
installed approximately
150 cm above the floor
and 50 cm from the door
frame.
- The room temperature
controller should be
installed on a wall opposite
the radiator.
- The radiator and the room
temperature controller must
not be separated by corners
in the room.
