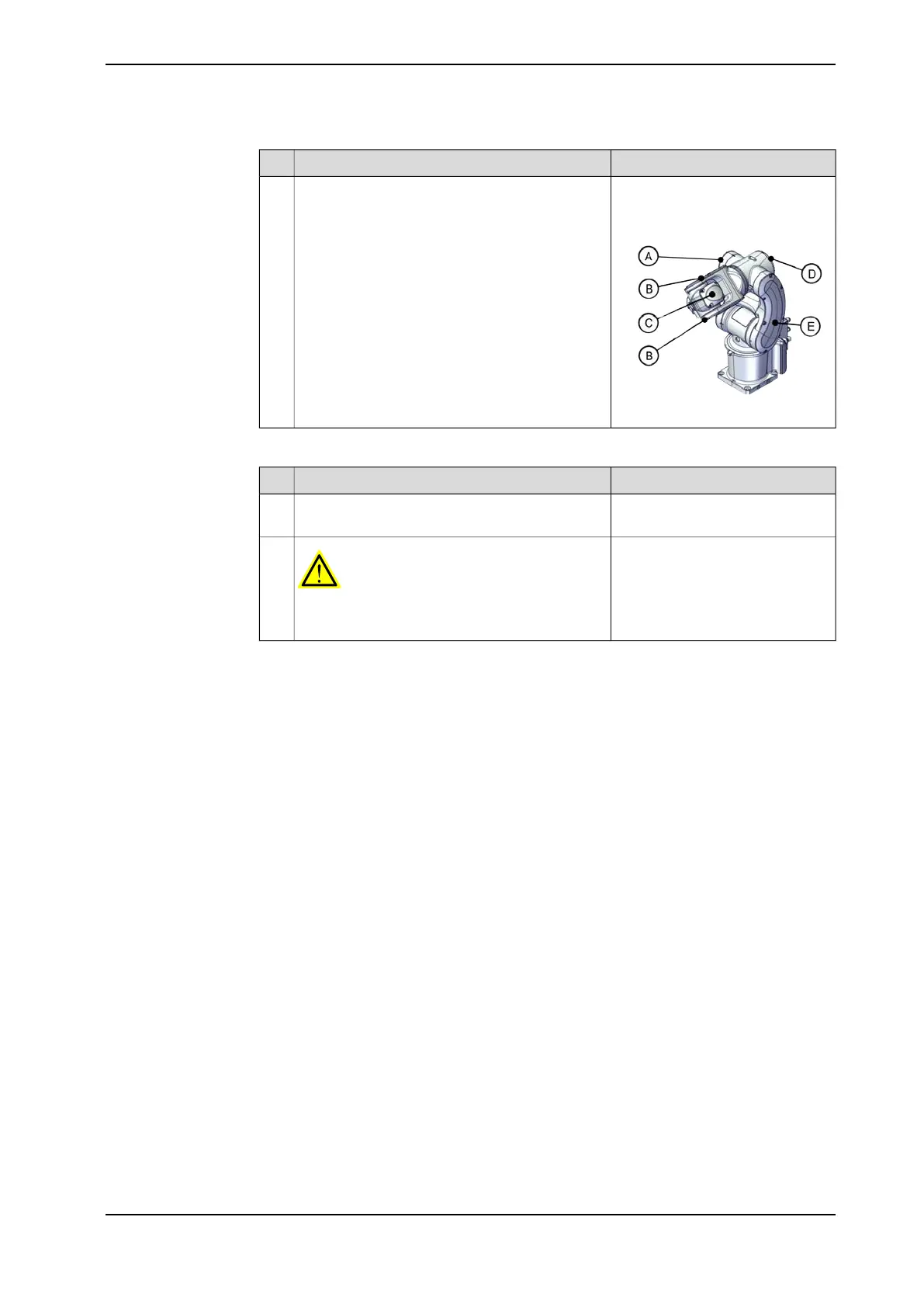

NoteAction
Screw: M3x8 12.9 Lafre
2C2B/FC6.9
Refit the covers.
Lower arm cover, left (A)
Wrist covers (B)
Tilt cover (C)
Housing cover (D)
Lower arm cover, right (E)
3
Tightening torque: 1.2 Nm
xx2200000029
Concluding procedure
NoteAction
Calibration is detailed in section
Calibration on page 279.
Recalibrate the robot.1
DANGER
Make sure all safety requirements are met when
performing the first test run.
2
Product manual - IRB 1010 225
3HAC081964-001 Revision: B
