6.2 Synchronization marks and axis movement directions
6.2.1 Synchronization marks and synchronization position for axes
Introduction
This section shows the position of the synchronization marks and the
synchronization position for each axis.

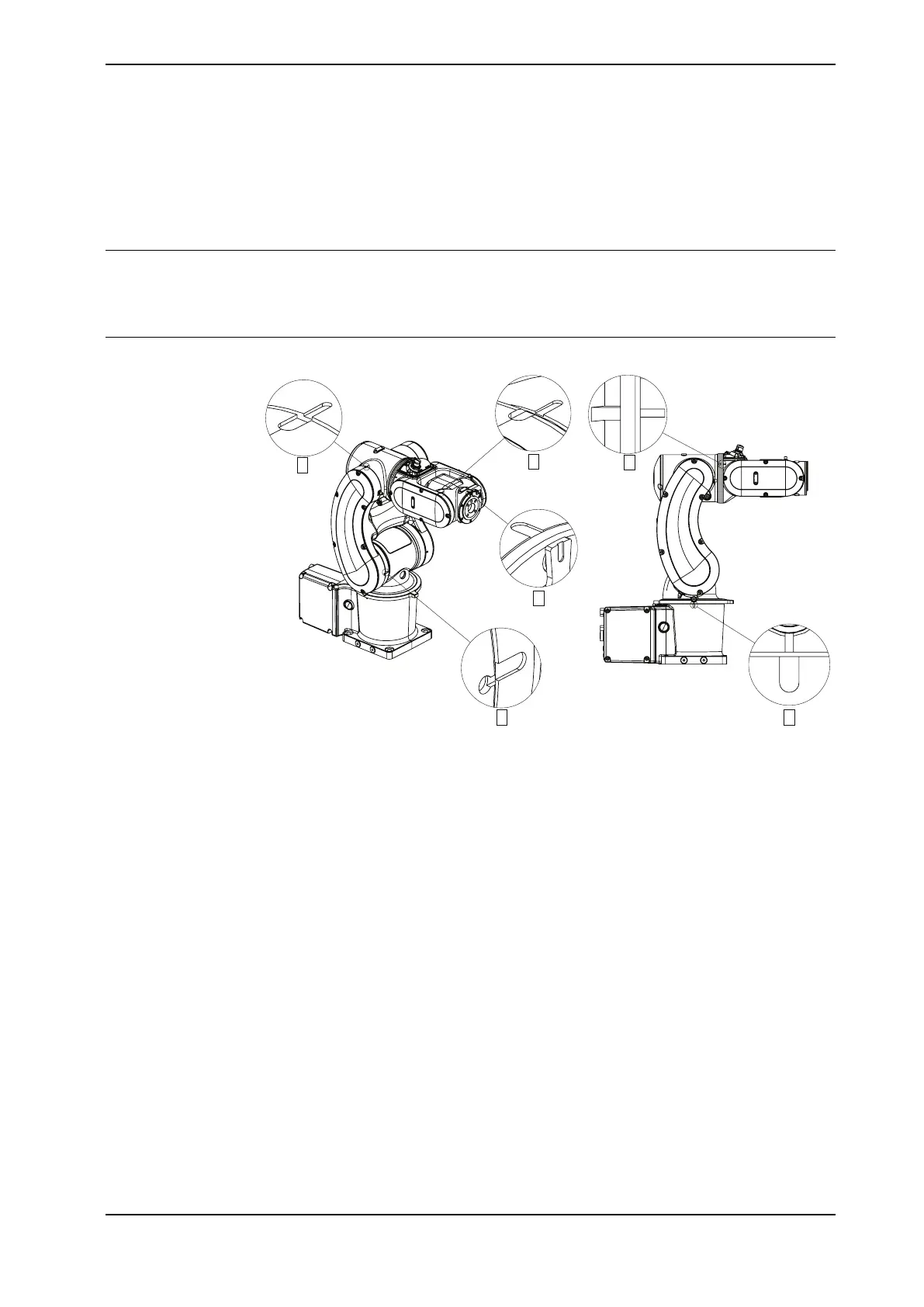

Synchronization marks, IRB 1010
6
3
5
2 1
4
xx2200000179
