Protection covers
Protection covers for water and dust proofing
Protection covers are delivered together with the robot and must be well fitted to
the connectors in any application requiring water and dust proofing.
Always remember to refit the protection covers after removing them.
(A)
(A)
(B)
(C)

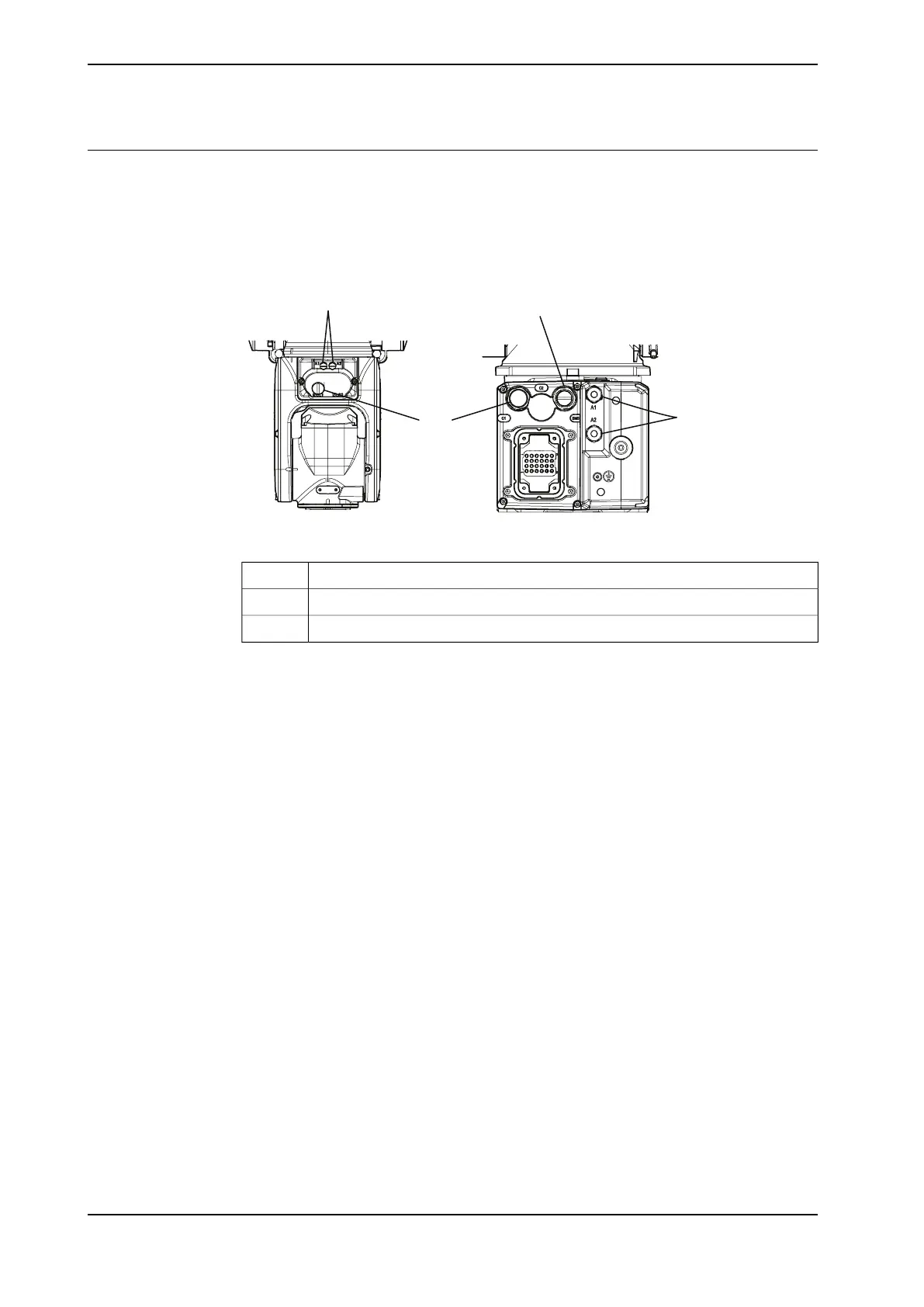

xx2200000195
Air hose connector protection coversA
CP/CS connector protection coversB
SMB connector protection coverC
