LMT100 AND LMT200 | MAGNETOSTRICTIVE LEVEL TRANSMITTERS | FF OI/LMT100/200/FF-EN REV. A
8 Operation
The HMI display is provided with optional capacitive control
buttons. When this option is selected, device control through
the glass of the closed cover is enabled.
IMPORTANT (NOTE)
When the capacitive control button option is selected, the
transmitter automatically calibrates the buttons on a regular
basis. If the cover should be opened during operation, the
button sensitivity is increased at first. As a result, operating
errors may occur. The button sensitivity returns to normal
during the next automatic calibration.
Menu navigation

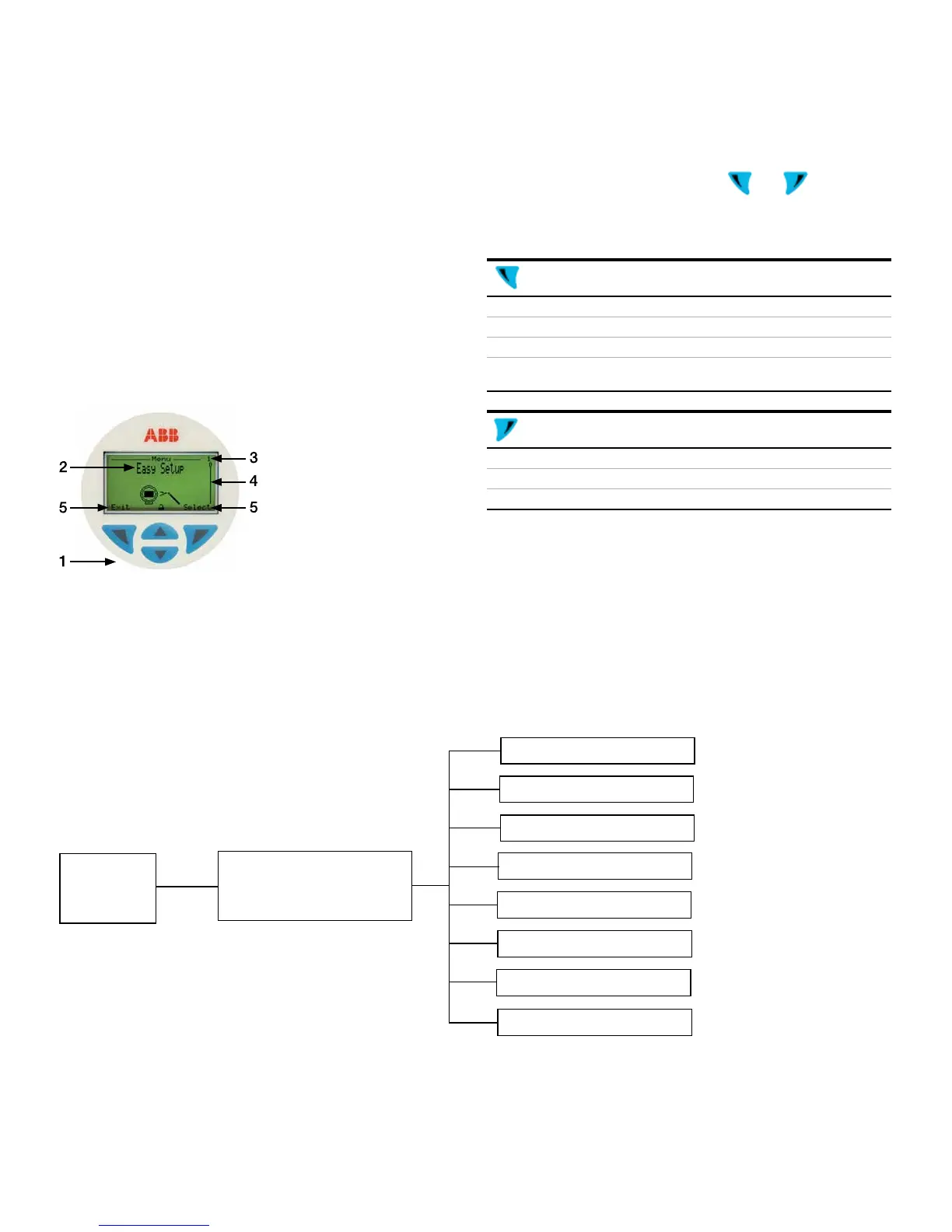

Figure 27 8.1: HMI Display
1 Display with control buttons for menu navigation
2 Menu name
3 Menu number
4 Marker for indicating relative position within the menu
5 Function currently assigned to the
and control
buttons
Control button functions
Function Meaning
Exit Exit the menu
Back Go back to the upper level menu
Cancel Cancel a parameter entry
Next Select the next position for entering numerical and
alphanumeric values
Function Meaning
Select Select a submenu or parameter
Edit Edit a parameter
OK Save the entry
HMI menu structure
The HMI menu is divided in the following sections and can be
selected by using the keys (2) and (3). Once they appear on the
display, the submenu icon also appears. The user can then
confirm their selection with the (4) [SELECT] key.
Follow the instructions on the screen to perform the
configuration of the various parameters.
Easy Setup
Main
Access
Device Setup
Display
Calibrate
Diagnostics
Device Info
Communication
Service
