Menu levels
Product display
Operation Menu
Diagnostics
Operator Page 1 ... 4
Autoscroll
Signals View
Configuration Menus
Easy Setup
Device Setup
Display
Calibrate
Diagnostics
Device Info
Communication

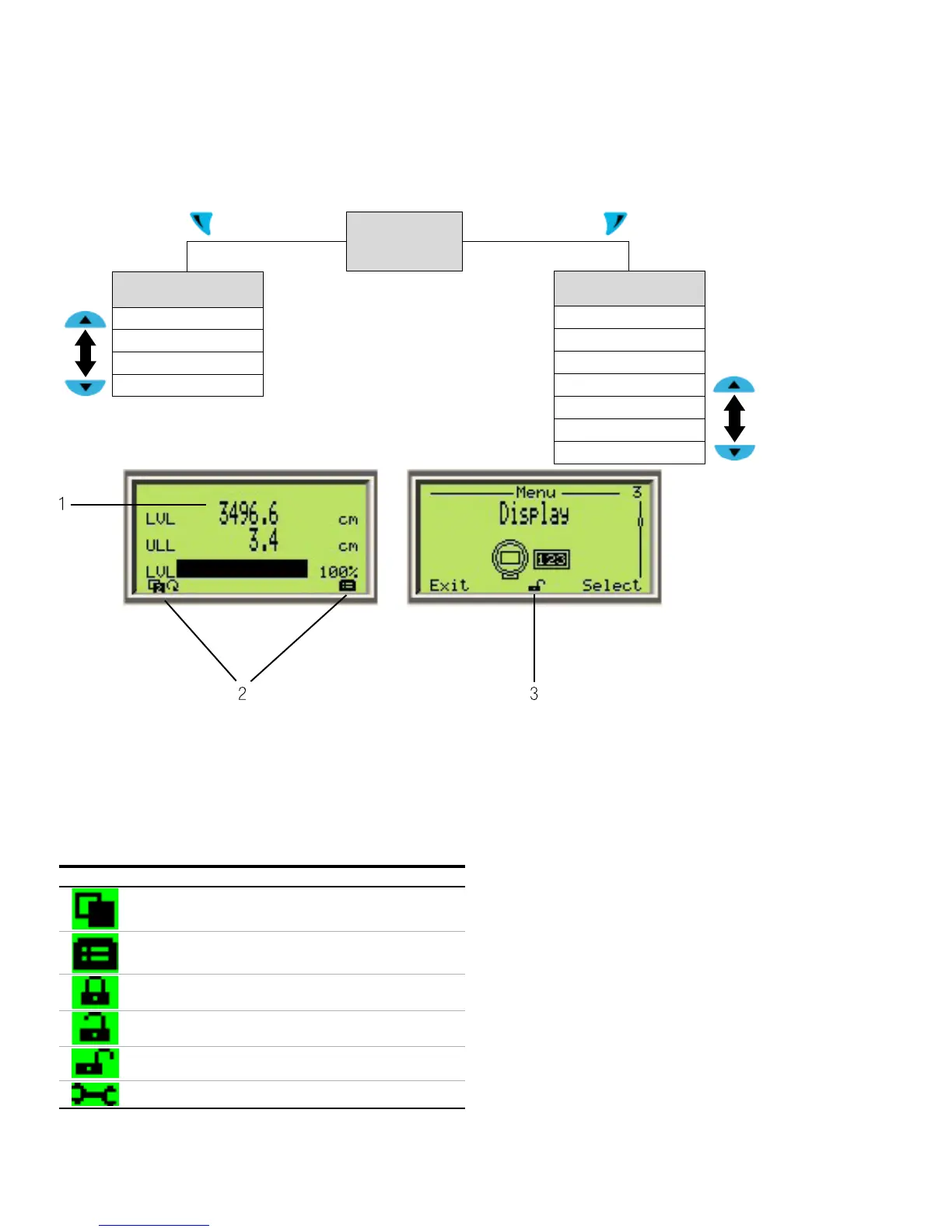

Product Display
Figure 28 Product Display
1 Present process values
2 Symbol indication button function
3 Area where indicator for “Parameterization protected” state
shows
Symbol Description
Call up information level
Call up configuration level
The device is protected against all changes
The device allows some changes
The device allows all changes
Service access
IMPORTANT (NOTE)
The HMI display automatically returns to the product display, 5
minutes after the last button is actuated
