Waveform display
The LMT series includes an integrated graphic display with
waveform screens that detail signal activity. The waveform
display of the LMT series is a useful tool for configuration,
diagnostic and troubleshooting of the device.
UpLeft
Right
Down
Symbol Description
Back to previous menu
Scroll to next parameter on this screen
Edit highlighted parameter

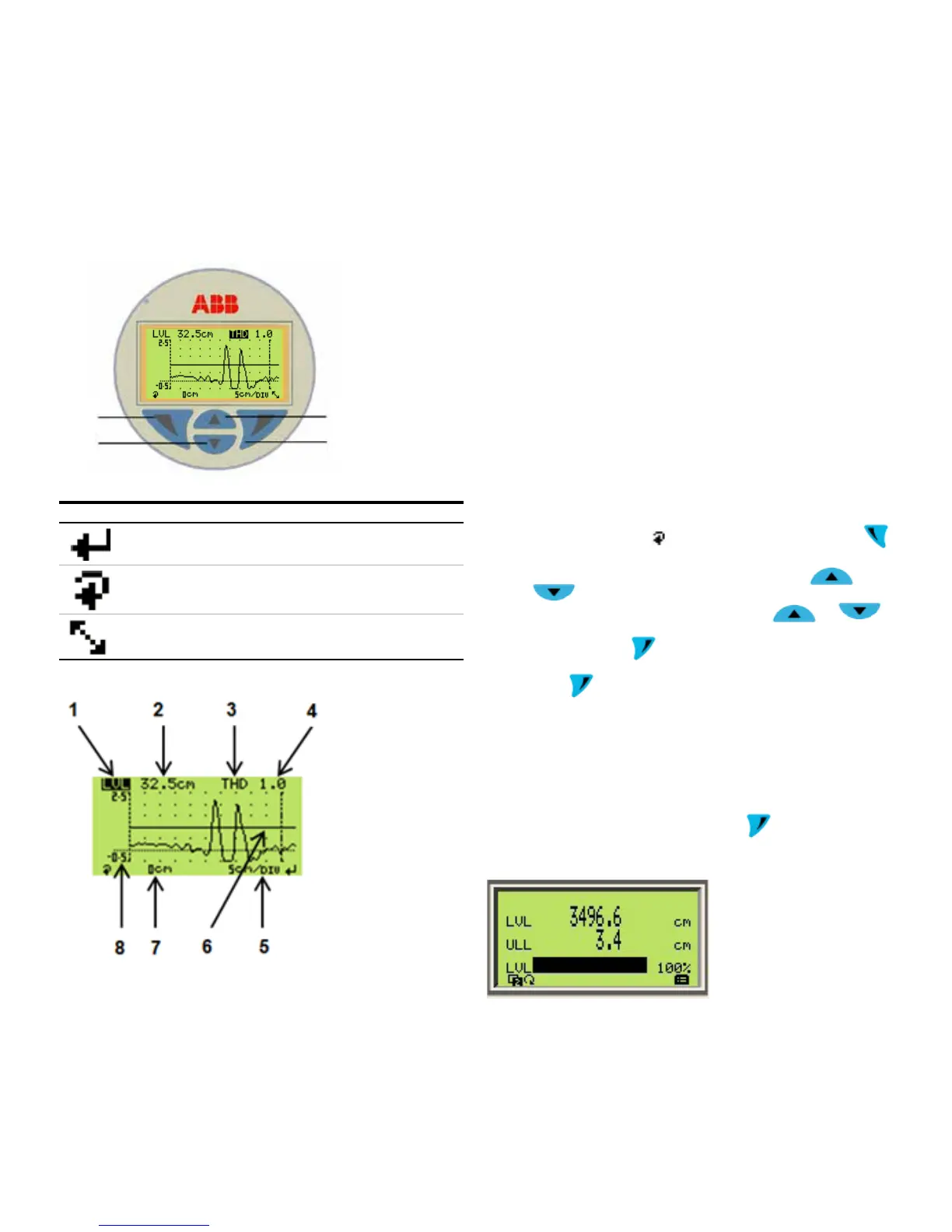

Figure 36 Waveform Display
1 Process value label. This can be one of the following:
LVL – Level
INT – Interface
PV% – Process Value in percentage
SVL – Sensor Value for Level
SVI – Sensor Value for Interface
2 Value of the parameter selected in item 1
3 Device measurement parameters. This gives access to the
following 3 parameters:
THD – Threshold
PLS – Pulse Width
BLK – Blanking
4 Value of the parameter selected in item 3
5 Scale of the waveform screen currently displayed. The
choices are one of the following:
For metric units – 5 cm/DIV, 10 cm/DIV, 20 cm/DIV or 40
cm/DIV
For imperial units – 3 in/DIV, 6 in/DIV, 12 in/DIV or 24 in/
DIV
6 Graphical representation of the threshold level
7 Offset setting reflects the location in the probe (in raw
engineering units) from which the signal is displayed and
corresponds to the leftmost side of the waveform plot
– The scroll function
, which is accessed by pressing ,
allows navigation between items 1, 3, 5, & 7
– When the cursor is in positions 5 or 7, press
or
to change the value
– When the cursor is in position 3 press
or
to navigate between Threshold, Pulse Width and
Blanking. Press
in any of those parameters to
change its values
– Press
when position 1 or 5 is highlighted to exit the
waveform screen
8 The starting reference voltage value
Accessing the Waveform screen through LMT HMI
STEP 1:
From the Level Information screen press
to switch to the
“Access Level” menu
