Press and to edit each digit
Press
to complete this operation and confirm the input
value

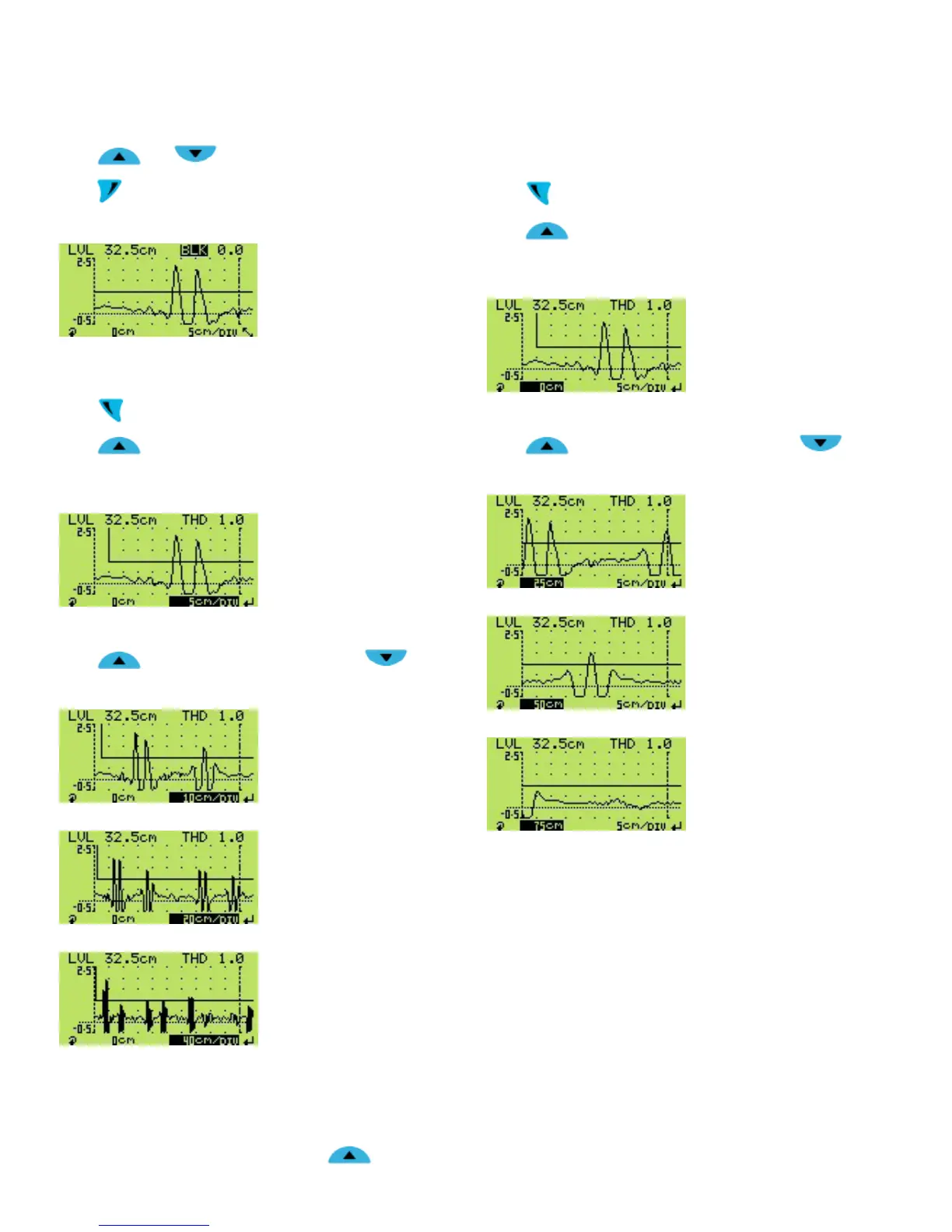

Managing horizontal scales of the waveform
STEP 1:
Press
to scroll to the offset setting
Press
to increase the horizontal offset to start
displaying the signal from a point further down the length of
the probe
STEP 2:
Press
to increase the horizontal scale or to
reduce it
IMPORTANT (NOTE)
• If the scale selected covers more than the length of the probe
then the navigation to larger scale will be rejected, because
the selected one already covers everything that is to display
• After reaching the upper scale, pressing
will rollover to
the lowest scale
Managing the horizontal offset of the waveform
STEP 1:
Press
to scroll to the offset setting
Press
to increase the horizontal offset to start
displaying the signal from a point further down the length of
the probe
STEP 2:
Press
to increase the horizontal offset or to
reduce it
IMPORTANT (NOTE)
• If with the selected offset the screen covers more than the
length of the probe then the navigation to larger offset will be
rejected, because the selected one already covers everything
that is to display.
