Standing off installations
In case of Standing off pipe is needed, to max. reduce the
blanking distance impact or to better adjust to the set up, it is
recommended to use PE or PVC pipe, with a 45degree angle in
the end.
D
L

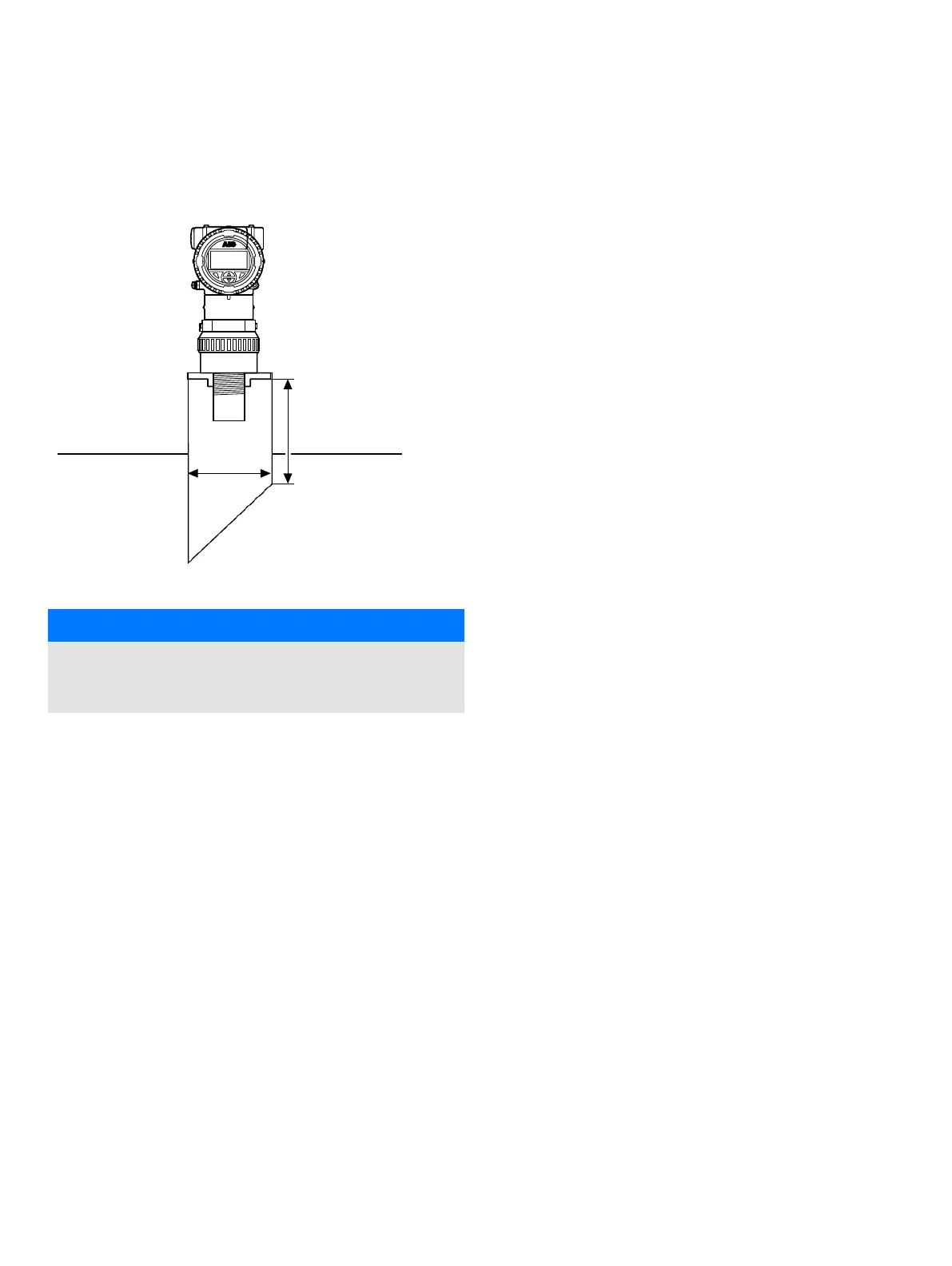

Figure 17
NOTICE
In case a standing off pipe is used for process connection,
make sure the diameter of the pipe D is larger than 120mm
and L/D <= 3.
