ABB PST - Programmable Output Relay K4, Terminals 12, 13 and 14; Programmable Output Relay K5, Terminals 15, 16 and 17

46 Low Voltage Products & Systems
AC 1006.9 - 5/03 ABB Inc. • 888-385-1221 • www.abb-control.com
Chapter 5 - Connection
Figure 22: Tightening torques and cable sizes
M3
1. . . . . . . . . . . . . . . . . . . . . . . . 20
0.5 Nm - 4.3 lb.in
3.5x0.6
0.14 ... 2.5 mm
AWG 12 ... 22
0.14 ... 2.5 mm
2
2
1SFC132053F0001
5:2.2.5 Programmable output relay K4, terminals 12, 13 and 14
The output relay gives a signal depending on the selected function.
Default: Run
See Chapter 7 “ Settings and configuration” for programming.
Connect the cables to terminal 12, 13 and 14.
5:2.2.6 Programmable output relay K5, terminals 15, 16 and 17
The output relay gives a signal depending on the selected function.
Default: Top of ramp
See Chapter 7 “ Settings and configuration” for programming.
Connect the cables to terminal 15, 16 and 17.

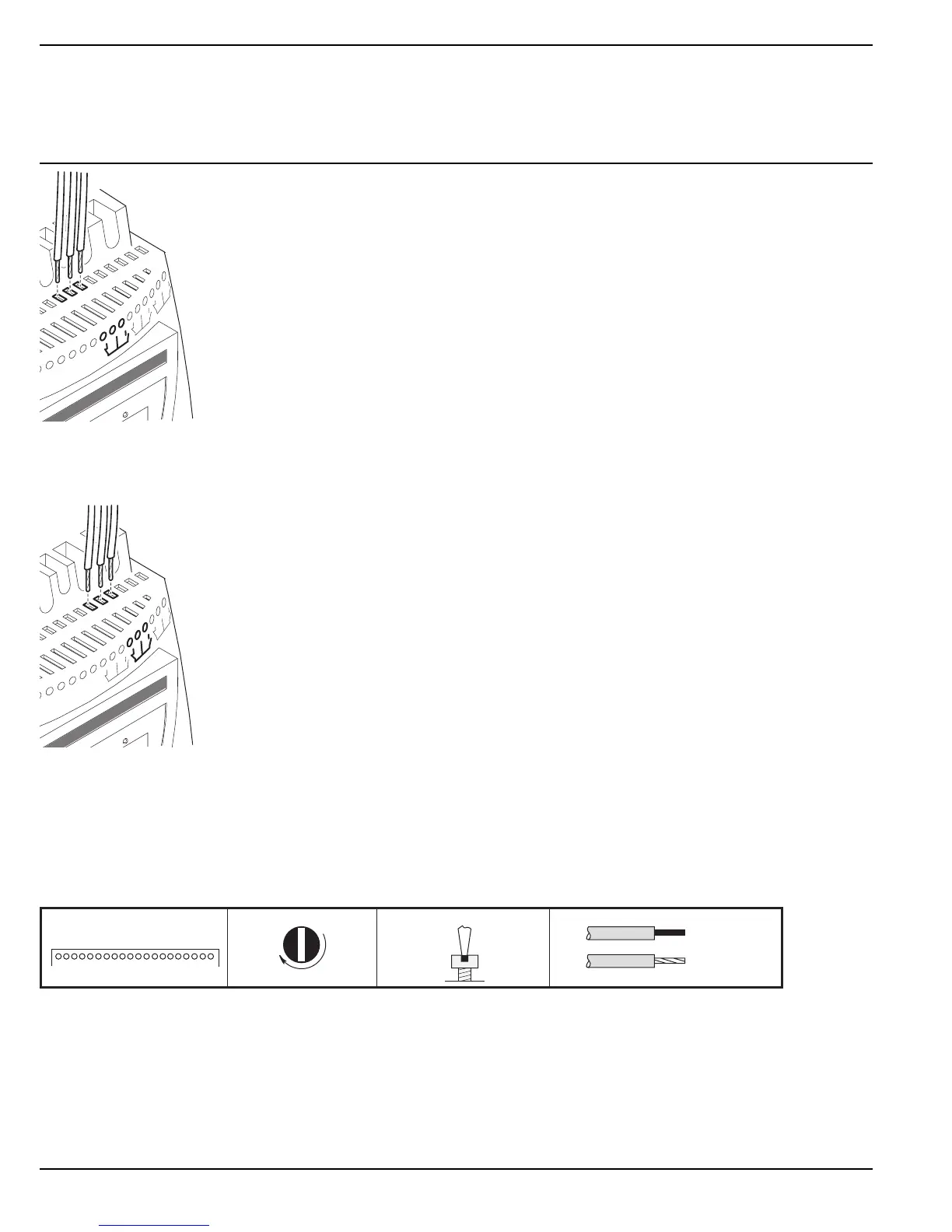

Figure 20: Terminals 12, 13, 14
Figure 21: Terminals 15, 16, 17
