113Operation
EN
INVERTER PARAMETERS > Ramp Control (Only visible and editable with Admin Plus privileges)
In the Ramp Control sub-menu you can config the parameter related to the active power ramp up at the
start-up and after a grid fault event.
NOTE – D Do not change these parameters if not requested by the grid operator.
INVERTER PARAMETERS > Reactive Power Control (Only visible and editable with Admin Plus privileges)
In the Reactive Power Control sub-menu you can configure settings related the reactive power parameters
using the following parameters groups:
• Cosphi Set
• Q Set
• Volt/VAr Settings: Q(V)
• Watt/Cosphi Settings: Cosphi(P)
NOTE – D Do not change these parameters if not requested by the grid operator.

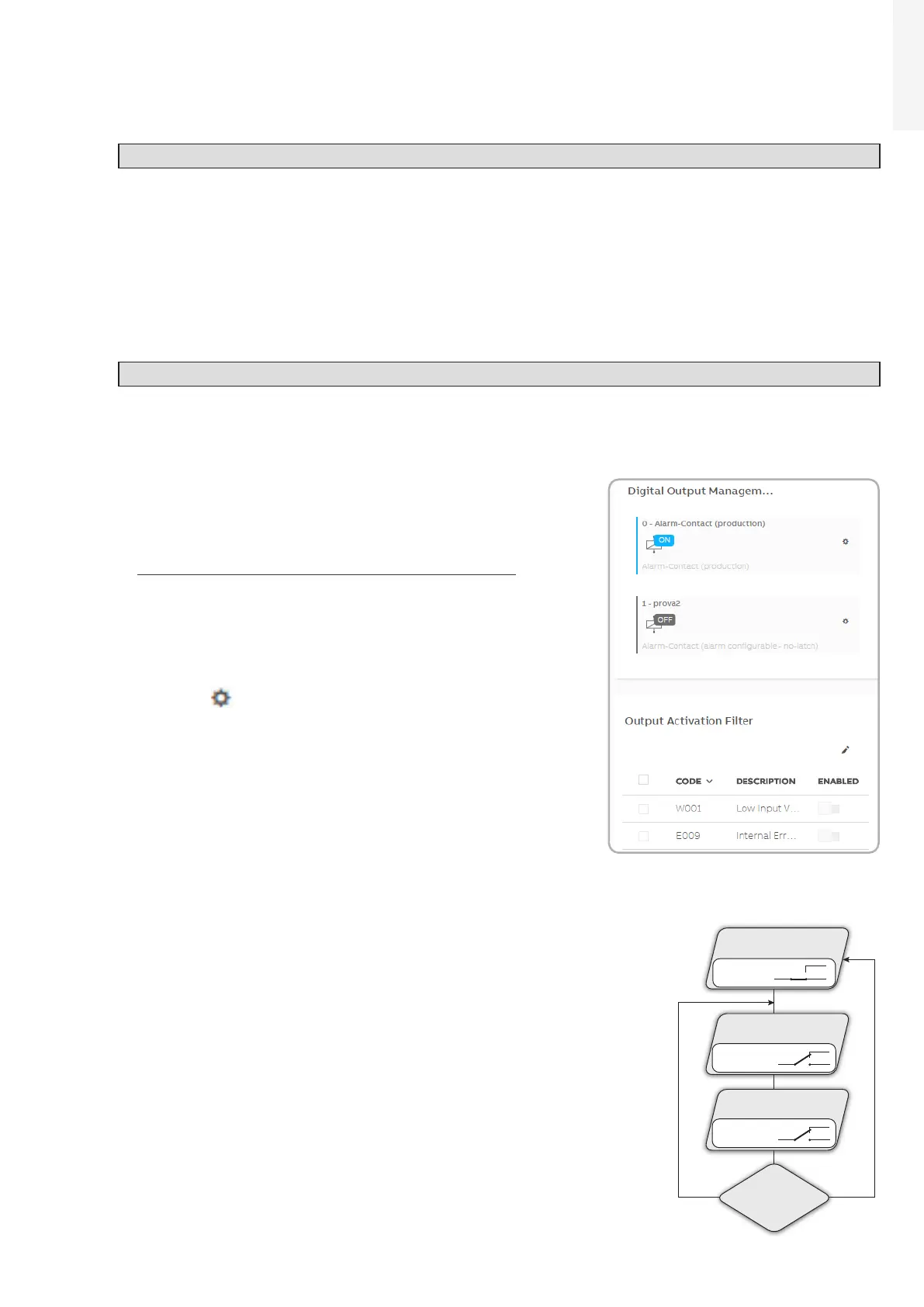

DIGITAL OUTPUTS
In the Digital Outputs menu it’s possible to set the activation
status and to configure customized alarm conditions of the two
configurable relays related to “ALARM” terminal block (41) (refer
to “Multifunction Relay connection (ALARM and AUX)” paragraph
to know how to connect to these terminal block).
This contact can be used, for example, to activate a siren or a
visual alarm, control the disconnect device of an external
transformer, or control an external device.
Relay switching can be set in different modes by clicking on the
setting icon : With “Output active filter” you can select the list
of events for which the relays switch.
The available operating mode are:
• Production
The relay is activated (status: switched) whenever the inverter connects
to the grid; as soon as the inverter is disconnected from the grid (for
whatever reason that caused disconnection), the relay is in its resting
position.
INVERTER RUN
- PRODUCTION -
GRID DISCONNECTION
- NO PRODUCTION -
GRID RECONNECTION
t=based on Country Standard
DISCONNECTION
CAUSE IS STILL
PRESENT
Yes No
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
Relay State: Idle
Relay State: Idle
Relay State: Switched
