Menu structure & LHMI Navigation
Section 5 Menu Structures & LHMI Navigation
5.1 Local HMI
The local HMI of the relay contains following elements:
. LCD display
. Navigation buttons
. LED indicators
The LHMI is used for setting, monitoring and controlling.

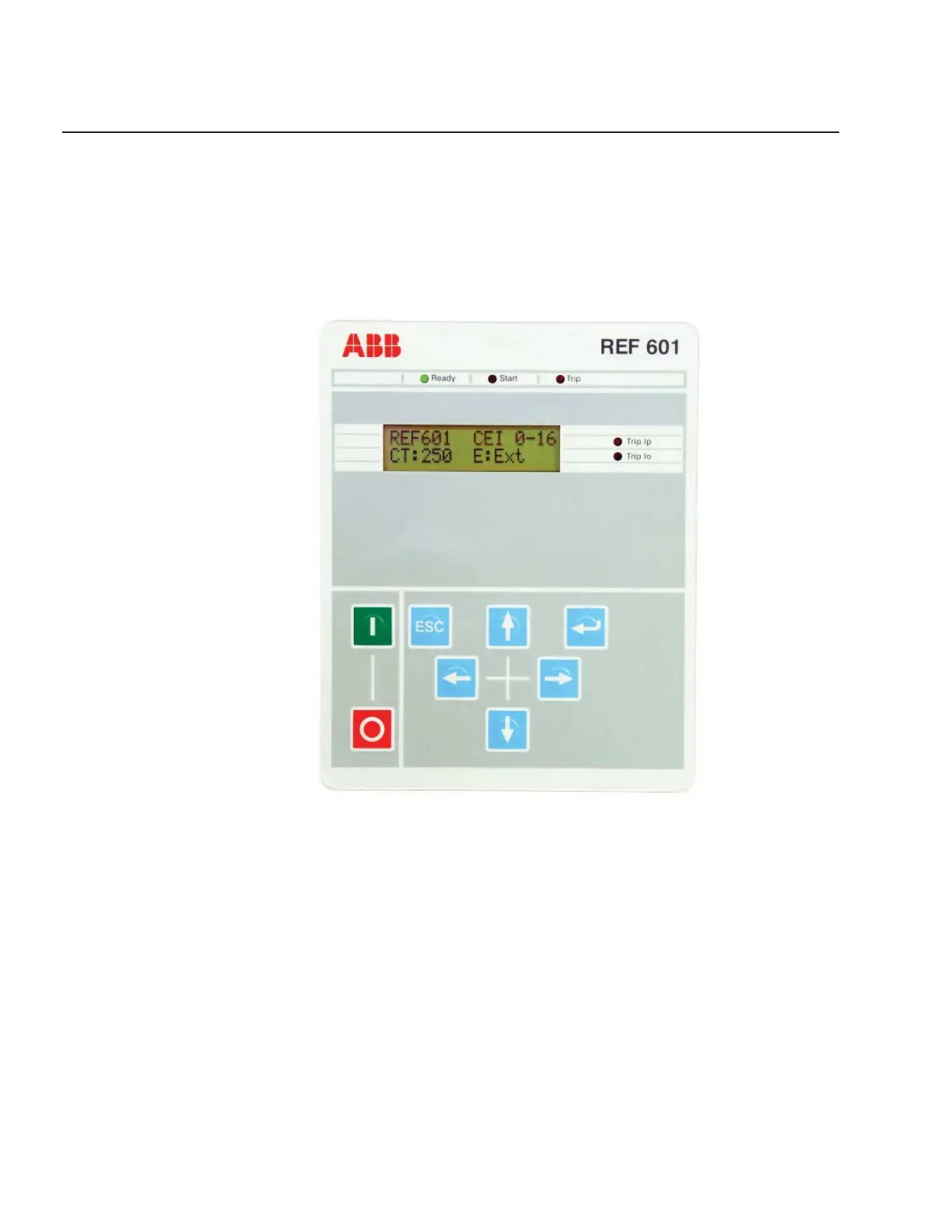

Fig. 8 – Local HMI of relay REF601
