1MDU07205-YN rev. F
REF601 CEI
User’s manual
41
Menu structure & LHMI Navigation
B l o c k 1
B l o c k 2
I 1 : X X . X X I 2 : X X . X X
I 3 : X X . X X I o : X X . X X
I 1 : X X . X X I 2 : X X . X X
I 3 : X X . X X I o : X X . X X
T r i p C o u n t e r
P h a s e T r i p : x x x x
T r i p C o u n t e r
0 0 0 0
9 9 9 9
T r i p C o u n t e r
E a r t h T r i p : x x x x

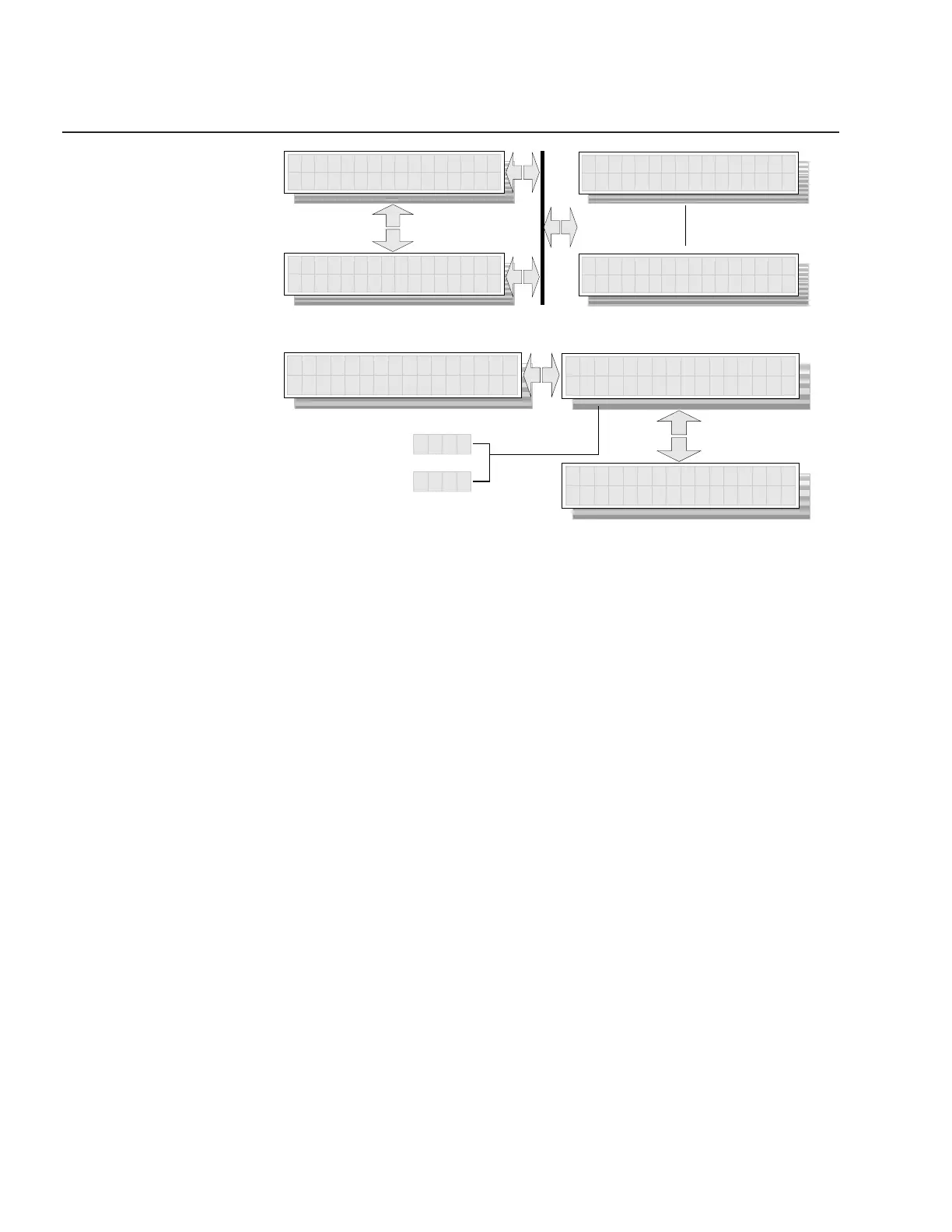

Fig. 16 - Recorded data sub menu view
5.2.6 Menu – Events
User can select Events with the right arrow key as shown in following fi gure 17 and
select any event 1…. 5 through the up/down arrow key. In Events, user can see the
trip values of the currents, binary input status for breaker open, binary input status
for breaker close, binary input status for reset, binary input status for remote trip
control, unit ready status, internal relay fault (IRF) status, phase protection trip status
and earth protection trip status which is shown in following fi gure. ‘Event 1’ will
always contain data for the most recent event and ‘Event 2’ previous trip event and
so on.
