Installation and commissioning
6.5 Relay wiring
The connection wiring to the relay should be made by using single strand wire or
stranded wire with the use of insulated crimp terminal to maintain the insulation
requirements. The wire with below indicated cross-section should be used for
wiring:
- 0.2 - 2.5 sq. mm single-core
- 0.2 - 2.5 sq. mm fi nely stranded
6.6 Relay mounting dimensions
The over all dimensions of the relay are as follows:

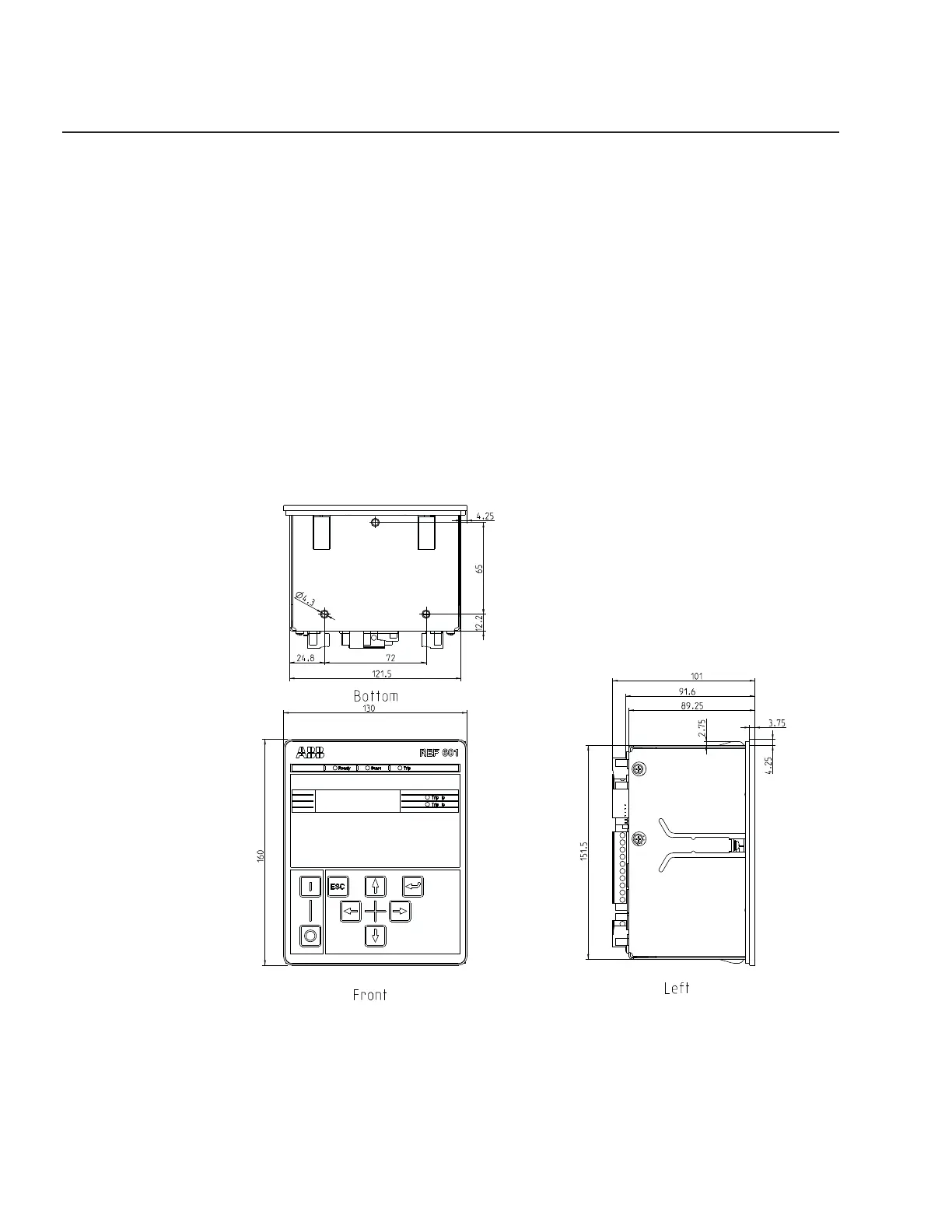

Fig. 39– Relay mounting dimensions with Flush (Panel) mounting
160
130
89,25
4,3
4,25
6512,2
121,5
24,8 72
3,75
2,75
151,5
4,25
91,6
101
Front
Left
Bottom
