Installation and commissioning
The relay also have breaker mounting version. The details of the same are indicated
in Figure 37:

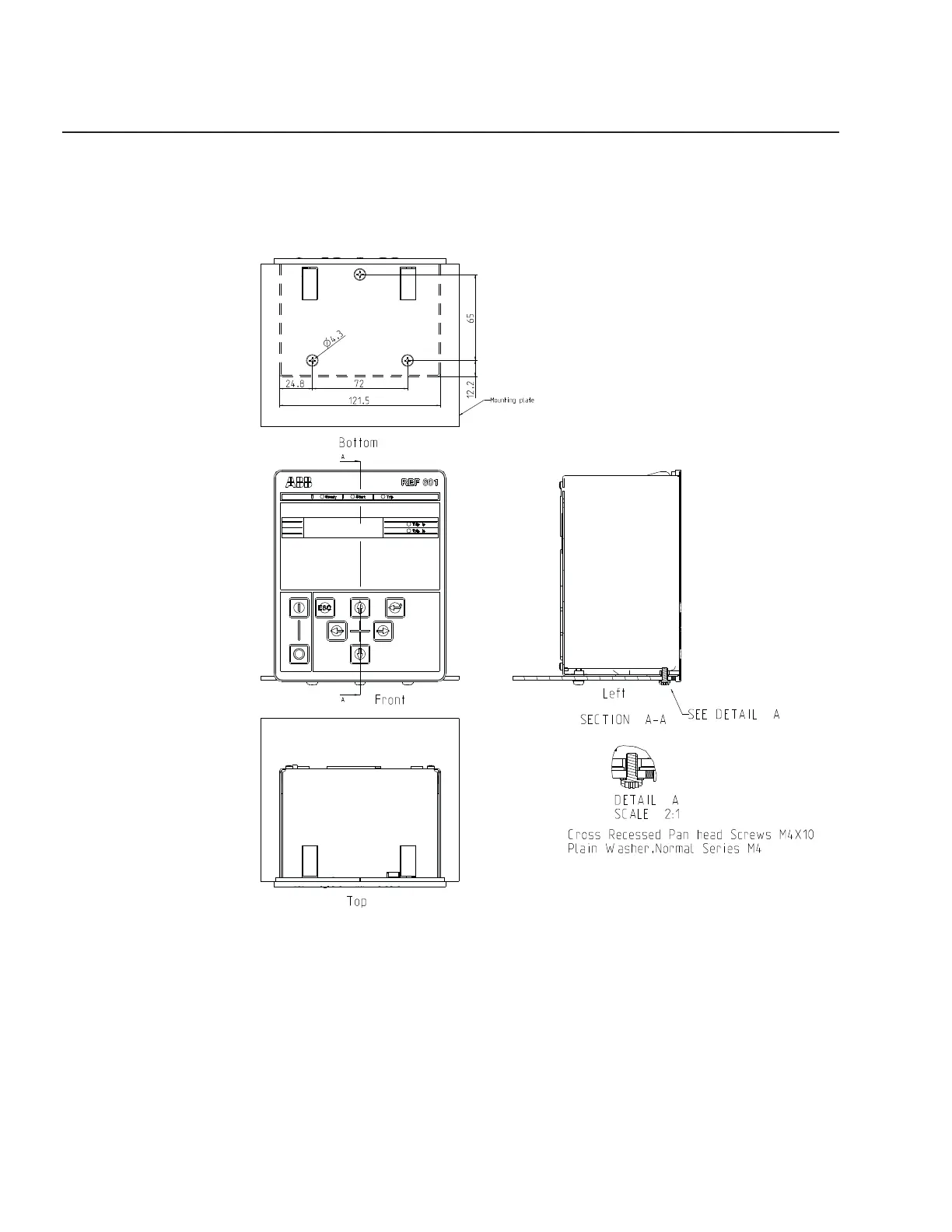

Fig. 40 – Relay mounting dimensions with Breaker mounting
A
A
4
,
3
121,5
24,8 72
6512,2
Bottom
Top
Cross Recessed Pan head Screws M4X10
Plain Washer,Normal Series M4
Front
Left
SECTION A-A
SEE DETAIL A
Mounting plate
DETAIL A
SCALE 2:1
