• Right-click the Plant Structure view, point to New and select Create
from Template.
• Right-click the Plant Structure view, point to New and select General
and select the element either IED Group or Substation.
2. On the View menu, select Object Types.
3. Select the needed elements and drag them into the plant structure.
GUID-EC9782C5-3D9D-40DC-B190-D3D6AAAAB3C2 V1 EN

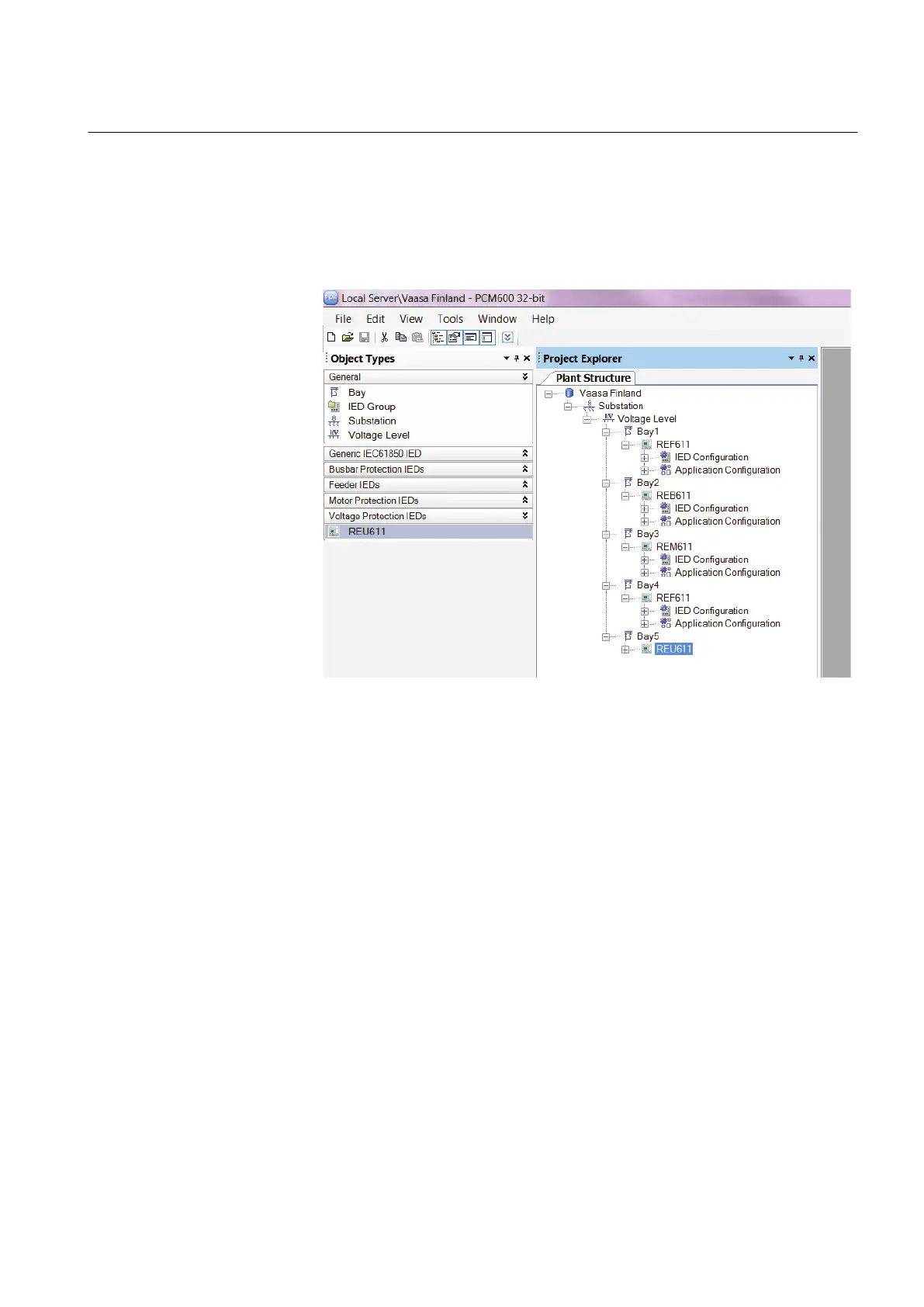

Figure 17: The start of a project with IEDs placed but not renamed
4. Rename each level in the structure by the names/identifications used in the grid.
• Right-click the level and select Rename.
• Rename the levels in the Object Properties view.
4.3 Inserting an IED
The context menu or the Object Types view shows the available IEDs that can be
inserted, on the bay level, into the plant structure according to the installed
connectivity package.
It is possible to do various tasks in the plant structure.
• Insert either offline or online IED
• Import a template IED that is available in the template library as a .pcmt file
• Import a preconfigured IED available as a .pcmi file
1MRS241255 B Section 4
Setting up a project
611 series 35
Engineering Manual
