Section 6 LHMI engineering
For information on LED operation modes supported by the protection
relay, see the technical manual.
6.1 HMI event filtering
HMI Event Filtering is a tool that helps in configuring visibility of events shown on the
LHMI and WHMI of the IED. This tool does not modify the actual events on the
protocol level, it only modifies the event visibility on the LHMI and WHMI.
The event tree view is used to modify the visibility of the events shown on the LHMI
and WHMI. Events in the tree view are structured in the same way as functions in the
PCM600 plant structure.
GUID-D670065B-7C5E-4D87-AB9A-C352E3F8BA07 V1 EN

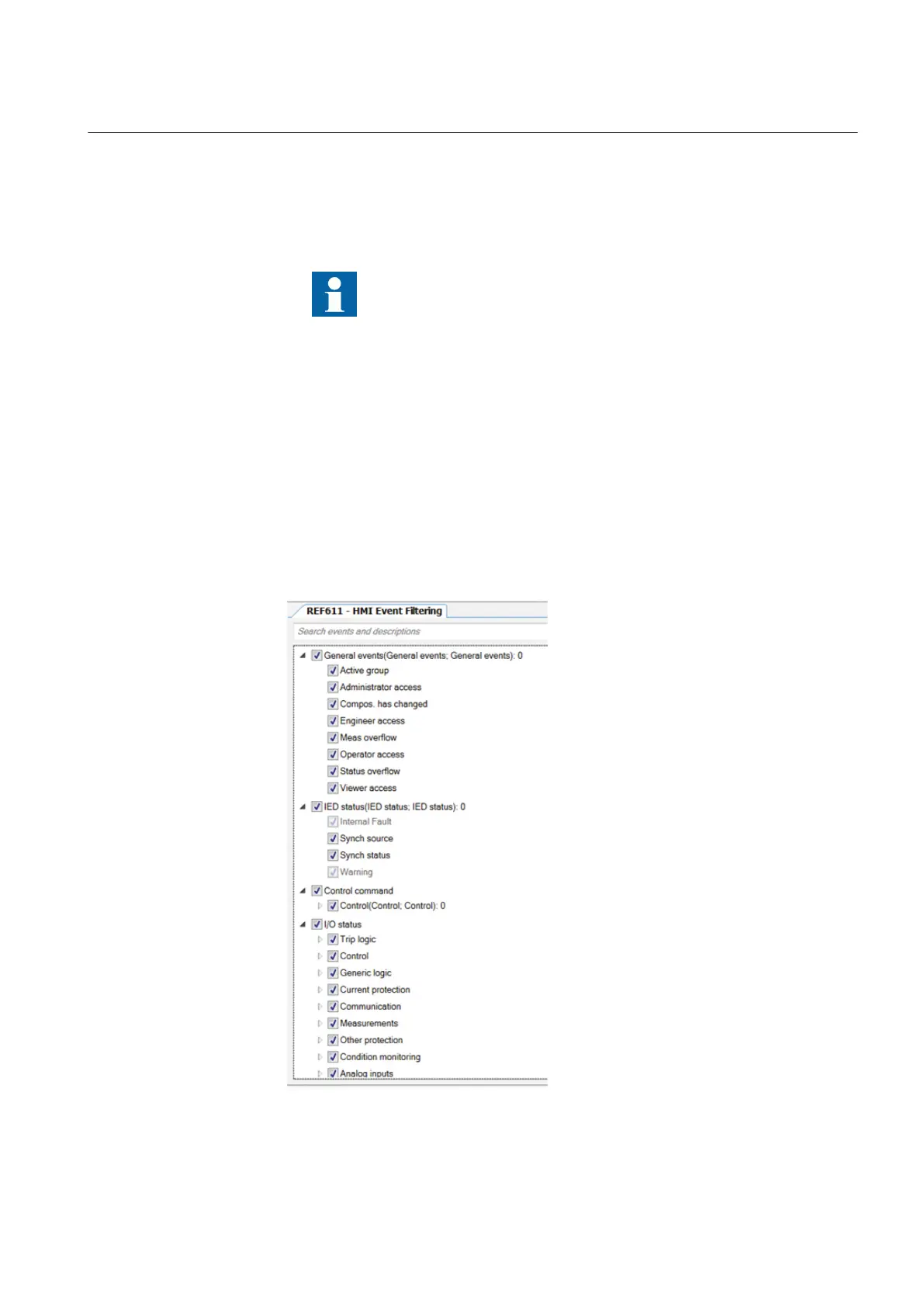

Figure 48: HMI event filtering interface
