GUID-7DB8B442-0120-4D7D-A5E6-3414E47C3445 V1 EN

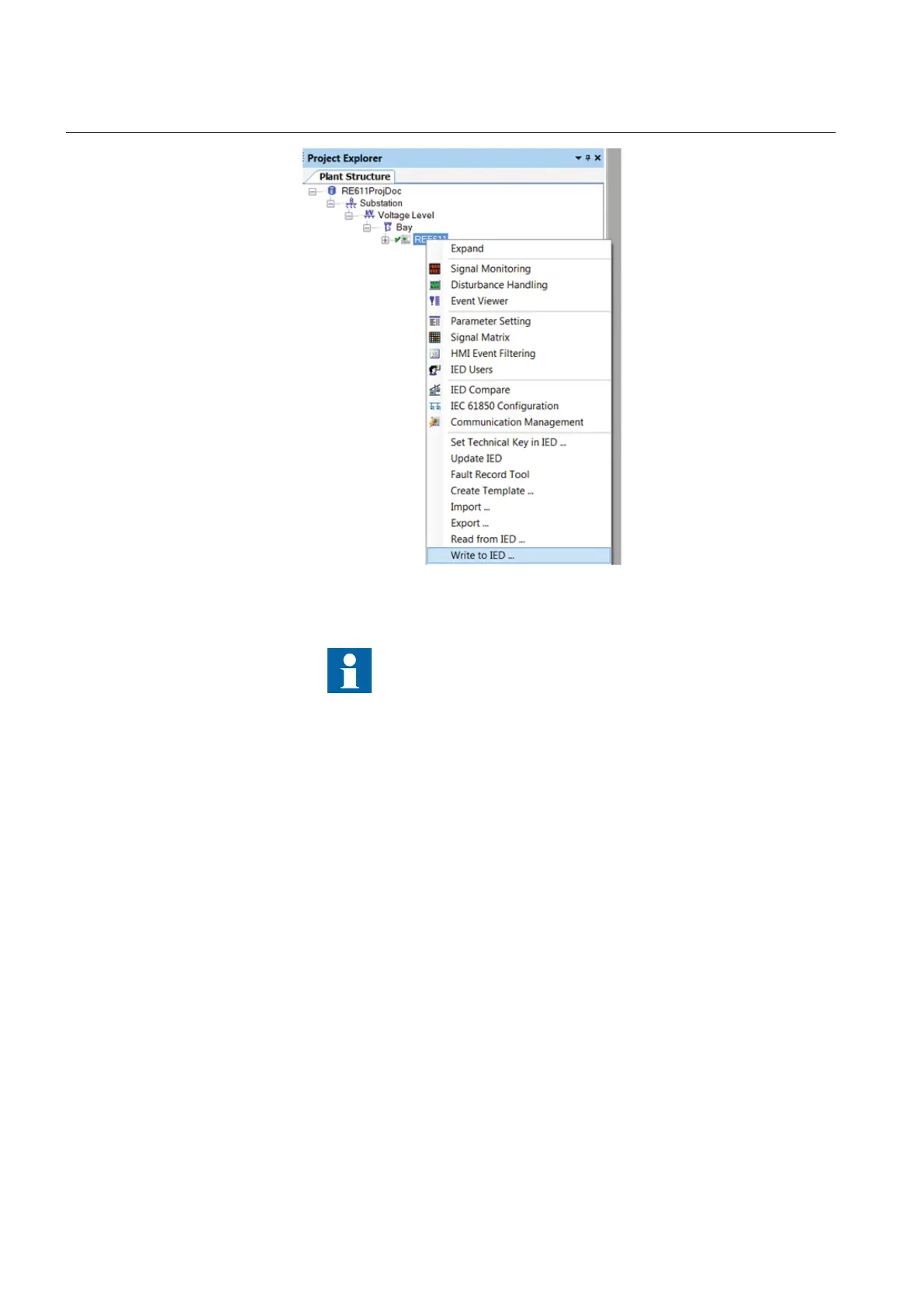

Figure 62: Common write menu
The engineered data is written to the IED when executing a
common Write to IED operation.
7.3.3.2 Importing ICD or CID files
1. Select an existing IED to import IEC 61850 files.
2. From the Files of type list, select the file type of IEC 61850 to be imported (ICD
or CID).
The SCL Import Option dialog box opens.
3. In the SCL Import Option dialog box, select how the file is to be handled during
the import.
Section 7 1MRS241255 B
IEC 61850 communication engineering
84 611 series
Engineering Manual
