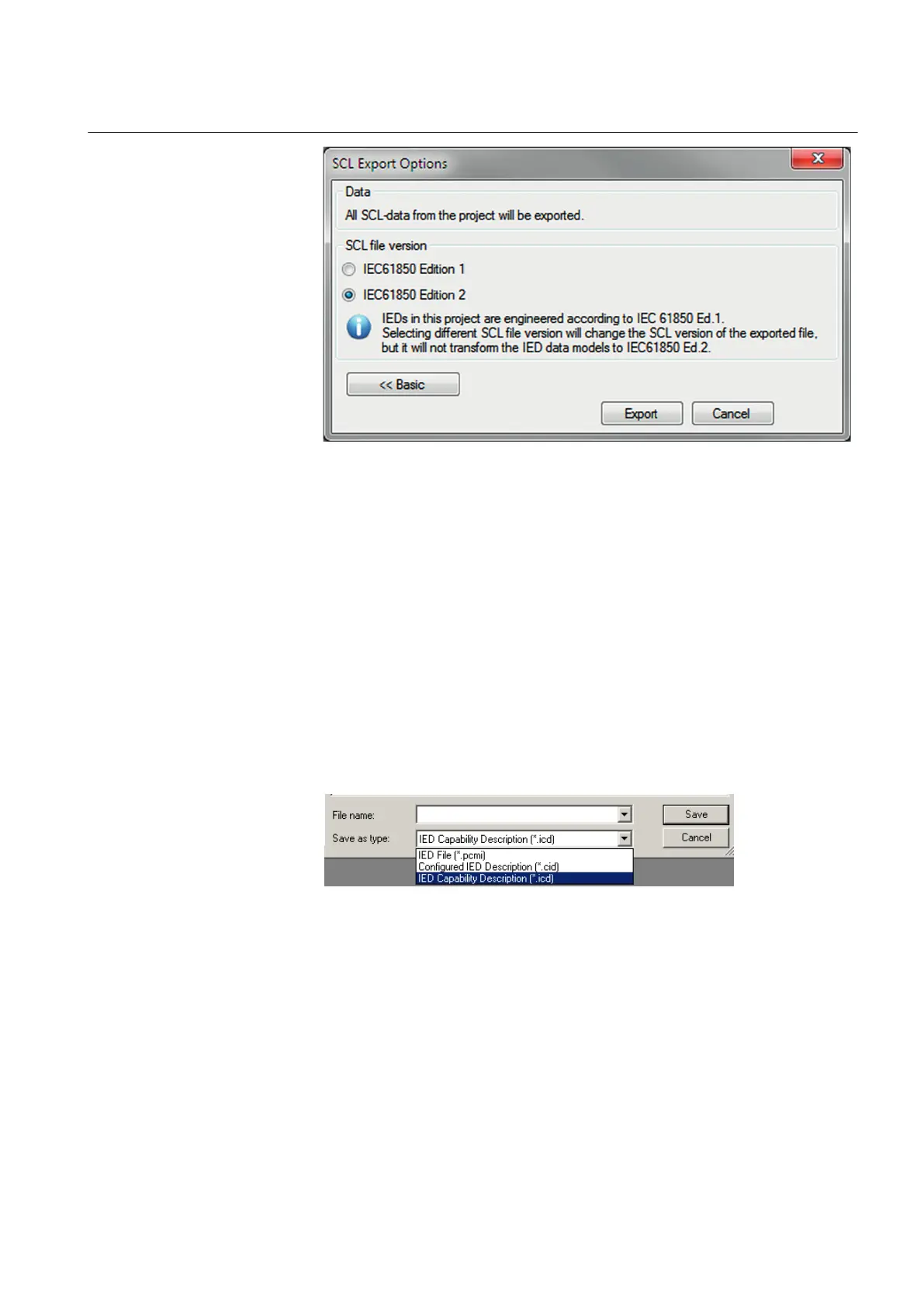

Figure 55: Export options of SCL
6. Click Export to generate the SCD file.
A progress window shows the ongoing export of the station.
7.3.1.2 Exporting ICD or CID files
1. Select the IED in the Plant Structure view.
2. Right-click the IED and select Export...
The Export dialog box opens.
3. From the Save as type list, select the type of file to export.
• Configured IED description (.cid) for the IEC 61850 structure as needed
for the IED at runtime
• IED capability description (.icd) for the IEC 61850 structure
GUID-41A96291-035E-475D-8B3D-2AF21C0EBE4D V1 EN
Figure 56: IEC 61850: export IED file type selection
4. Click Save.
The SCL Export Options dialog box opens.
5. Select the export options.
1MRS241255 B Section 7
IEC 61850 communication engineering
611 series 79
Engineering Manual
