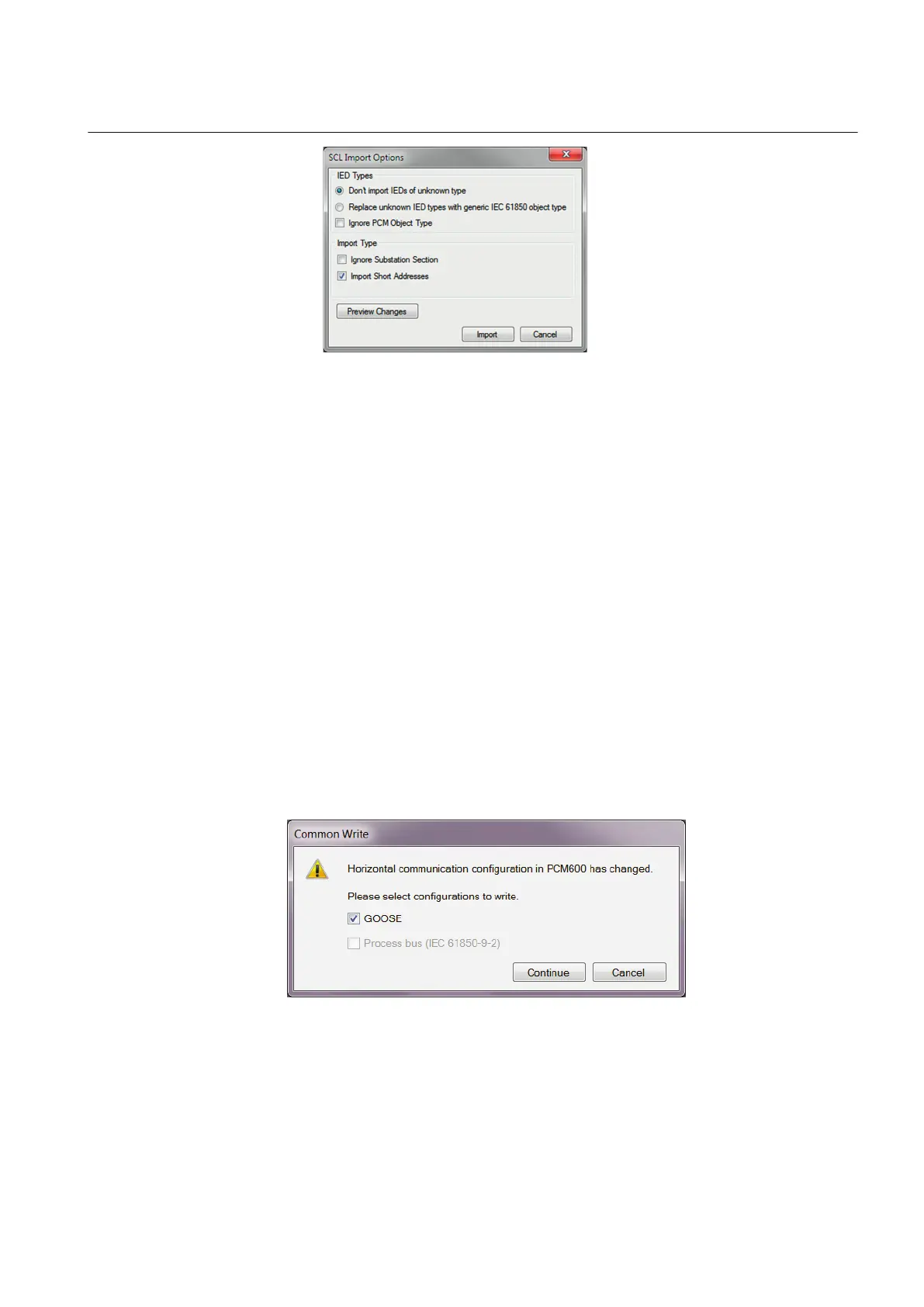

Figure 63: SCL Import Options
• Don't import protects the existing IEDs in case the SCD file does not
match the original configuration in PCM600.
• Replace unknown can be used when it is known that the file includes
additional IEDs that are needed. The IED of type “Generic IEC 61850
IED” is used to integrate these kinds of IEDs into, for example, the plant
structure.
• Ignore PCM Object Type updates the IED object(s) in PCM600 from the
IED type(s) in the SCD file, discarding whether or not the IED type(s) in
the SCD file matches the IED object(s) in PM600.
• Ignore Substation Section does not import the SSD file part of the SCD
file.
4. Click Import when the definition has been completed.
A progress view displays the importing procedure.
7.3.4 Writing communication configuration to the IED
IEC 61850 communication depends on the proper communication configuration in all
IEDs that communicate via IEC 61850.
GUID-198A1DD9-0997-4074-BF8D-EC2BEC163D96 V1 EN
Figure 64: Updating the communication configuration in the IED with the
configuration made in PCM600
It is possible to make a configuration change in one IED, without affecting the
horizontal communication engineering between IEDs. When a changed configuration
