5.4.2 IED Compare tool interface
The comparison report shows differences in the configuration of two IEDs. Hardware,
application, display, GOOSE and parameter configuration differences are grouped
and listed under the corresponding headings.
GUID-D6257BC0-9A17-407C-BE27-19DFC7A7C7B4 V1 EN

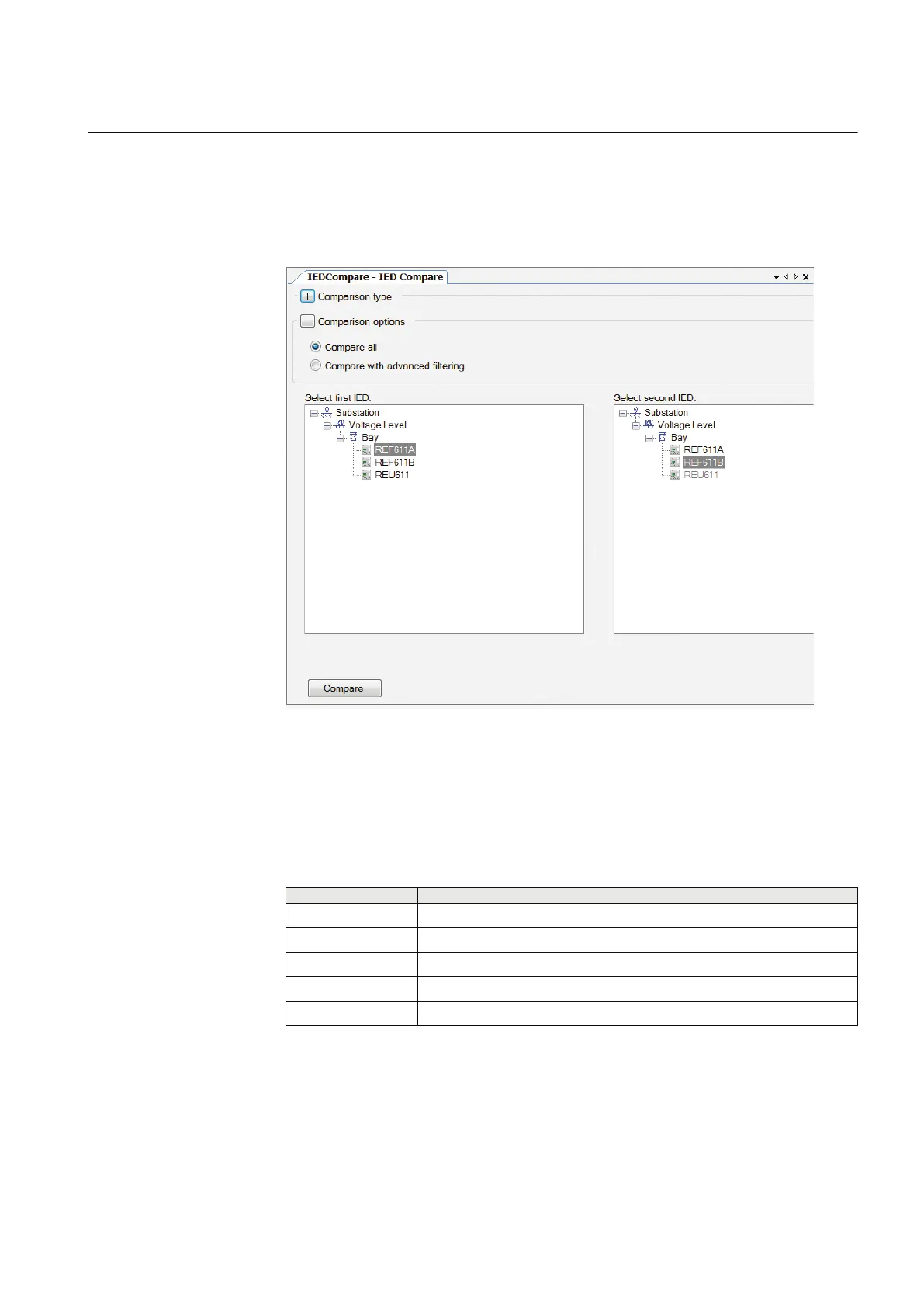

Figure 47: Compare options
Each configuration group can be expanded or collapsed by clicking the plus (+) or
minus (-) button next to it in the result grid.
The reports must be read from left to right row-wise.
Table 6: Acronyms used in a report
Acronym
Description
DA Data attribute
DO Data object
IED Intelligent electronic device
LN Logical node
SIG Signal
1MRS241255 B Section 5
Protection and control engineering
611 series 65
Engineering Manual
