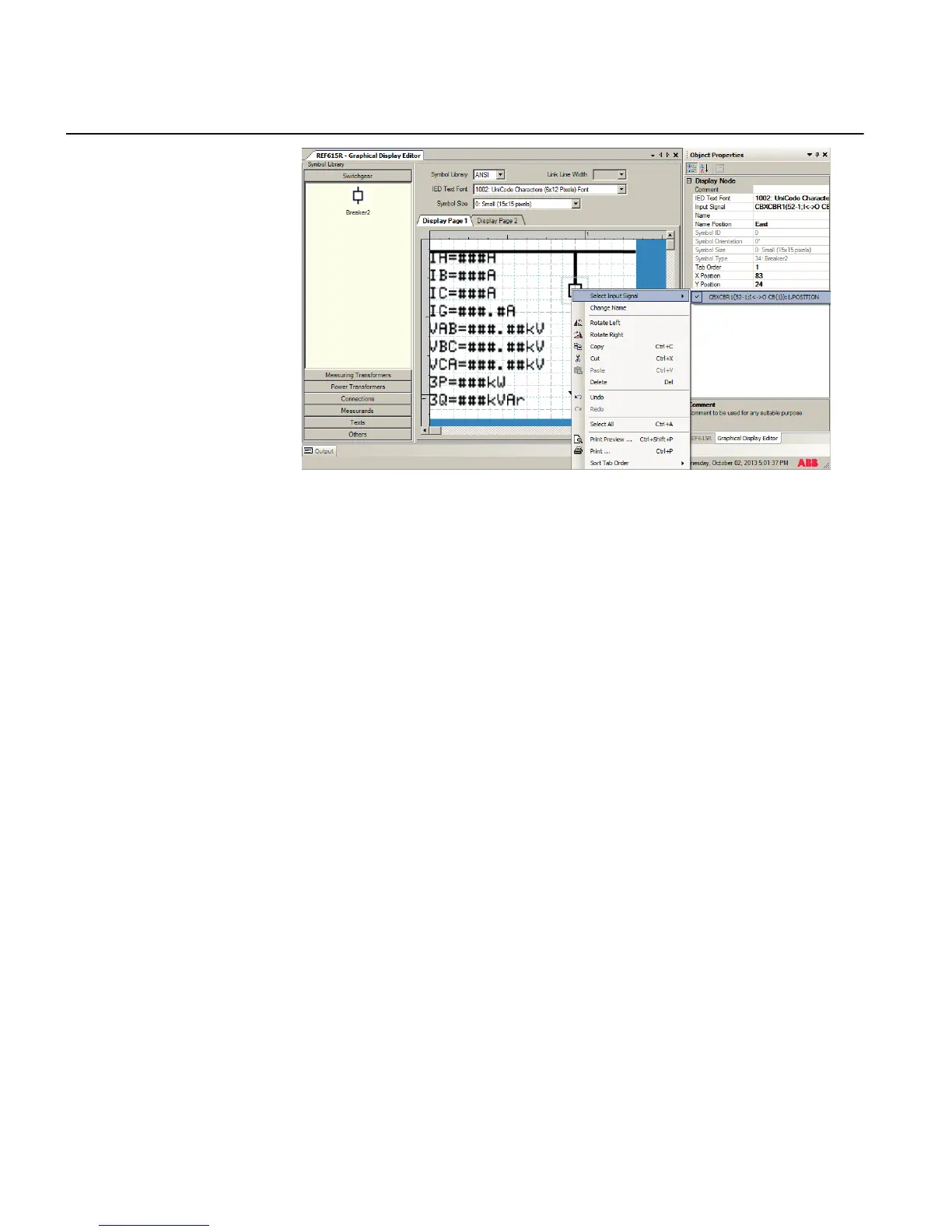

Figure 58: Graphical Display Editor: input signal selection
The ordering number in the selection window of the process objects corresponds
to the number given in the Parameter Setting tool tree and to the application
function block in the Application Configuration tool.
Only the apparatus and measurements that are configured in the application
configuration program are displayed.
