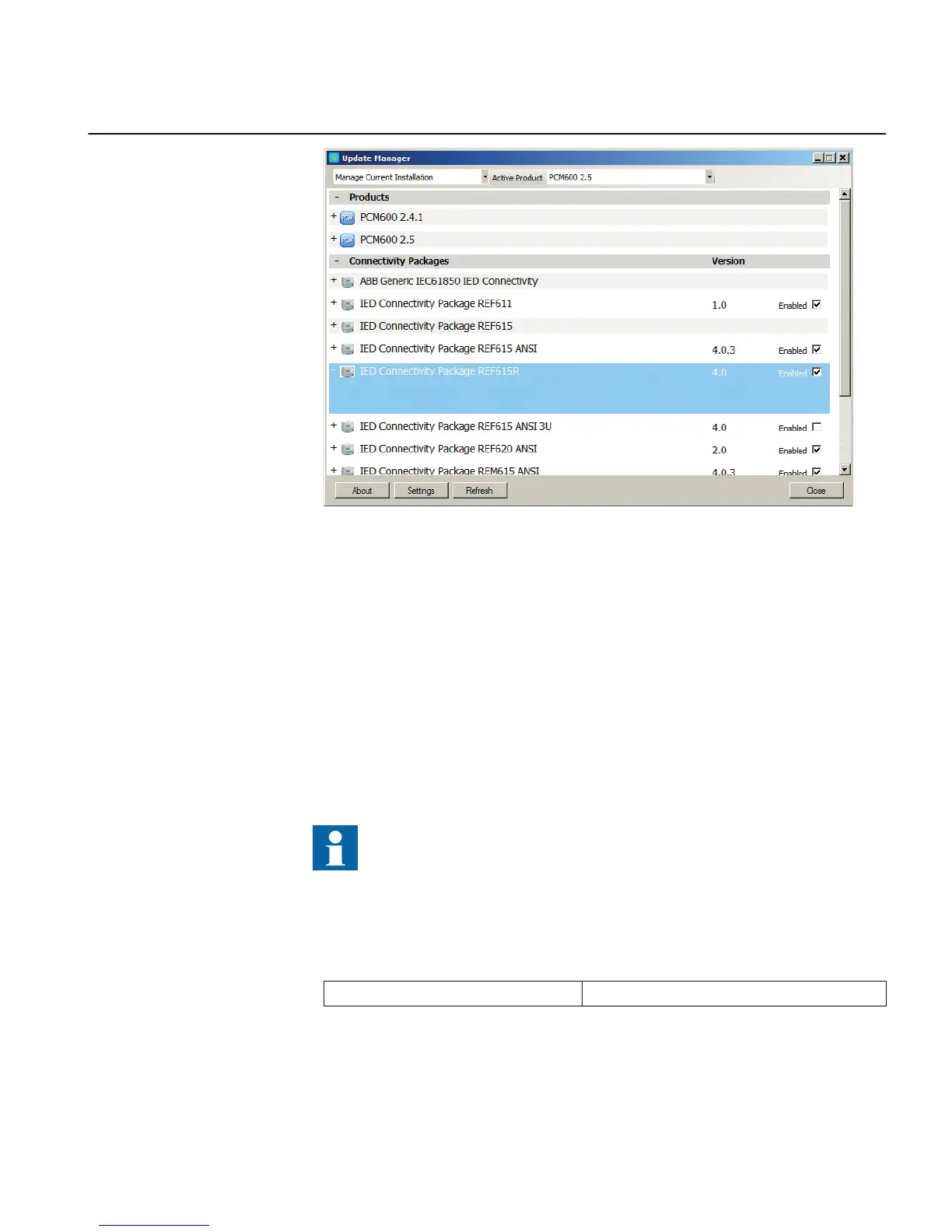

Figure 6: Activating the connectivity package
PCM600 recognizes the installed connectivity package(s) during startup and the
corresponding IED types are available in PCM600 when starting a new project.
4.3 Setting up IP addresses
The IP address and the corresponding subnet mask can be set via LHMI for the rear
Ethernet interface in the IED. Each Ethernet interface has a default factory IP address
when the complete IED is delivered. The default factory IP address is not given when
an additional Ethernet interface is installed or when an interface is replaced.
The IED front port IP address is fixed to 192.168.0.254 and it cannot be
modified.
1. Set the IP address for the IED rear port and the corresponding subnet mask via
the LHMI path: Configuration/Communication/Ethernet/Rear port.
Default IP address for the IED rear port
Corresponding subnet mask
1MRS240044-IB A Section 4
Setting up a project
REF615R 29
Engineering Manual
