GUID-27AEBA60-1BBD-4EC1-BAE2-2AC4209C5CD4 V1 EN

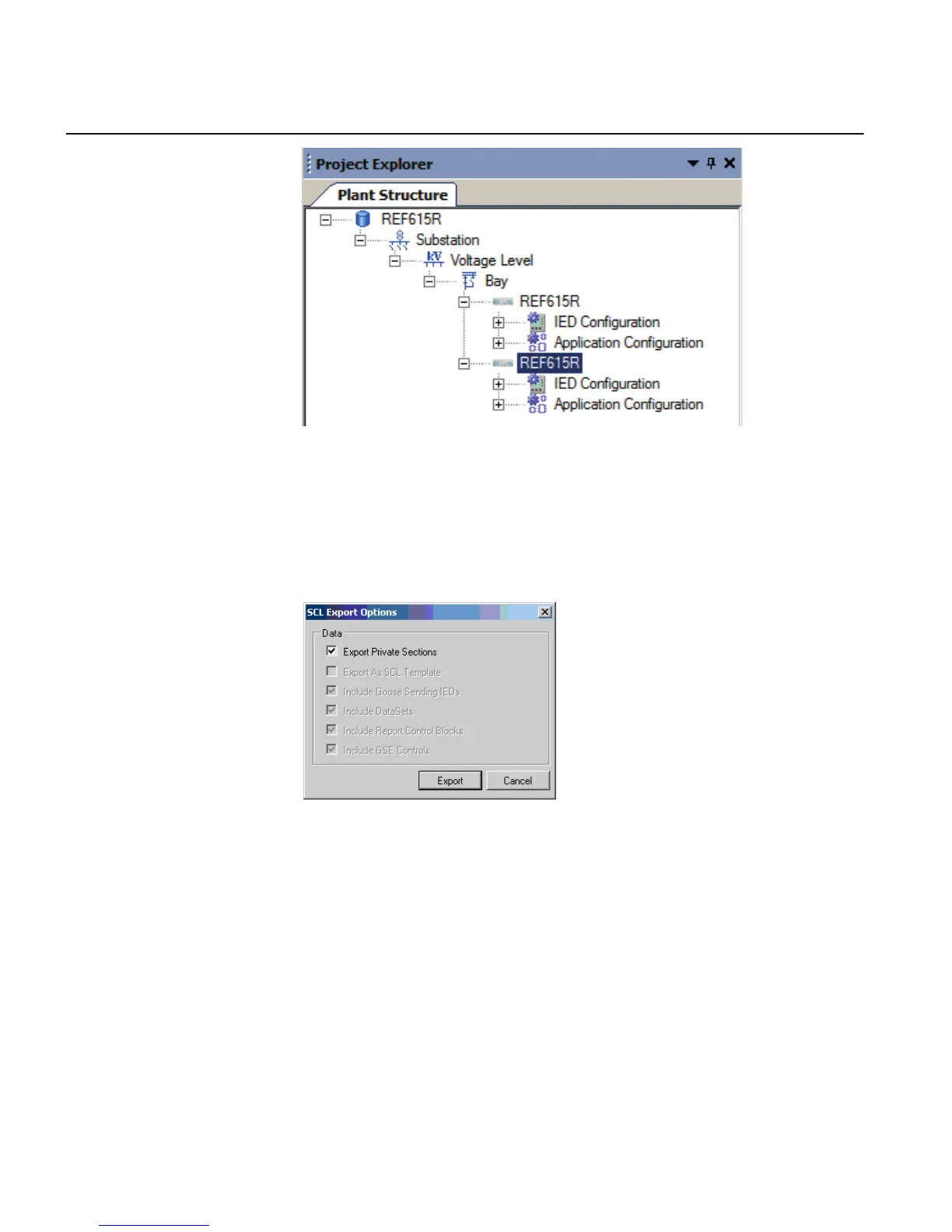

Figure 63: IEC 61850: selecting the station
2. Right-click the station and select Export.
3. From the open standard Windows dialog box, select the location to store the file
and name it.
4. Click Save.
The SCL Export Options dialog box opens.
IEC09000627 V1 EN
Figure 64: IEC 61850: selecting the SCL export option
5. Select the Export Private Sections.
6. Click Export to export the private sections to the SCD file.
A progress window shows the ongoing export of the station.
7.3.1.2 Exporting ICD or CID files
1. Select the IED in the Plant Structure view.
2. Right-click the IED and select Export...
Section 7 1MRS240044-IB A
IEC 61850 communication engineering
104 REF615R
Engineering Manual
