GUID-4606198B-521D-4804-BBC8-8E041E144026 V1 EN

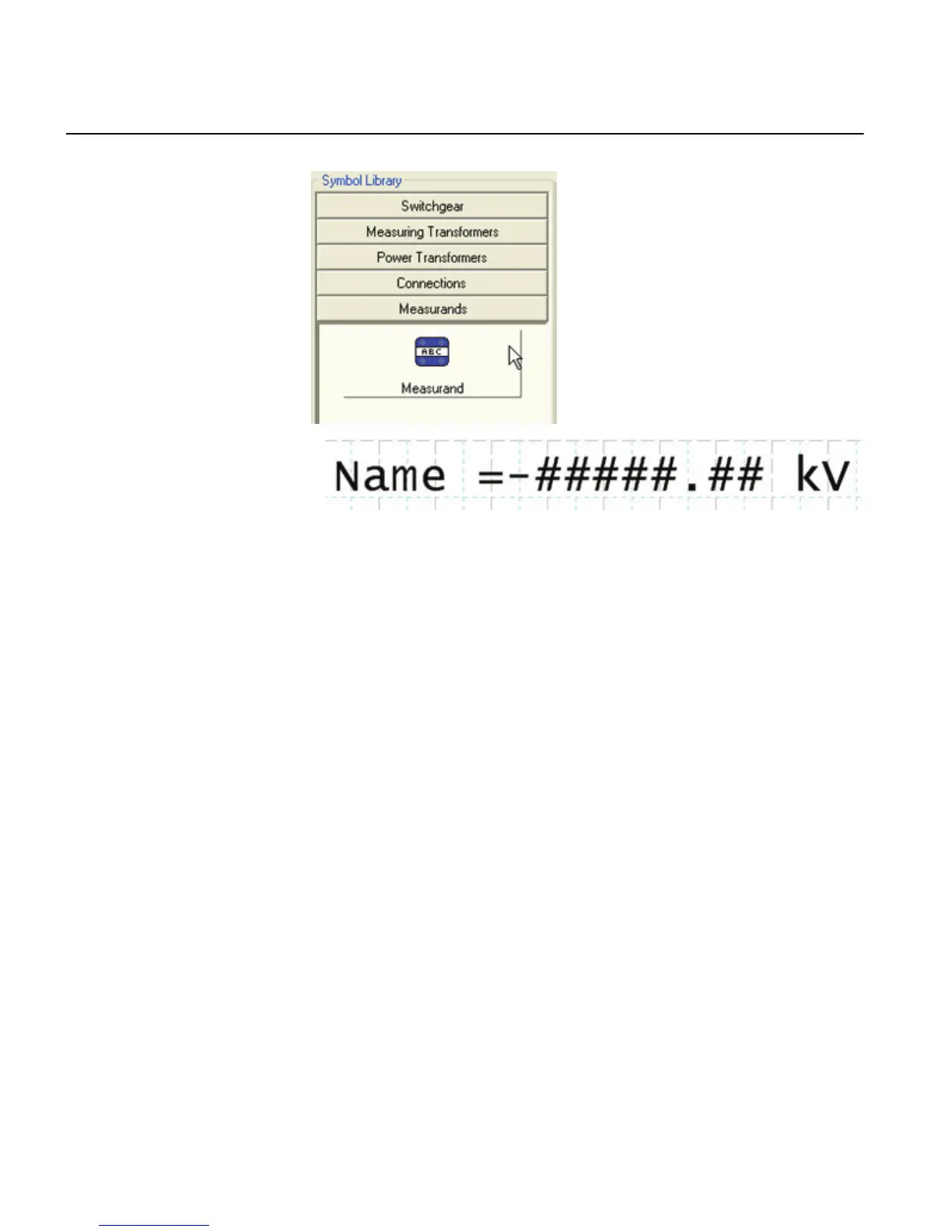

Figure 53: Adding a measurand object to an LHMI view
2. In the Objects Properties view, edit the name, unit and the number of decimals.
Unit text specifies the default text used for the measurement's unit. If Unit text is
not empty, the unit in the IED is updated dynamically based on the signal it is
connected to. If the Unit text is empty in the Graphical Display Editor, no unit is
shown. The Scale factor parameter is not used.
6.1.1.9 Adding a busbar
1. Add at least two Busbar Junctions.
2. Add links between the Busbar Junctions.
Section 6 1MRS240044-IB A
LHMI engineering
90 REF615R
