GUID-2C50CFC5-0C7E-495C-B9C9-4EE66C3E5D23 V1 EN

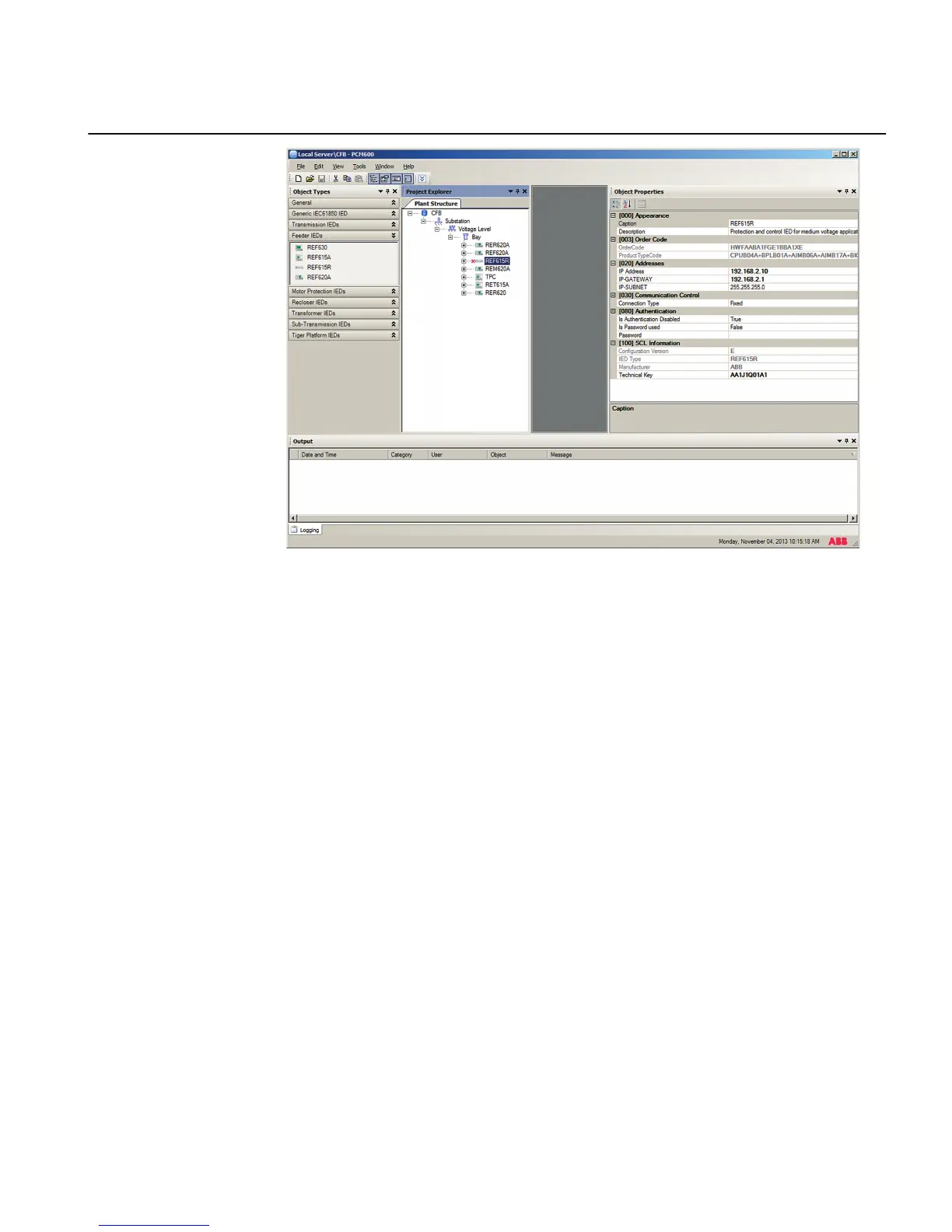

Figure 24: PCM600: IEC 61850 signal designation concept
The created technical key for the full path name of the IED would be: AA1J1Q01A1.
• AA1 = substation in the project
• J1 = voltage level from 20 to 30 kV
• Q01 = the first bay in the voltage level
• A1 = first IED in the bay Q01
4.8.2 Setting the technical key
1. In the Plant Structure view, right-click the IED and select Set Technical Key in
IED.
2. From the list that opens, select Set Technical Key in IED.
1MRS240044-IB A Section 4
Setting up a project
REF615R 49
Engineering Manual
