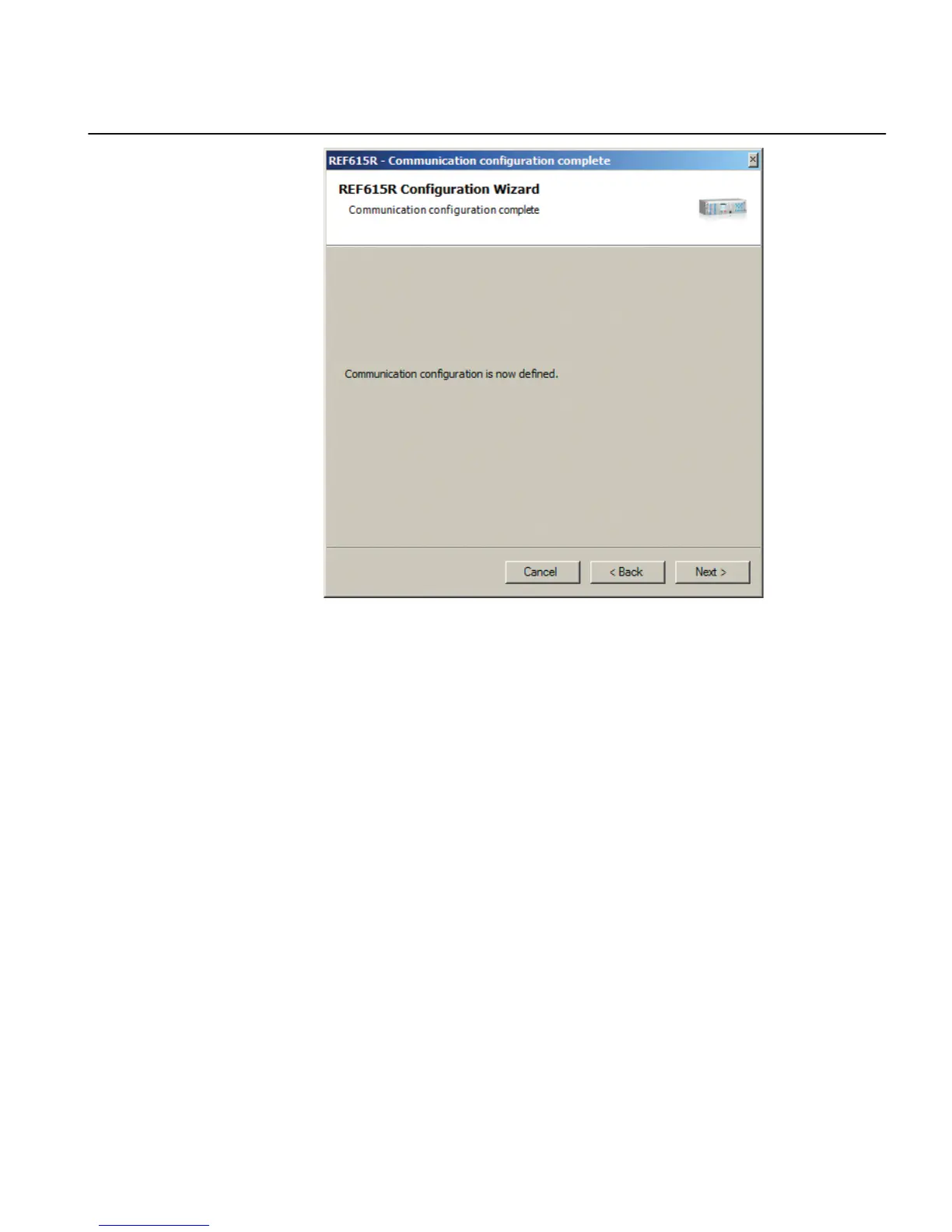

GUID-ACFFBD66-6F2C-4761-B158-43165EF7DB92 V1 EN
Figure 14:
Communication configuration defined
5.
Click
Next
in the
Configuration Wizard
.
6.
Click
Scan
to scan/read the order code of the IED.
The
Order code detection page
is displayed.
1MRS240044-IB A
Section 4
Setting up a project
REF615R
37
Engineering Manual
44
46
Table of Contents
Default Chapter
9
Table of Contents
9
Section 1 Introduction
13
This Manual
13
Intended Audience
13
Product Documentation
13
Product Documentation Set
13
Document Revision History
14
Related Documentation
14
Symbols and Conventions
15
Symbols
15
Document Conventions
15
Functions, Codes and Symbols
16
Section 2 IED Engineering Process
21
Monitoring and Control System Structure
24
Standard Configuration Concept
25
Workflow
27
Section 3 PCM600 Tool
31
Connectivity Packages
32
PCM600 and IED Connectivity Package Version
33
PCM600 Projects
33
Communication between PCM600 and the IED
34
Section 4 Setting up a Project
35
Installing Connectivity Packages
35
Installing Connectivity Packages by Using the Connectivity Package Installer
35
Installing Connectivity Packages by Using the Update Manager
35
Activating Connectivity Packages
36
Setting up IP Addresses
37
Creating a New Project
38
Building the Plant Structure
39
Inserting an IED
40
Inserting an IED in Online Mode
41
Inserting an IED in Offline Mode
48
Inserting an IED from the Template Directory
49
Inserting an IED by Importing a .Pcmi File
51
Setting the IED IP Address in a Project
52
Technical Key
54
IEC 61850 Naming Conventions to Identify an IED
55
Setting the Technical Key
57
COM600 Project
60
Importing an IED in a COM600 Project
60
Using the Web HMI
64
IED User Management
65
Section 5 Protection and Control Engineering
69
Application Configuration Tool
69
Function Blocks
70
Signals and Signal Management
71
Function Block Execution Parameters
72
Execution Order and Feedback Loops
73
Configuration Parameters
74
Connections and Variables
74
Hardware Channels
75
Validation
76
Validation When Creating an Application Configuration
76
Validation on Demand
77
Validation When Writing to the IED
78
Parameter Setting Tool
78
Configuration Parameter
79
Setting Parameter
79
Setting Group
79
IED Parameter Import and Export
79
IED Parameter Organization
80
Signal Matrix Tool
80
Load Profile Tool
83
Opening and Closing Load Profile Tool
83
Load Profile Tool User Interface
86
Information Fields
87
Fault Record Tool
87
Opening and Closing Fault Record Tool
87
Fault Record Tool Interface
89
Section 6 LHMI Engineering
91
Single-Line Diagram Engineering
91
Diagrams in Graphical Display Editor
91
Display Window and Sequence Order
92
Symbol Library
93
Supported Single-Line Diagram Symbols
93
HMI Display Raster Layout and Text Font Selection
95
Text Handling
95
Adding Static Text
96
Adding Select Buttons
96
Adding a Measurand
97
Adding a Busbar
98
Adding Symbols into a Display Page
99
Drawing Lines to Create Links
100
Bay Configuration Engineering
101
Creating a Complete HMI Display Page
102
Linking Process Objects
103
Section 7 IEC 61850 Communication Engineering
107
IEC 61850 Protocol References and Pre-Conditions
107
IEC 61850 Interface
107
IEC 61850 Interface in the IED
108
GOOSE Data Exchange
108
Function View for IEC 61850 in PCM600
109
Station Configuration Description File Types
110
IEC 61850 Engineering Process
110
Exporting SCL Files from PCM600
111
Exporting SCD Files
111
Exporting ICD or CID Files
112
Engineering Vertical and Horizontal Communication
113
Importing SCL Files to PCM600
115
Importing SCD Files
115
Importing ICD or CID Files
118
Writing Communication Configuration to the IED
118
Section 8 Glossary
121
