GUID-BD501885-DADA-436E-AFD3-1A8B450CB7FF V1 EN

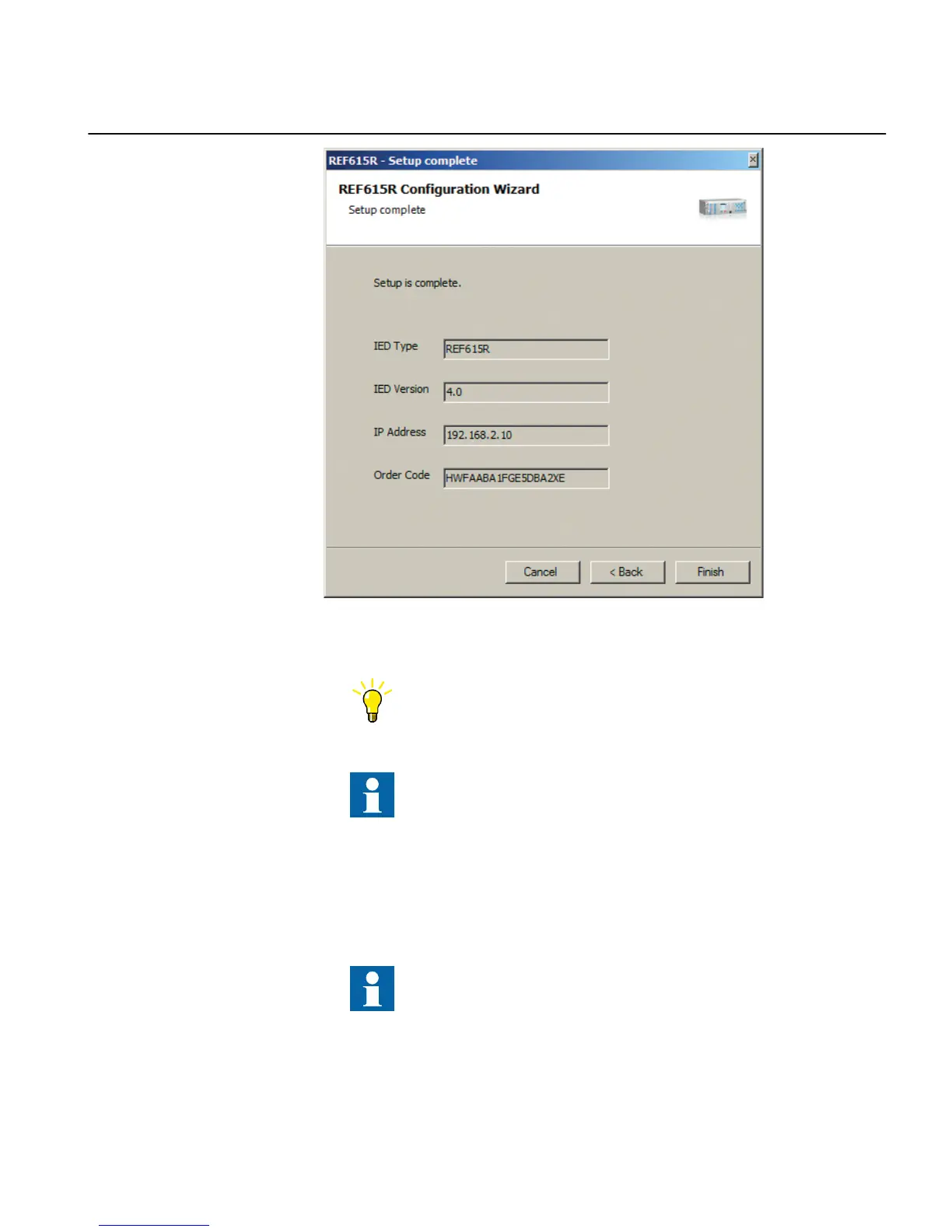

Figure 16: PCM600: IED setup complete
To cancel the insertion, click Cancel.
If an error is found on the Setup Complete Page, it is not
possible to go back and make modifications. If an error is
detected, cancel the insertion by clicking Cancel and insert the
IED again.
8. Click Finish to confirm the configuration and conduct the insertion.
9. From the Plant structure view, check that PCM600 has turned online the IED
that was inserted to the bay level.
You cannot scan data from the IED or proceed further if the IED
is not online or if the IP address is not correct.
1MRS240044-IB A Section 4
Setting up a project
REF615R 39
Engineering Manual
