GUID-D9D560B5-6BD7-472C-84AC-367D77711557 V1 EN

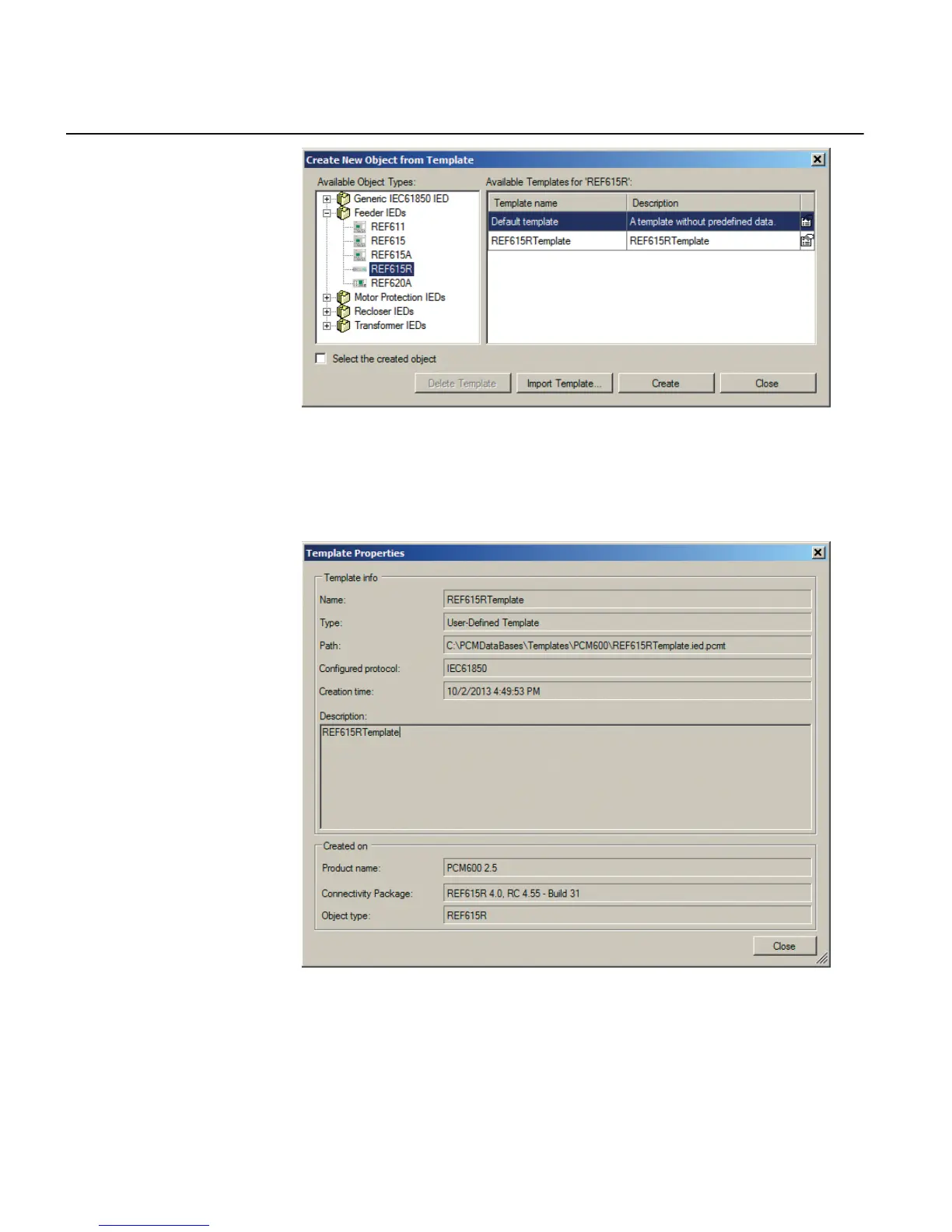

Figure 18: PCM600: selecting an IED from the template library
2. Select the IED from the list of available IEDs.
3. Click the icon on the right column in the list of available templates.
The Template Properties dialog box opens.
GUID-0AC6C838-914E-487E-9538-97E340ADD242 V1 EN
Figure 19: PCM600: template information
4. Check and verify the template information and click Close to close the dialog box.
Section 4 1MRS240044-IB A
Setting up a project
42 REF615R
Engineering Manual
